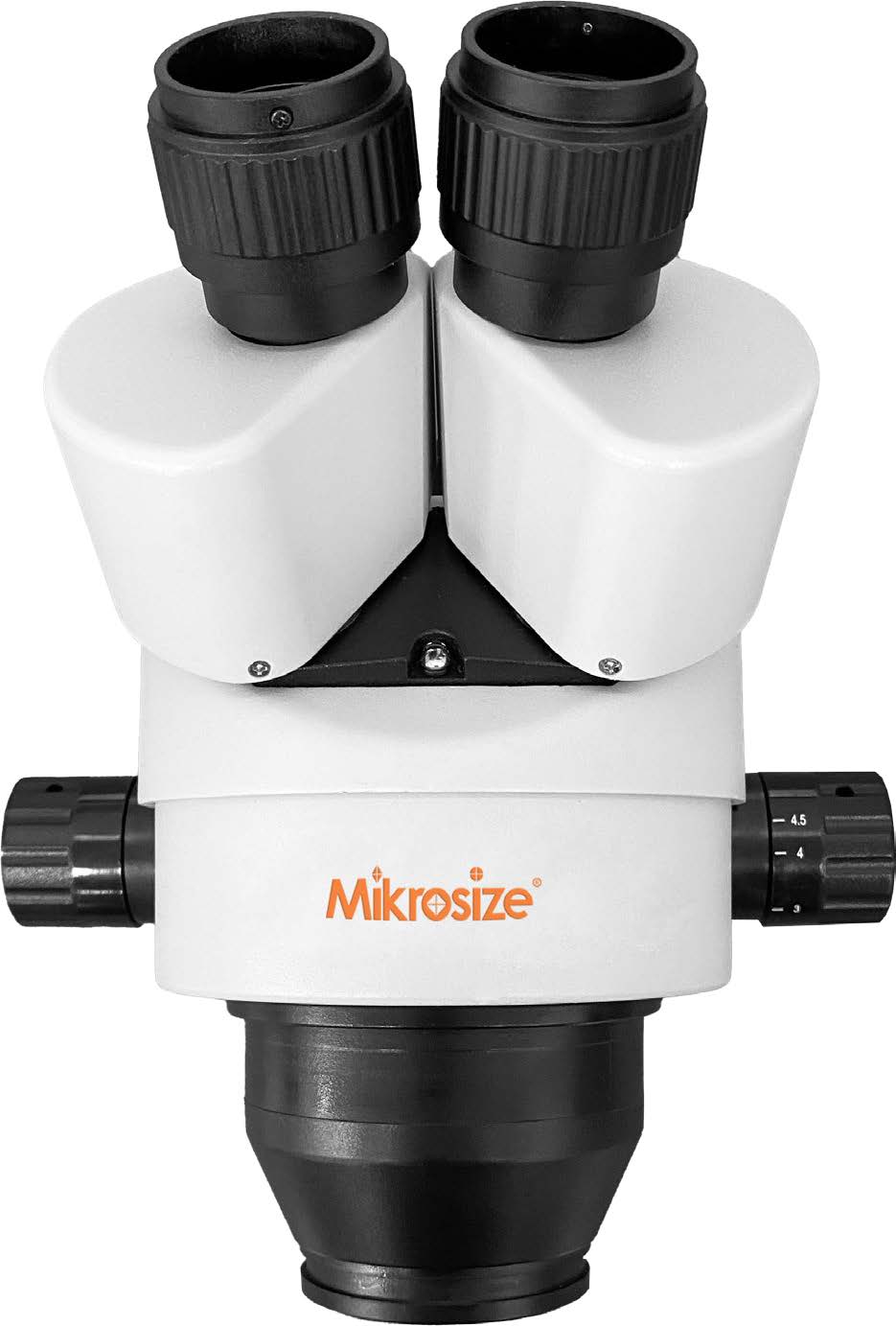

iStereo-165D Long Arm Stereo Microscope(Double Rod)

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(1)

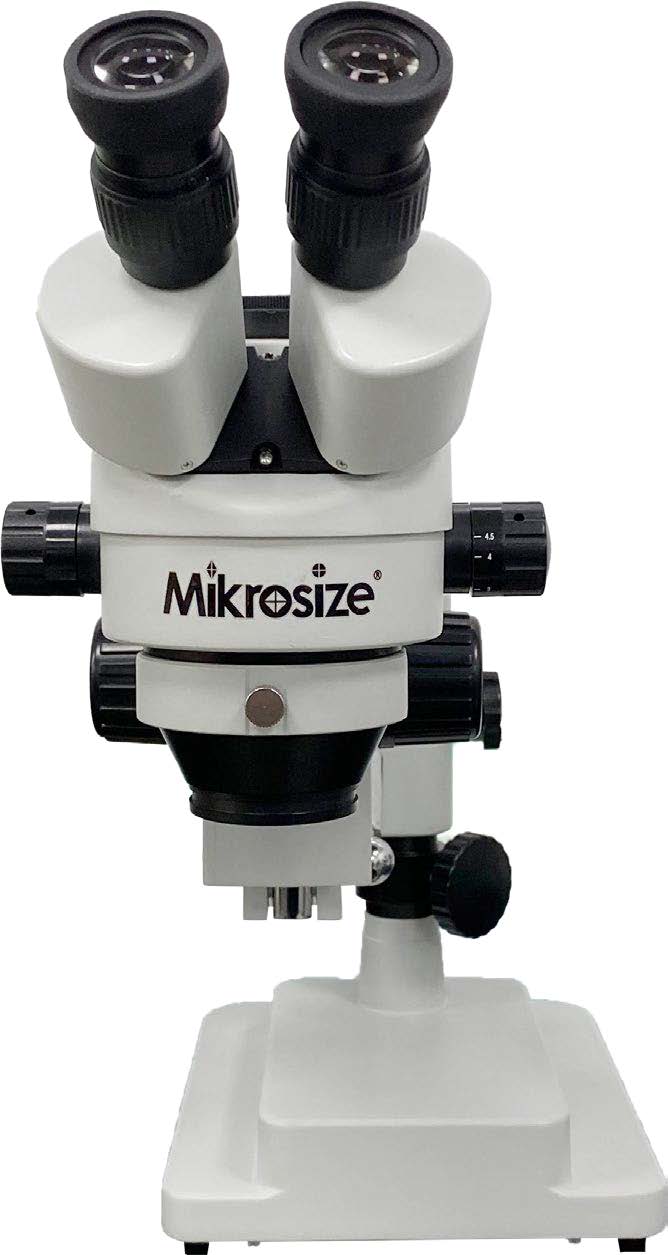

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(2)
iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(3)

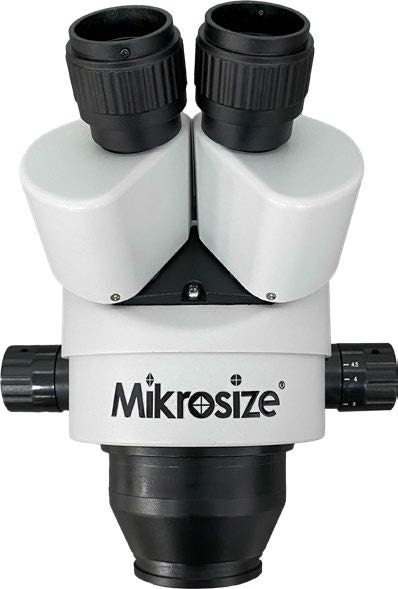

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(4)

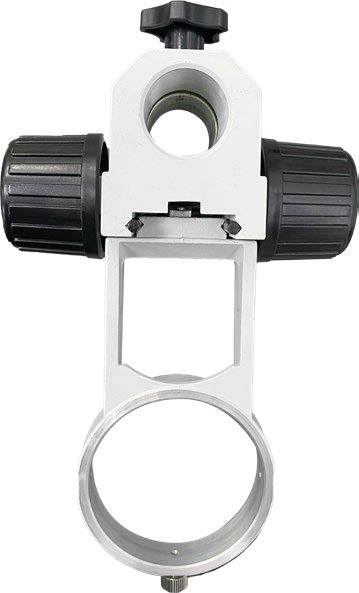

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(5)

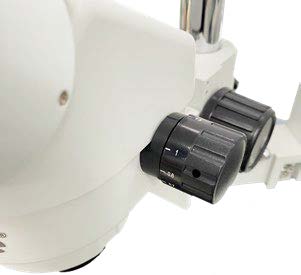

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(6)
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6

Product Features & Applications

Product Feature:

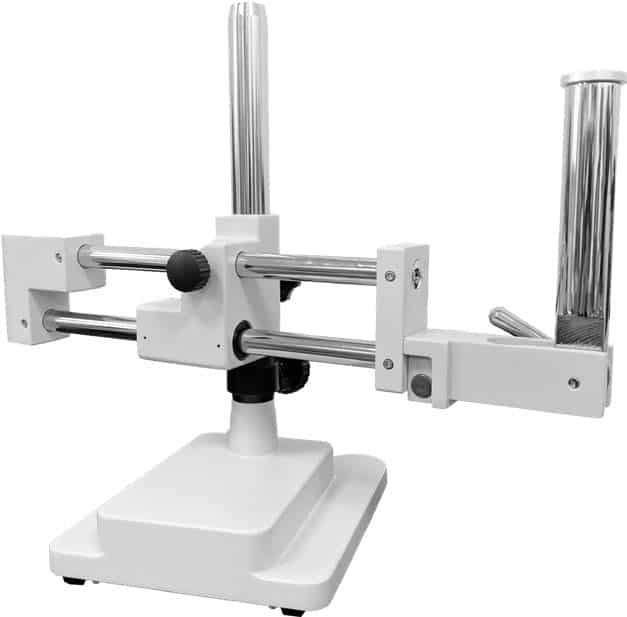

  • Flexible bracket design: double-rod long arm structure, flexible adjustment in X and Y directions, wide operating range, suitable for a variety of complex observation environments;
  • Excellent optical effect: presents clear upright three-dimensional images with strong stereoscopic effect, one-time focusing and continuous zooming, large field of view and depth of focus, and can clearly observe all levels of objects;
  • Convenient operation function: The binocular tube can be rotated 360° and positioned arbitrarily, and the long working distance facilitates the operation of large objects;
  • Rich accessory configuration: different eyepieces, objective lenses and various illumination systems can be selected to meet the diverse observation needs in biology, industry, teaching and other fields;
  • Can be connected to an external camera to observe on the computer screen;
  • Module and combination series design to expand the scope of application.

Product Application:

  • Dual-rod long-arm stereo microscopes are widely used in the biomedical field and can assist in anatomical research, cell culture monitoring and pathological diagnosis;
  • It plays a significant role in industrial manufacturing and testing, and can detect electronic components, precision machining and material surfaces to ensure product quality;
  • Can be used for multidisciplinary experimental teaching and vocational skills training
  • It has been applied in other fields such as agricultural research , jewelry identification,observing plant seed structure and detecting gemstone characteristics etc.

Technical Specifications

Eyepiece

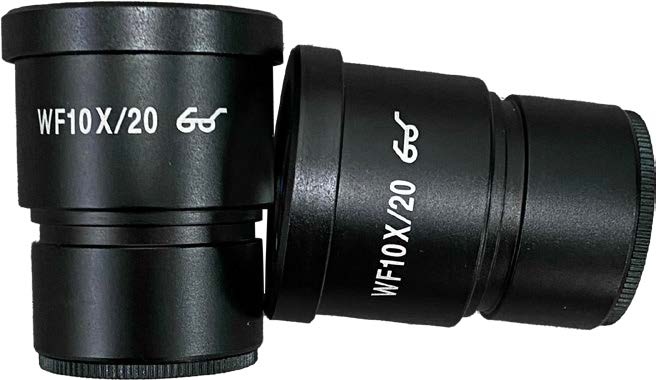

Standard configuration: 10X/20mm, large field of view, wide angle, high eye point

Optional Eyepiece

WF10/20mm,WF15/15mm,WF20/10mm,WF25/9mm,WF30/8mm

Observation head

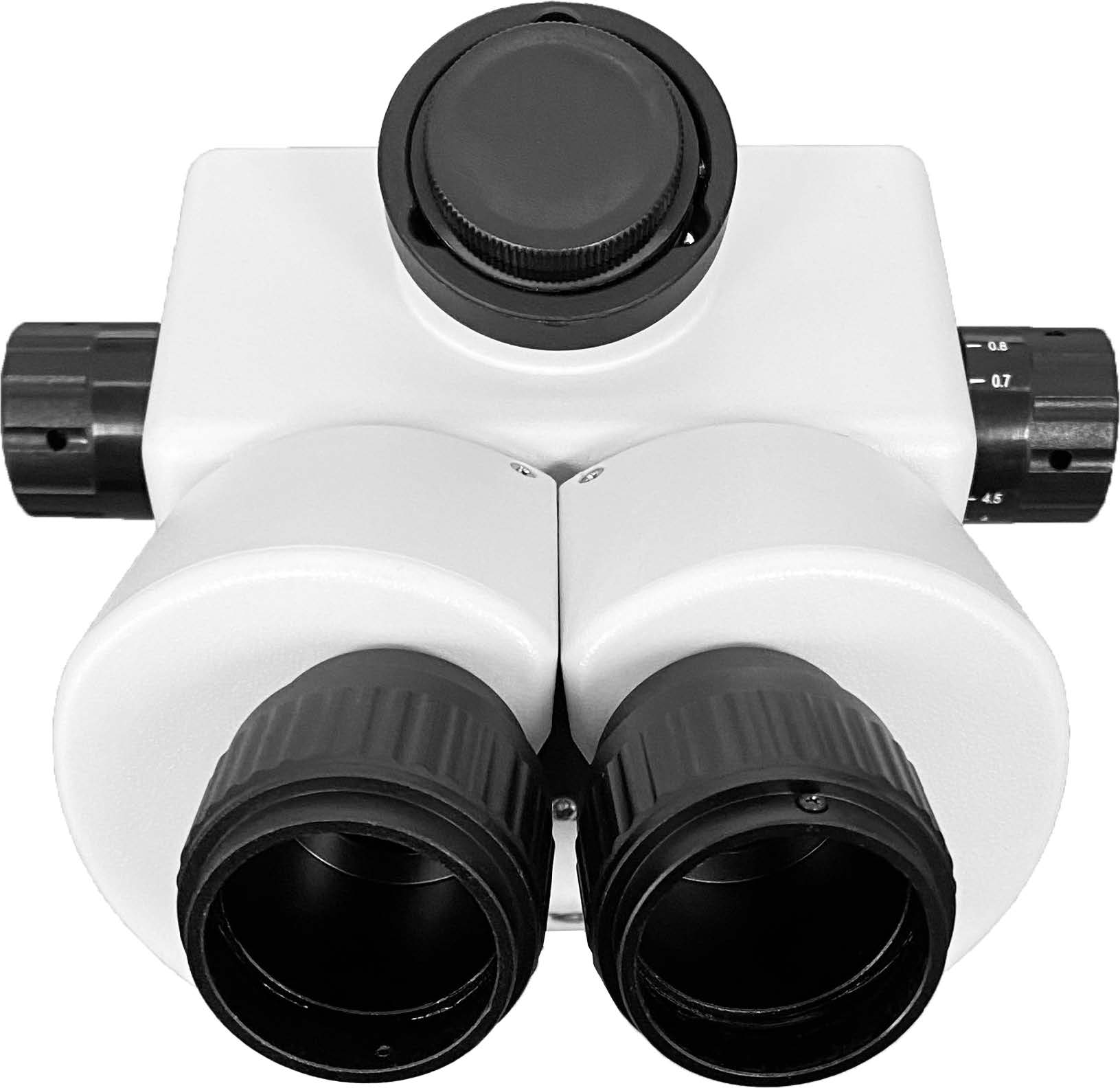

45° tilt, 360° rotation, interpupillary distance 54-76mm; bilateral diopter adjustment (±5)

Objective

0.7X-4.5X continuous zoom, objective zoom ratio 6.4:1 ensures image plane parfocality

Auxiliary objective

Optional 0.3X,0.7X,0.75X,0.5X,1.5X,2X

Focus bracket

The focus bracket hand wheel is adjustable in tightness and has a lifting range of 50mm

Base

Double-arm universal bracket, other bases can be optional

Net Weight

22kg

Illumination

Optional various fluorescent and LED ring lights

Standard Configuration

Name

Qty

Base

1

Column

1

Double rod bracket

1

Eyepiece

2

Variable magnification

1

Zoom bracket

1

Eyepiece cover

2

Optional Configuration

Eyepiece

Standard configuration

Auxiliary objective .5X

Auxiliary objective 1.5X

Auxiliary objective 2X

Working Distance 100mm

Working Distance165mm

Working Distance45mm

Working Distance30mm

Magnification

View Field

Magnification

View Field

Magnification

View Field

Magnification ratio

View Field

10X/20mm

7X

28.6mm

3.5X

57.1mm

10.5X

19mm

14X

14.3mm

45X

4.4mm

22.5X

8.9mm

67.5X

3mm

90X

2.2mm

15X/15mm

10.5X

21.1mm

5.25X

42.8mm

15.75X

14.3mm

21X

10.7mm

67.5X

3.3mm

33.75X

6.7mm

101.25X

2.2mm

135X

1.7mm

20X/10mm

14X

14.3mm

7X

28.6mm

21X

9.5mm

28X

7.1mm

90X

2.2mm

45X

4.4mm

135X

1.5mm

180X

1.1mm

25X/9mm

17.5X

12.9mm

8.85X

25.4mm

26.2X

8.6mm

35X

6.4mm

112.5X

2.0mm

56.3X

4.0mm

168.8X

1.3mm

225X

1.0mm

30X/8mm

21X

11.4mm

10.5X

22.9mm

31.5X

7.6mm

42X

5.7mm

135X

1.8mm

67.5X

3.6mm

202.5X

1.2mm

270X

0.9mm
