iFlaw-100 Ultrasonic Flaw Detector
IFlaw 100 Ultrasonic Flaw Detector（1）
IFlaw 100 Ultrasonic Flaw Detector（2）
IFlaw 100 Ultrasonic Flaw Detector（3）
IFlaw 100 Ultrasonic Flaw Detector（4）
IFlaw 100 Ultrasonic Flaw Detector（5）
IFlaw 100 Ultrasonic Flaw Detector（6）
Video Demonstration
Product Features & Applications
Product Feature：

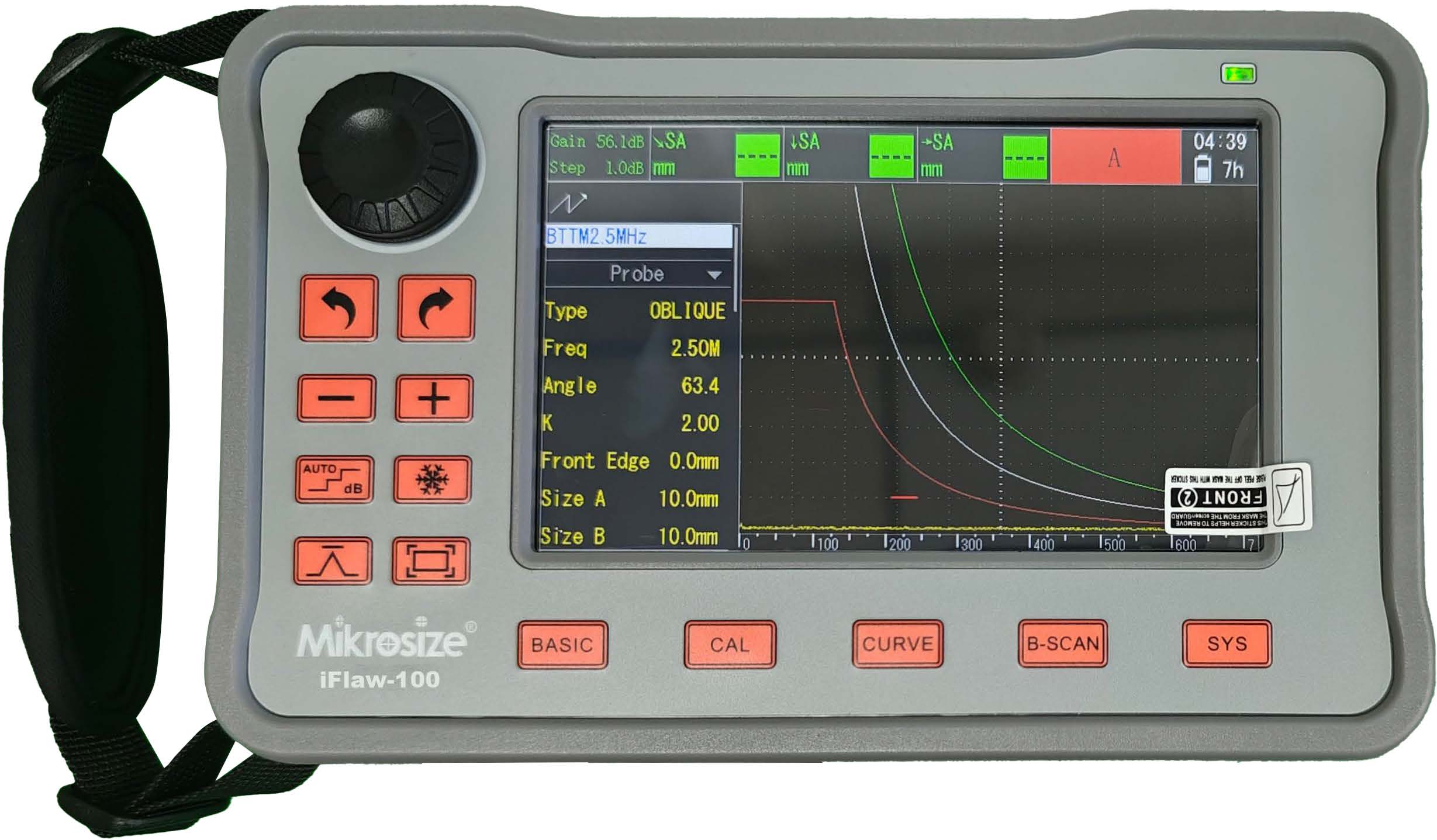

- The body is lightweight and suitable for one-handed operation.
- PD65W fast charge + 12 hours long battery life.
- 5.0-inch IPS high-definition display with a brand new UI interface.
- Support full-screen touch, quick gesture operation, virtual keyboard, easy to use.

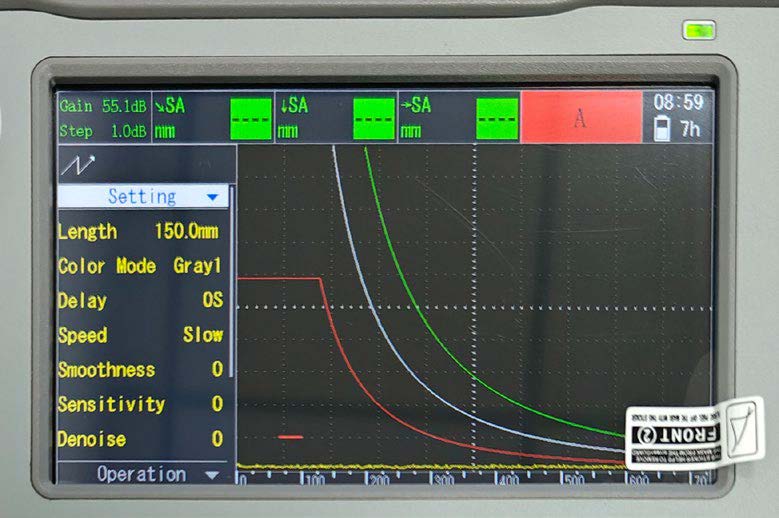

- With DAC, AVG, automatic gain, peak memory, color half-span, B-scan and other professional functions.
- Including Chinese and English switching, data export to SD card, online upgrade, screen capture and many other practical functions.
Product Application：
- Mechanical manufacturing: Testing mechanical equipment components and large castings and forgings；
- Petrochemical industry: Used for equipment such as pipelines and pressure vessels；
- Aerospace: Flaw detection for key components of aircraft and spacecraft；
- Steel structure inspection: Inspect welds, bolt connections, and other parts；
- Concrete structure inspection: Exploring defects such as cracks and voids；
- Track inspection: Flaw detection of steel rails；
- Vehicle detection: Detecting key components of trains, subways, and other vehicles；
- Special equipment testing: Flaw detection for boilers, elevators, etc.
Technical Specifications
|
Bandwidth |
0.1MHz~20MHz |
|
Gain |
120dB, pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB |
|
Wave filter |
Broadband,1M,1.25M,2.5M,5M,10M,15M,1M-5M |
|
Sampling rate |
Hardware sampling rate 100MSPS, equivalent sampling rate 400MSPS |
|
Detection mode |
Full wave, positive half wave, negative half wave, RF, envelope |
|
Detection range |
10 meters (longitudinal wave carbon steel),pace 100mm、10mm、0.1mm |
|
Pulse mode |
Sharp pulse, square wave, dual-square wave |
|
Pulse voltage |
25V~300V, 25V pace |
|
Pulse width |
0ns~500ns continuously adjustable,10ns pace |
|
Emission damping |
Strong(100Ω),weak(1000Ω)adjustable |
|
Pulse frequency |
Automatic or manual, automatic range(200Hz-1KHz), manual range(0-10KHz) |
|
Probe channel |
200 groups, supporting operations such as creating, previewing, deleting, renaming, overwriting, and restoring |
|
Gate alarm |
Gate A and B alarm, lost wave/incoming wave |
|
Gate mode |
Independent gate A, gate B |
|
Measurement mode |
Peak, Front edge, J Front edge |
|
Quantitative mode |
DAC curve, AVG(DGS)curve |
|
Flaw detection standards |
AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345 |
|
Saving content |
Single frame, multi-frame recording (≤ 500 frames), screenshot, B-scan screenshot |
|
Auxiliary functions |
Professional B-scan, automatic gain, peak memory, waveform freezing, channel management, gate alarm, gate expansion, automatic gate, full screen touch, virtual keyboard, color half span, quick screenshot |
|
Display screen |
High definition 5.0 inch 800×480 IPS_LCD |
|
Probe interface |
Dual LEMO-00 C5 |
|
Output interface |

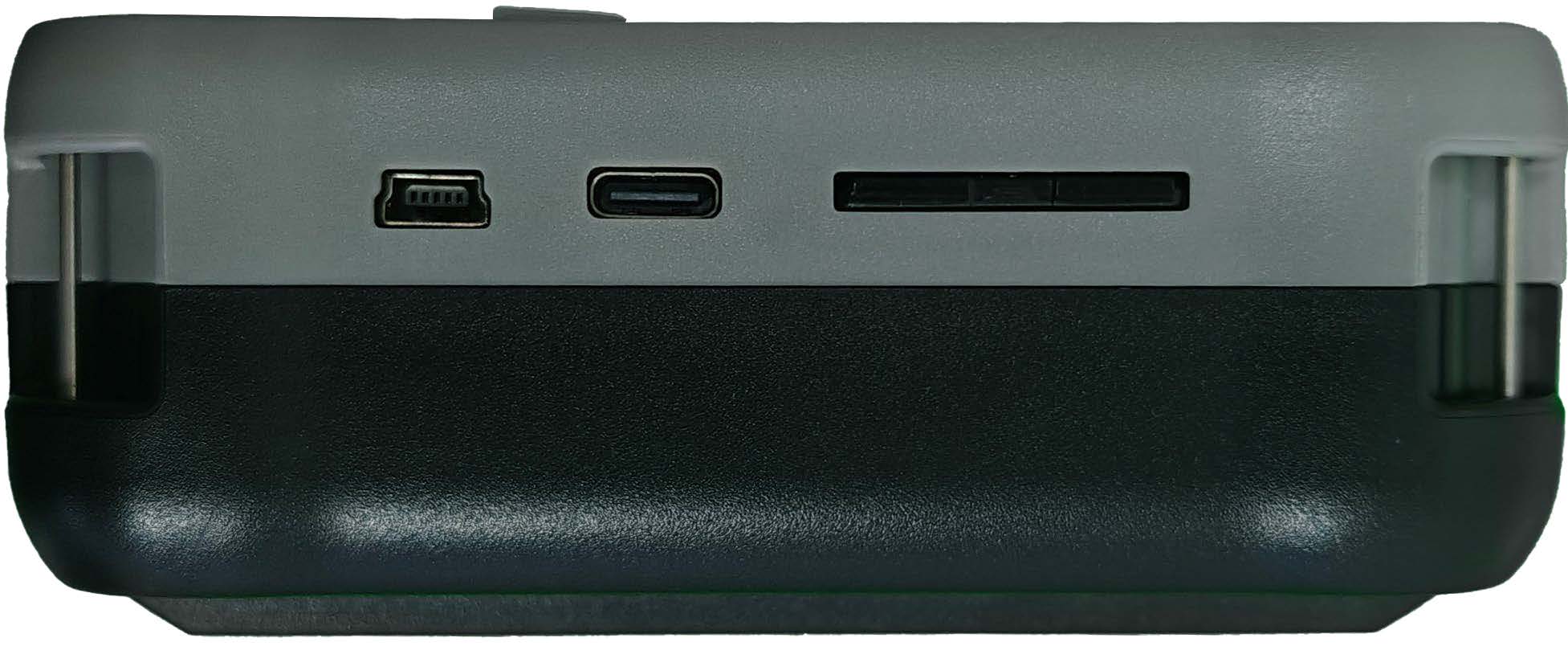

Type-C1, MINI USB |
|
Input interface |
Type-C2(B scan trolley) |
|
B-scan imaging |
Supports up to 700 sets of A-scan synthesis, with the highest resolution φ 2mm (without B scan trolley) or φ1.5mm(with B scan trolley) |
|
Data storage |
8GB SD card |
|
Charger |
65W_PD fast charging ,standard Type-C interface(100~240V, 50~60Hz) |
|
Size |
183mm×113mm×45mm |
|
Weight |
700g, including battery but not rubber sleeve |
|
Language |
Chinese,English |
|
Unit |
Metric system, imperial syetem |
|
Battery |
7.4V 8000mAh Lithium battery, 12 hours of battery life |
|
Operation temperature |
-10℃~55℃ |
|
Resolution ratio |
40dB(Metrological performance requirements: ≥26dB) |
|
Dynamic range |
32dB(Metrological performance requirements: ≥26dB) |
|
Sensitivity margin |
50dB(Metrological performance requirements: ≥42dB) |
|
Vertical linearity |
1.8%(Metrological performance requirements: ≤6%) |
|
Horizontal linearity |
0.5%(Metrological performance requirements: ≤2%) |
Standard Configuration
|
Items |
Qty |
|
Host |
1 |
|

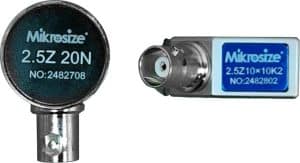

Probe (high-precision straight probe, angle probe) |
2 |
|
Probe line |
2 |
|
Charger |
1 |
|
Power line |
1 |
|
User manual |
1 |
|
Certificate |
1 |
|
Warranty card |
1 |
|
SD card(8G) |
1 |
Optional Configuration
|

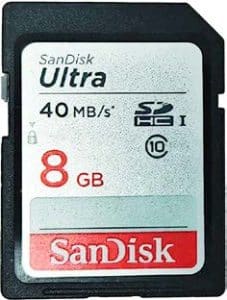

SD card(16G, 32G, 64G) |
1 |
|

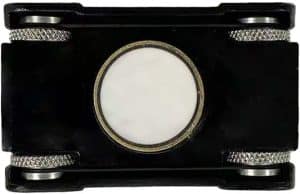

B-scan trolley |
1 |
|
Power bank |
1 |
