VMU CNC Automatic Video Measuring System

Product Feature：

• The integrated ergonomic design of the whole machine makes operation and measurement convenient;
• Using high-precision blue granite “00” grade workbench and columns, its notable features are high precision, corrosion resistance, high strength, and no stress deformation, ensuring high stability of the machine;
• X, Y, Z three-axis CNC fully automatic precision control and accurate positioning, the transmission adopts precision linear guides and grinding-grade ball screws to ensure the accuracy of the motion system;
• The imaging system uses imported high-quality optical components, which have undergone multi-layer optical coating and have minimal optical attenuation, ensuring clear image quality without distortion;
• Programmable 5-ring 8-zone LED surface light source and parallel LED contour light source system, intelligently achieving 256 levels of brightness adjustment;

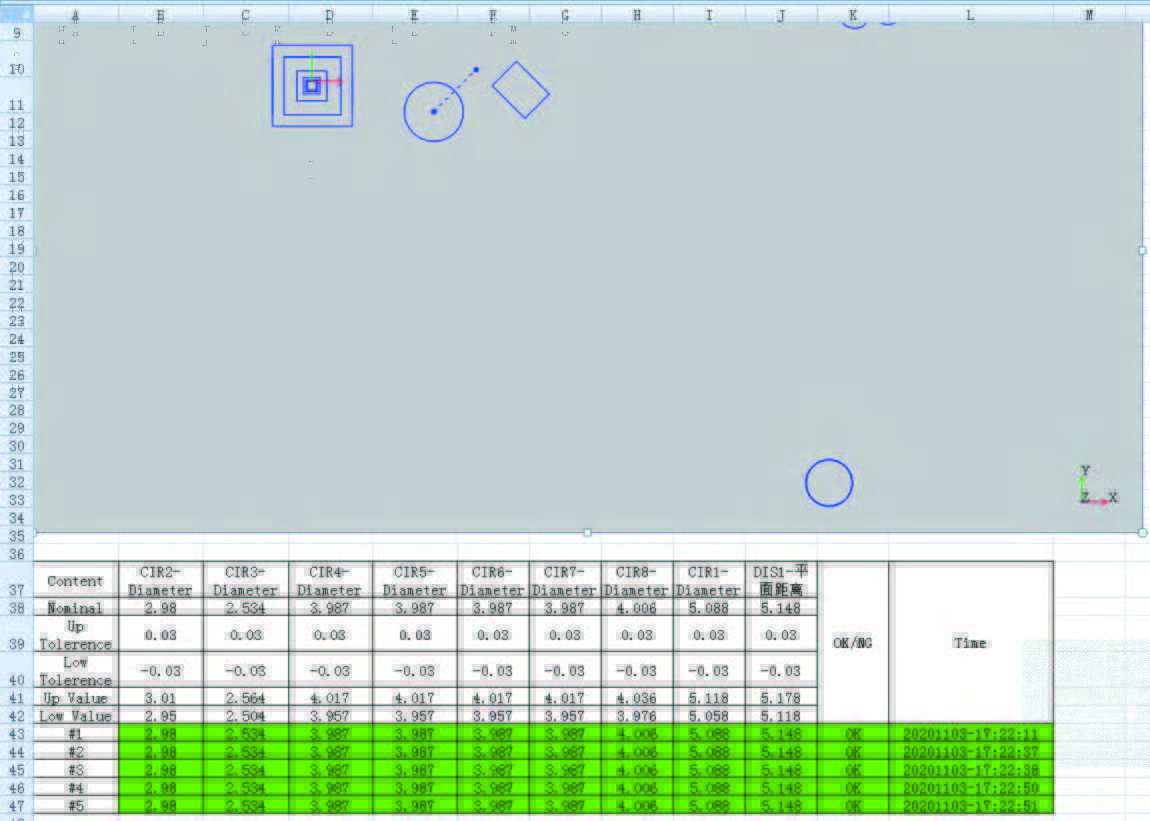

• Independently developed measurement software, with fast focusing, automatic edge finding and diversified output reports, realizes online SPC data processing and analysis, can set automatic measurement tasks, and efficiently complete batch inspections;

Product Application：

• In the field of electronic manufacturing, it can measure the size of electronic components with high precision and detect the quality of PCB boards to ensure the reliability of electronic products;
• In the field of mechanical processing, it can accurately detect the size of complex parts and the condition of tools, helping to improve processing accuracy and effect;
• In mold manufacturing, it can comprehensively detect mold cavities and provide a basis for their repair and improvement to ensure product molding quality and extend mold life;
• In automobile manufacturing, it can accurately measure automobile parts and body appearance to ensure automobile performance and appearance quality;
• In the field of scientific research and teaching, it meets the needs of scientific research precision measurement and can also be used for teaching demonstrations and training.
