UTM-H300/H600/H1000 Computerized Electro-Hydraulic Servo Hydraulic Universal Testing Machine

Product Features:

• Suitable for tension, compression, bending and shear tests of metals and non-metals (including composite materials).
• Adopts electro-hydraulic servo closed-loop control, which can accurately control the flow of hydraulic oil through the servo valve and apply load through the oil cylinder.
• Oil cylinder lower-mounted main machine, with tension test space on the upper part and compression/bending test space on the lower part.
• The motor drives the lead screw to rotate to control the lifting of the crossbeam, so as to adjust the tension and compression space.
• Equipped with a special electro-hydraulic servo oil source control cabinet, with indicating instruments, control buttons and emergency stop buttons.
• Built-in controller, which can realize constant speed test force, constant speed displacement, constant speed strain, constant speed load cycle and other tests.
• Equipped with a wired remote control box, which can control the opening and closing of the fixture to clamp the sample.
• Four-column and two-lead screw design, with stable structure and high rigidity, which can meet high-strength testing requirements.

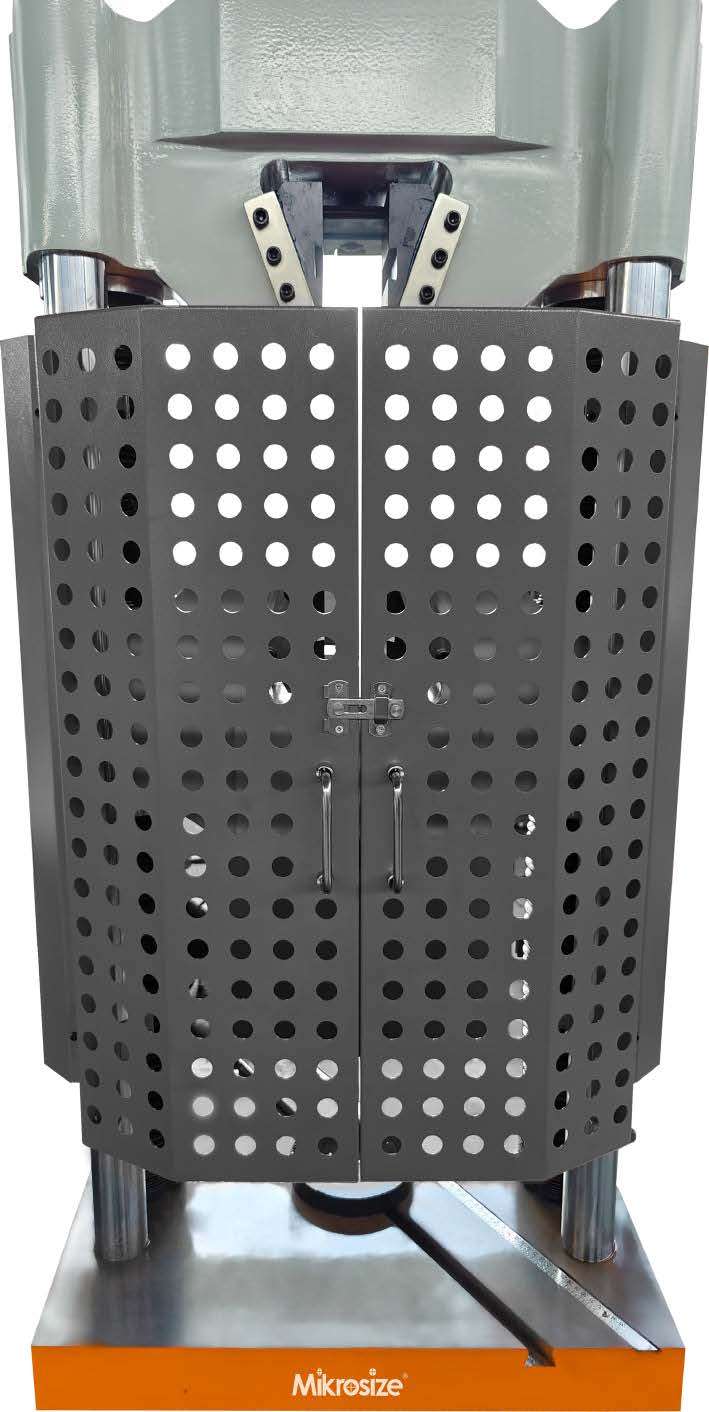

• Equipped with a metal wire protective cover to prevent splashes from causing harm to experimenters when the sample breaks.
• It has multiple protection functions such as overload and overpressure emergency stop protection, as well as mechanical limit devices.

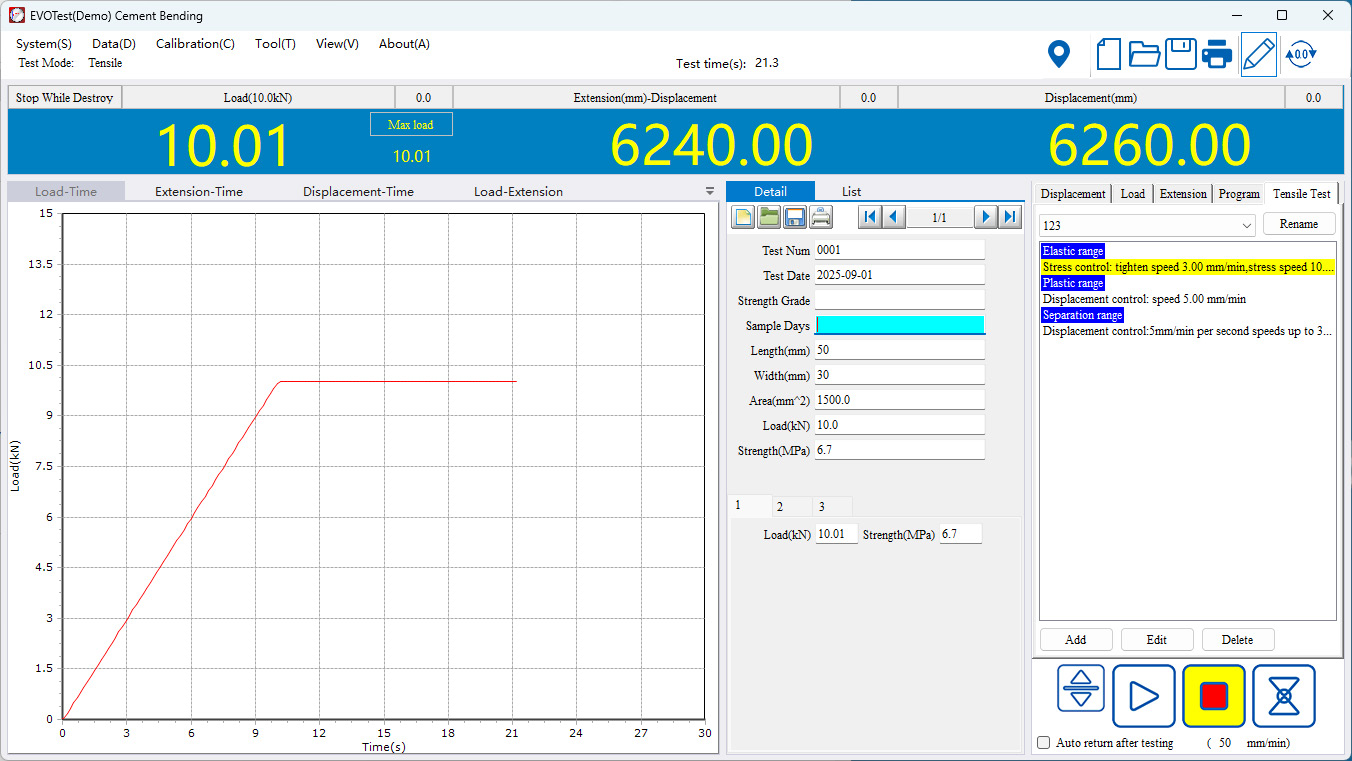

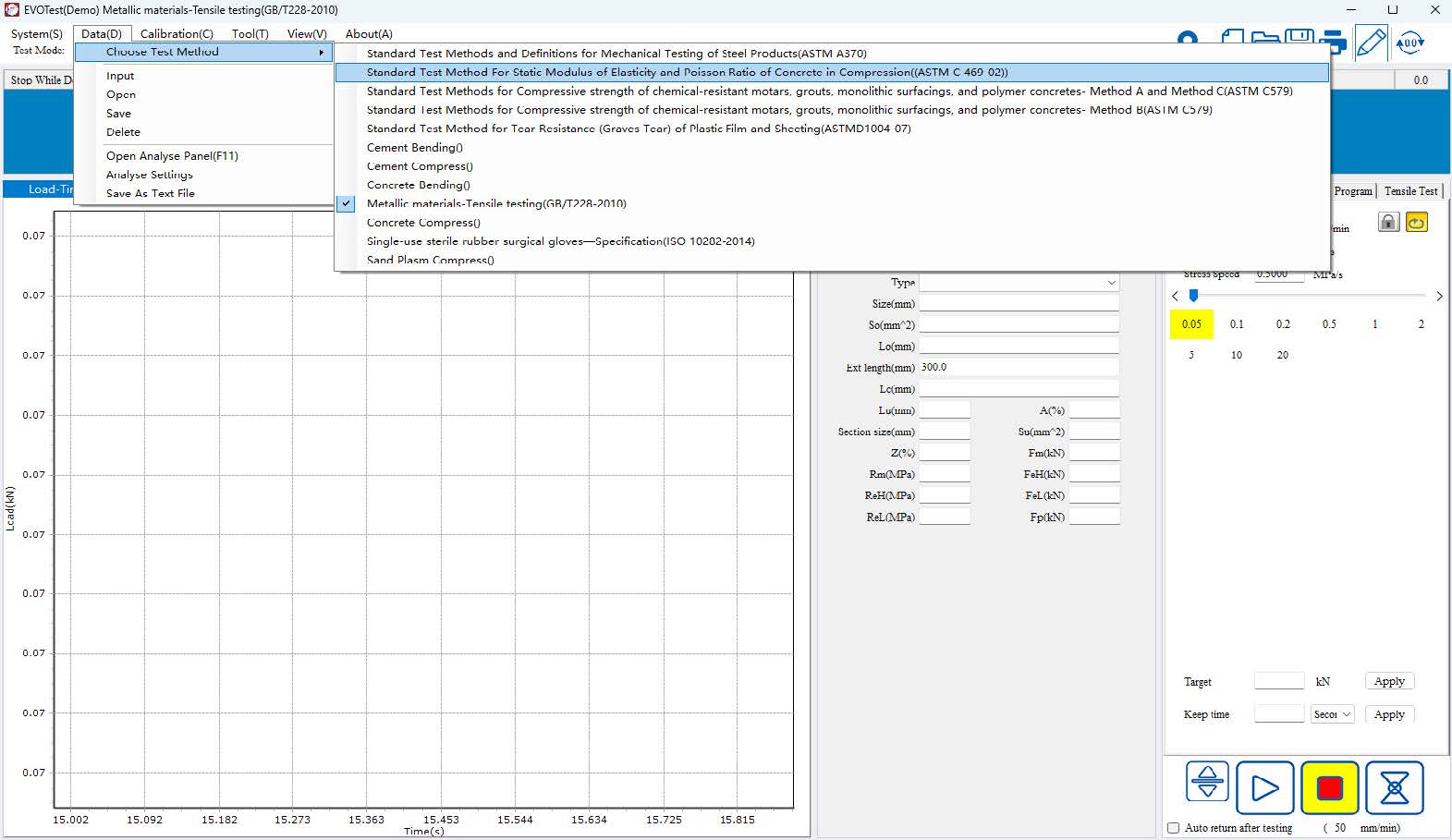

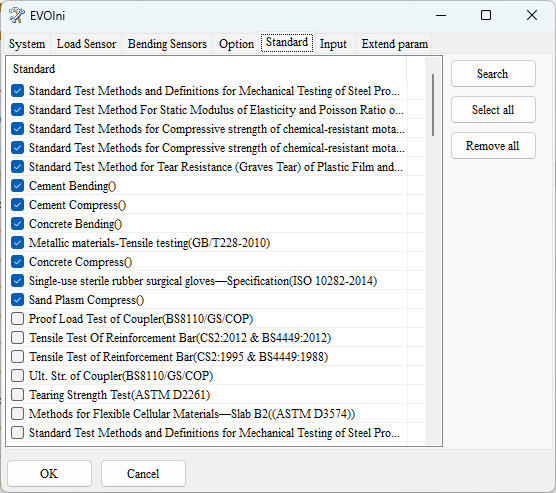

• Cooperating with special measurement and control software, it can realize real-time measurement and display of experiments, real-time control, data processing, result output and other functions.
• The software supports multiple operating systems such as Win7, Win10 and Win11.
• The software has the function of automatically judging sample breakage and will stop automatically.
• The report template is editable and supports multiple output formats.
• After the test, it can return to the initial position manually or automatically at high speed.
• A variety of optional fixtures are available. In addition to the standard tension and compression fixtures, fixtures can be customized according to user needs.

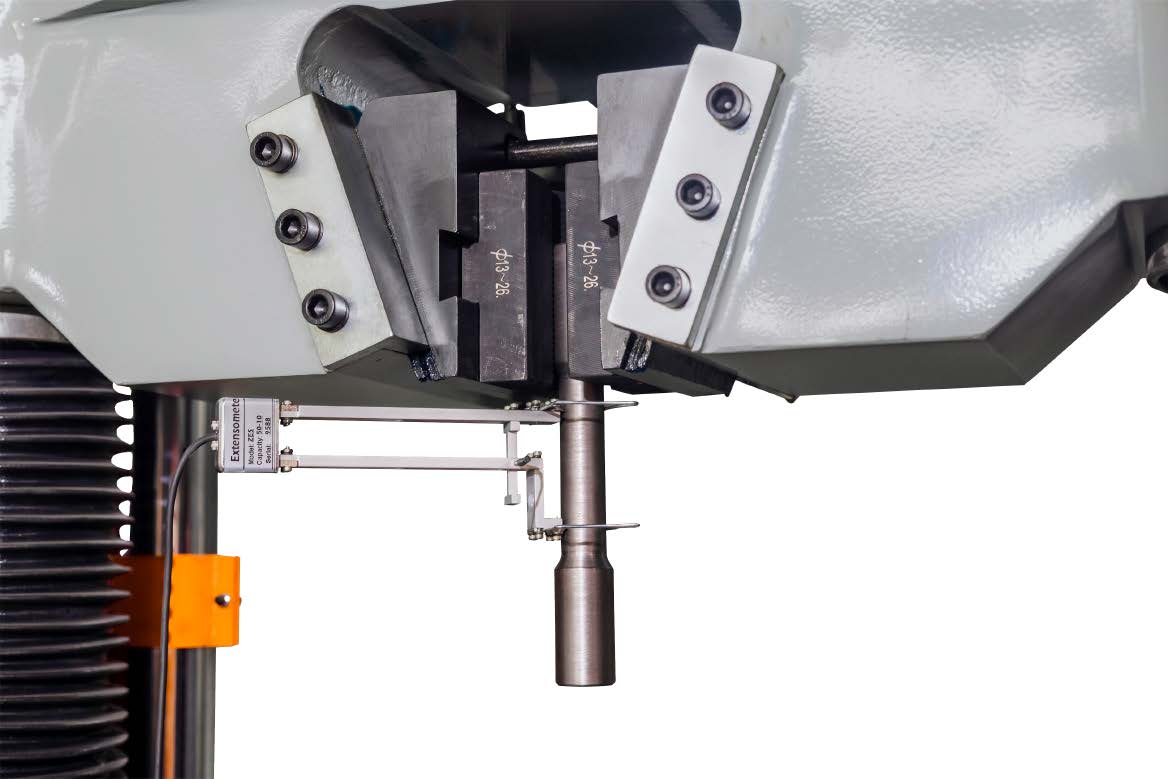

• Supports the use with extensometers (optional).
• The design meets the standards: ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, etc.

Product Applications:

• Basic mechanical property testing of metal materials.
• Performance and structure verification of composite materials.
• Quality inspection of construction and civil engineering materials.
• Reliability and failure analysis of auto parts.
• Ultimate performance verification of aerospace and high-end equipment.
