UTM-DCH Computerized Dual-column Servo Tensile Testing Machine
UTM DCH 图（1）

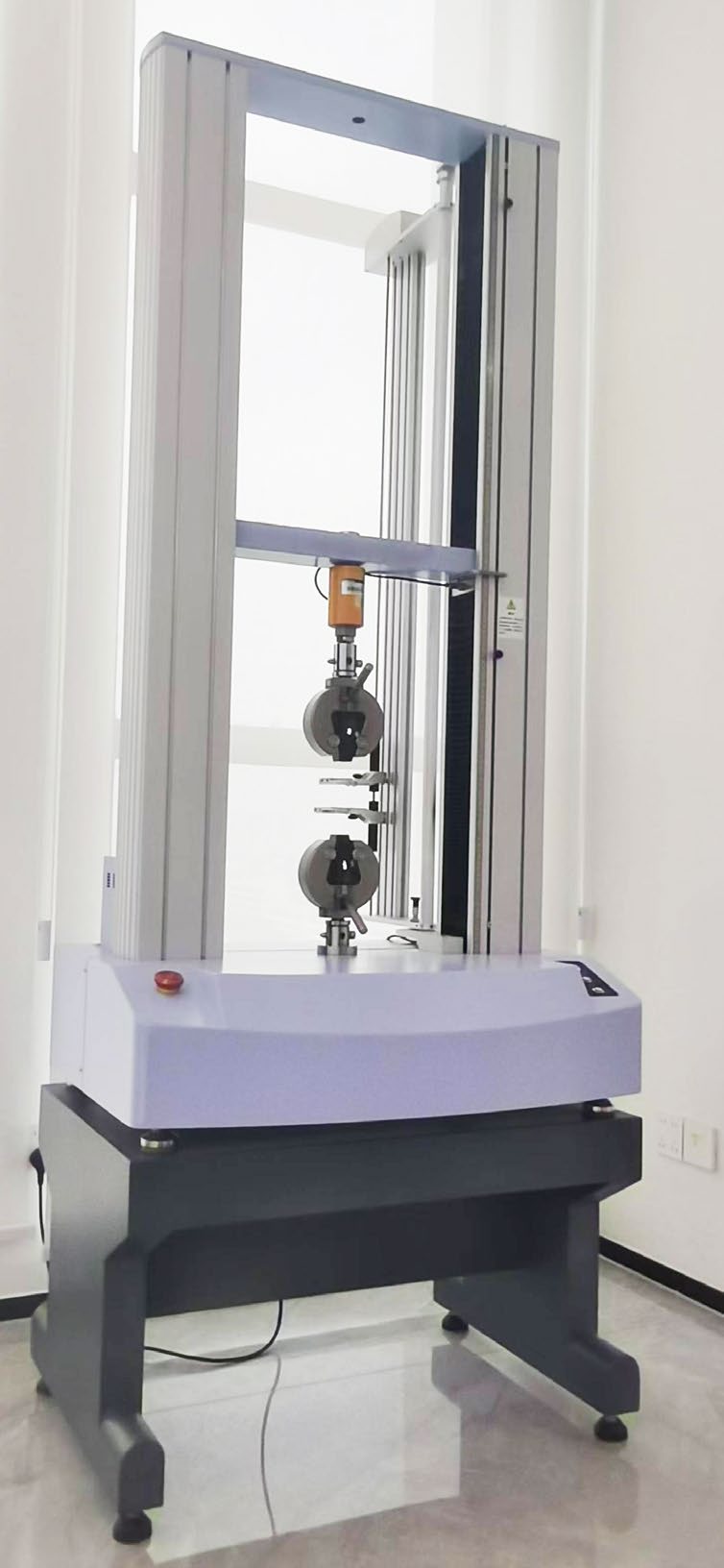

UTM DCH 图（2）

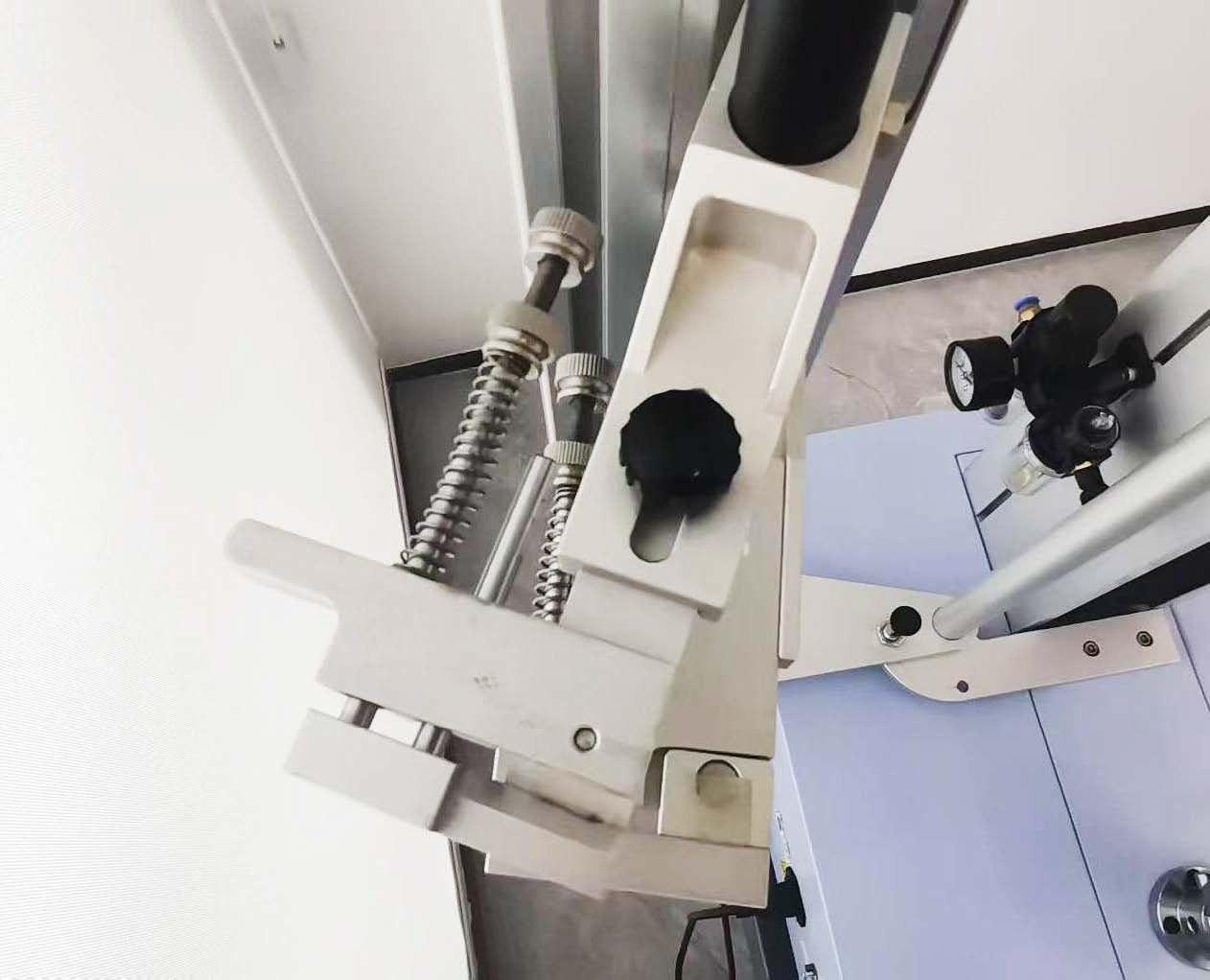

UTM DCH 图（3）

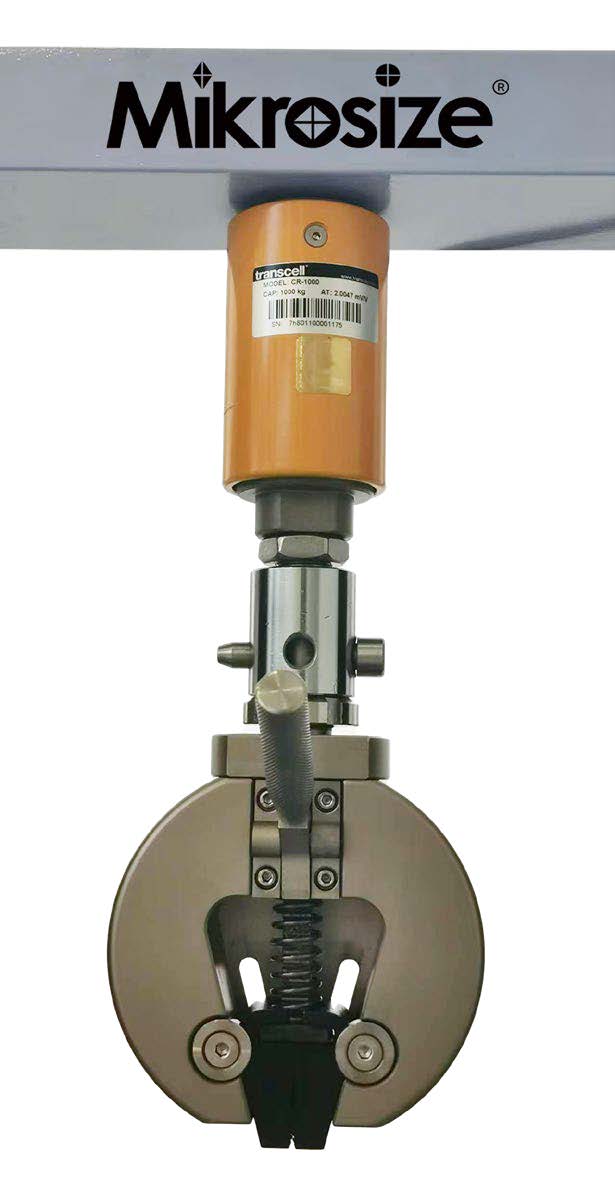

UTM DCH 图（4）

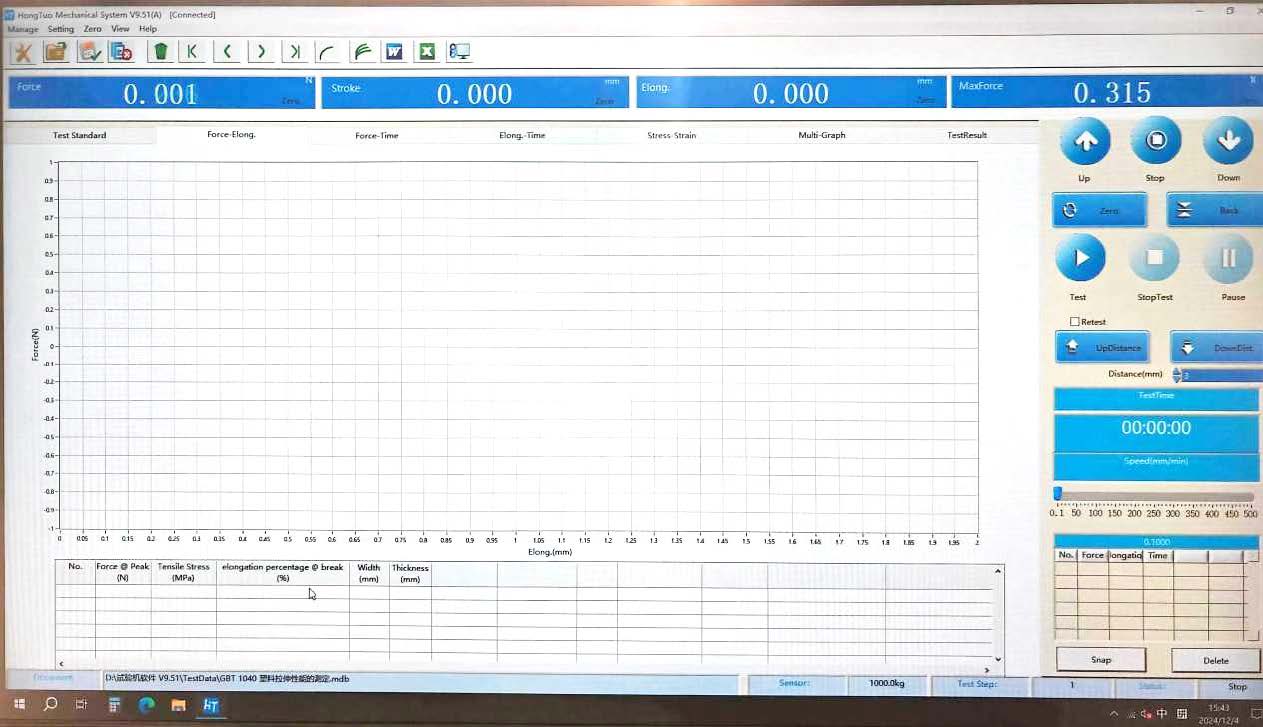

UTM DCH 图（5）

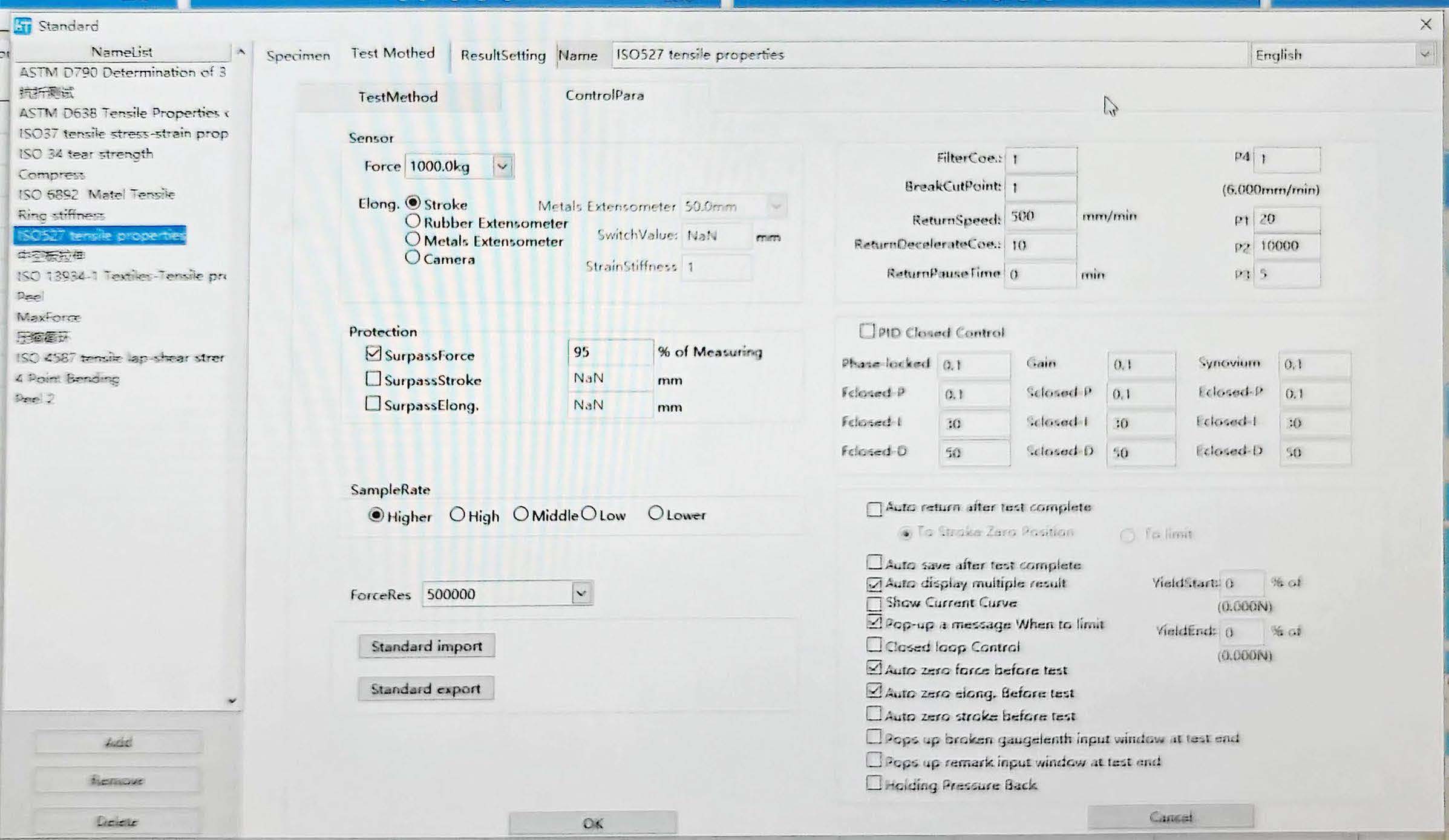

UTM DCH 图（6）
Product Features & Applications
Product Features：
- Fully computer-controlled testing machines, international speed control technology.
- International brands components, making the machine with long-term high reliability, stability, and precision, as well as smooth operation and a long lifespan.
- Used for material testing with loads below 50 KN and covers a wide range of testing functions for most products, making it an ideal mechanical testing instrument for factories, research institutes, and quality inspection agencies.
- Fully digital, closed-loop (force, deformation, displacement) control system with adaptive PID algorithms achieves fully digital closed-loop control of force and displacement, allowing automatic switching between control loops and ensuring smooth transitions without impact when switching between different modes.
Product Application：
- Suitable for mechanical performance tests and analysis such as tension, compression, peel, tear, and shear; suitable for Medium-strength Metal, Sintered product, friction material, rubber, plastic, thin film, fiber and fine thread, adhesive, foam material, adhesive tape, elastomer, connector, bio-material,wood products and paper products, metal foil, wire, oil bearing, ceramics, parts and components, fastener, composite material.
Technical Specifications
| Product Name | Computerized Dual-column Servo Tensile Testing Machine | |
| Model | Utm-dch | |
| Subdivision Model | 50 | |
| Capacity | KN | 50 |
| KG | 5000 | |
| lb | 11023 | |
| Unit Switching | G、Kg、lb、N、KN | |
| Displacement Unit Switching | Inch/cm/mm | |
| Testing Machine Class | Class 0.5 | |
| Effective Force Measurement Range | 0.4％～100％FS | |
| Force Accuracy | Within ±0.5% of the indicated value | |
| Force Resolution | 1/500000 | |
| Displacement Resolution | ≤0.05μm | |
| Displacement Accuracy | Within ±0.5% of the indicated value | |
| Deformation Measuring Range | 0.2%～100%FS | |
| Precision of Deformation Indication | Within ±0.5% of the indicated value | |
| Limit of Large Deformation Indication Error | Within ±0.5% of the indicated value (optional) | |
| Maximum Test Speed | 500mm/min;The maximum value is1000mm/min(optional)0,01mm/min | |
| Maximum Test Speed | 0,01mm/min | |
| Speed Accuracy | Within ±1% of the indicated value | |
| Measuring Width | Test stroke without fixture: 1330mm; Test stroke withfixture: 800mm | |
| Effective Width | 420mm,650mm(optional) | |
| Fixture Configuration | A group of tensile fixtures | |
| Return Mode | Manual or automatic options, automatic return after the end of the test or manual return to the initial position | |
| Stop Method | 1.The maximum break value automatic stop 2.The upper and lower limit safety setting stop | |
| Safety Device | 1. Mechanical stroke switch protection 2. Emergency stop switch emergency braking | |
| Overload Protection | Over 10% of the load, the machine automatically protects | |
| Optional Accessories | Anti-splash device (protective door); Computer;Printer; Small deformation metal extensometer, large deformation extensometer. | |
| Power Supply | 220V.AC/ 50HZ; (110V.AC/60HZ can be selected by country) | |
| Weight | Net Weight: about 185KG Gross Weight: about 220KG | |
| Dimension | Mainframe:L*W*H:800mm*550mm*1700mm Package:L* W*H:900mm*650mm*1800mm | |
Standard Configuration
| Name | Quantity |
| Mainframe Machine | 1 |
| Power Cord | 1 |
| Test Software Program CD 1 | 1 |
| Data Cable | |
| Fixture | |
| Anti-flight Excitation Device (Protective Door) | 1 |
| Computer | 1 |
| Printer | 1 |
| 3 Point Bending Fixture | 1 |
| 4 Point Bending Fixture | 1 |
| Instruction Manual | 1 |
| Product Certificate | 1 |
| Product Warranty | 1 |
Optional Configuration
| Name | Quantity |
| Small Deformation Metal Extensometer | 1 |
| Large Deformation Extensometer(1000mm,0.01mm) | 1 |
| Other Fixtures | 1 |
