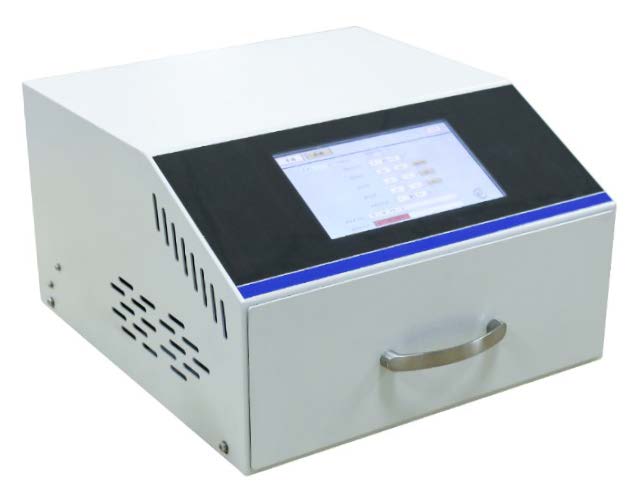

UM-6000 Automatic Light Curing Cold Mounting Press

Product Feature：

• Dual-wavelength combination: 365+395 (395+450,365+450 optional);
• Each wavelength has low, medium, and high brightness levels, independently adjustable;
• In low-temperature mode, the temperature does not exceed 50°C, effectively protecting samples;
• Six-sided illumination (top, bottom, left, right, front, back) with reflective film ensures uniform light distribution and high curing efficiency;

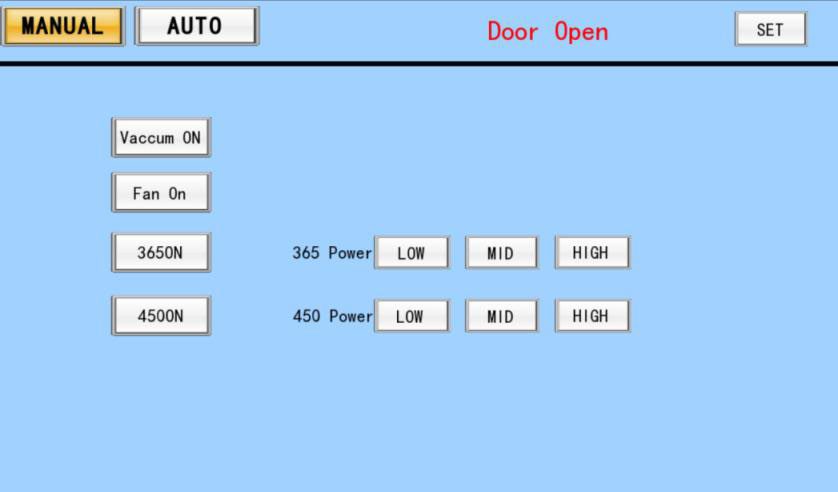

• Manual and automatic operation modes;
• Electric sample chamber door for smooth closing, prevent- ing liquid spillage (UM-6000S includes this feature);
• Audible and visual alerts upon completion of mounting;

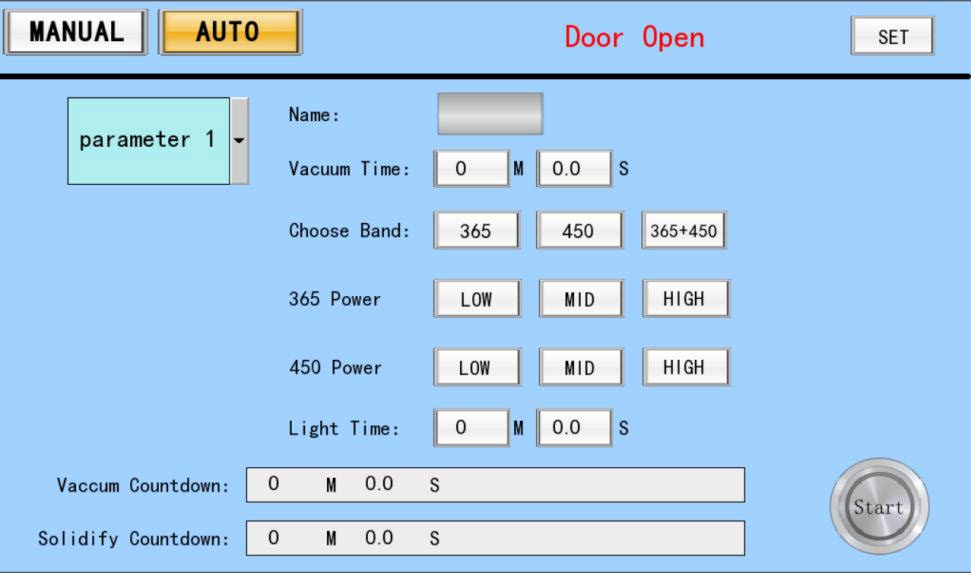

• Supports up to 99 automatic programs, each customizable for wavelength, brightness, curing time, etc;
• Easy-to-replace light panels;
• Lifespan is over 10 times longer than traditional mercury lamp curing machines, unaffected by frequent switching;
• Uses LED UV lights, consuming only 10% of the energy of mercury lamp UV curing machines;
• Optional vacuum pump further reduces bubbles;
• Fast curing time, typically ranging from seconds to minutes.

Product Application：

• Cross-sectional analysis and defect detection of electronic components:

UV curing occurs at room temperature, avoiding thermal damage to temperature-sensitive parts.

• Microscopic observation and pathological analysis of biomedical samples:

Low-temperature curing prevents protein denaturation, and rapid curing meets urgent diagnostic needs.

• Industrial inspection and failure analysis of brittle and porous materials:

No mechanical pressure is required, preserving sample integrity and accommodating irregular shapes or loose structures.
