Roughness And Contour Measuring Instrument Probe
79e39323f56915f8c522b8e6d10d17f9
1fea5f2b7151a63c391e23fe015c09f7
6eb8c990896ee6292420b5c661e1edf2
A02160376caeb837798be4deb0bf6c5d
30eb718c25cfac279f454065e5e7acb4
6af7154b2bb3d9cfa90a5772526c768a
9286e700c7637889496d3b3ef1ddeb30 scaled
D04918008945353dbac143298e10c2d2 scaled
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
 |
| Name | Model | Material | L | L1 | L2 | φ1 | φ2 | φ3 | θ | R | θ2 |

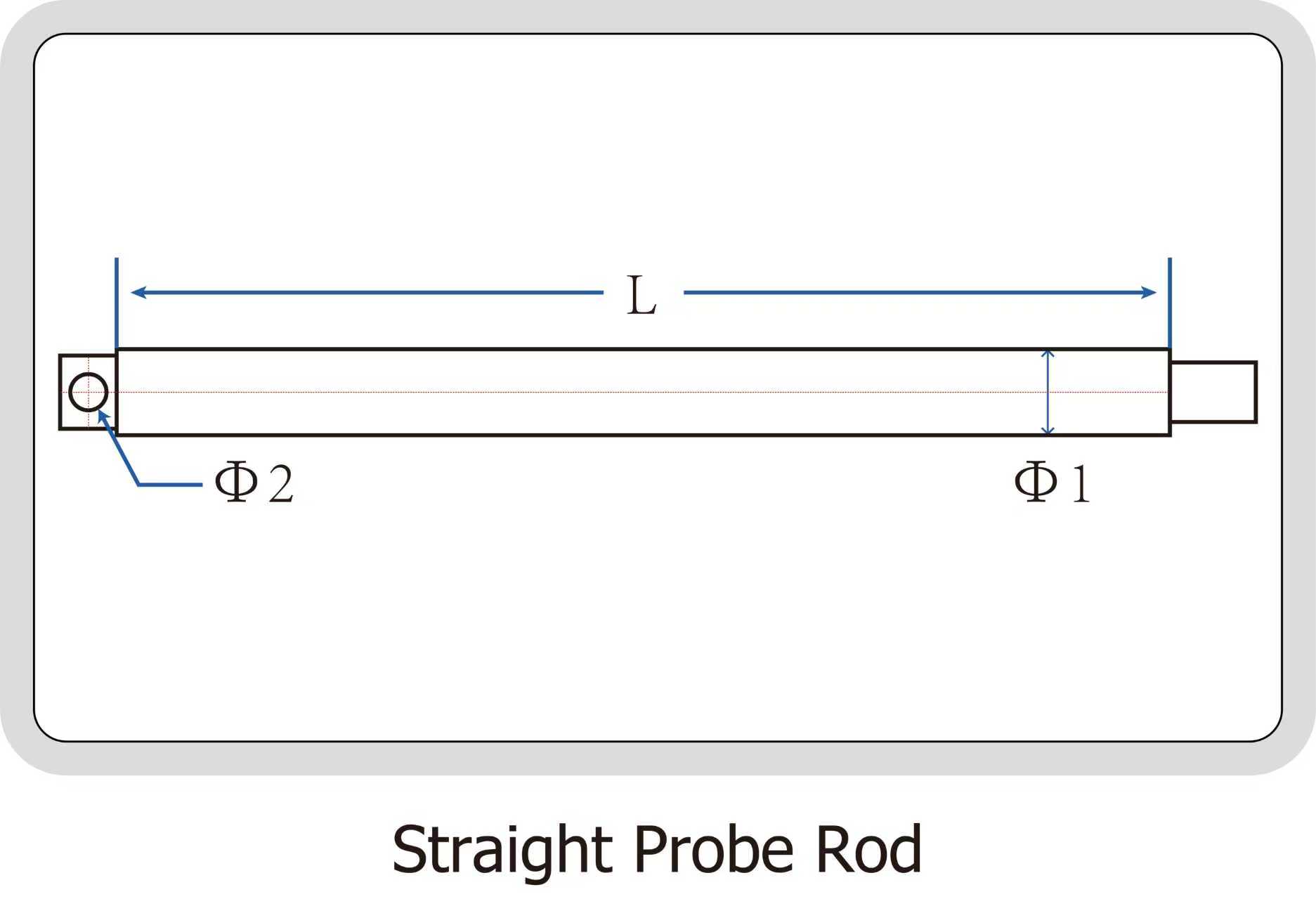

| Straight Probe Rod | S8151 | Carbon Fiber | 150 | - | - | 8 | 2 | - | - | - | - |
| Straight Probe Rod | S8152 | Carbon Fiber | 150 | - | - | 8 | 3 | - | - | - | - |
| Reducing Probe Rod | S8152 | Carbon Fiber | 150 | 125 | - | 8 | 2 | 1 | - | - | - |

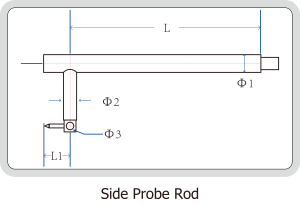

| Side Probe Rod | N815152 | Carbon Fiber | 150 | 15 | - | 8 | 8 | 3 | - | - | - |

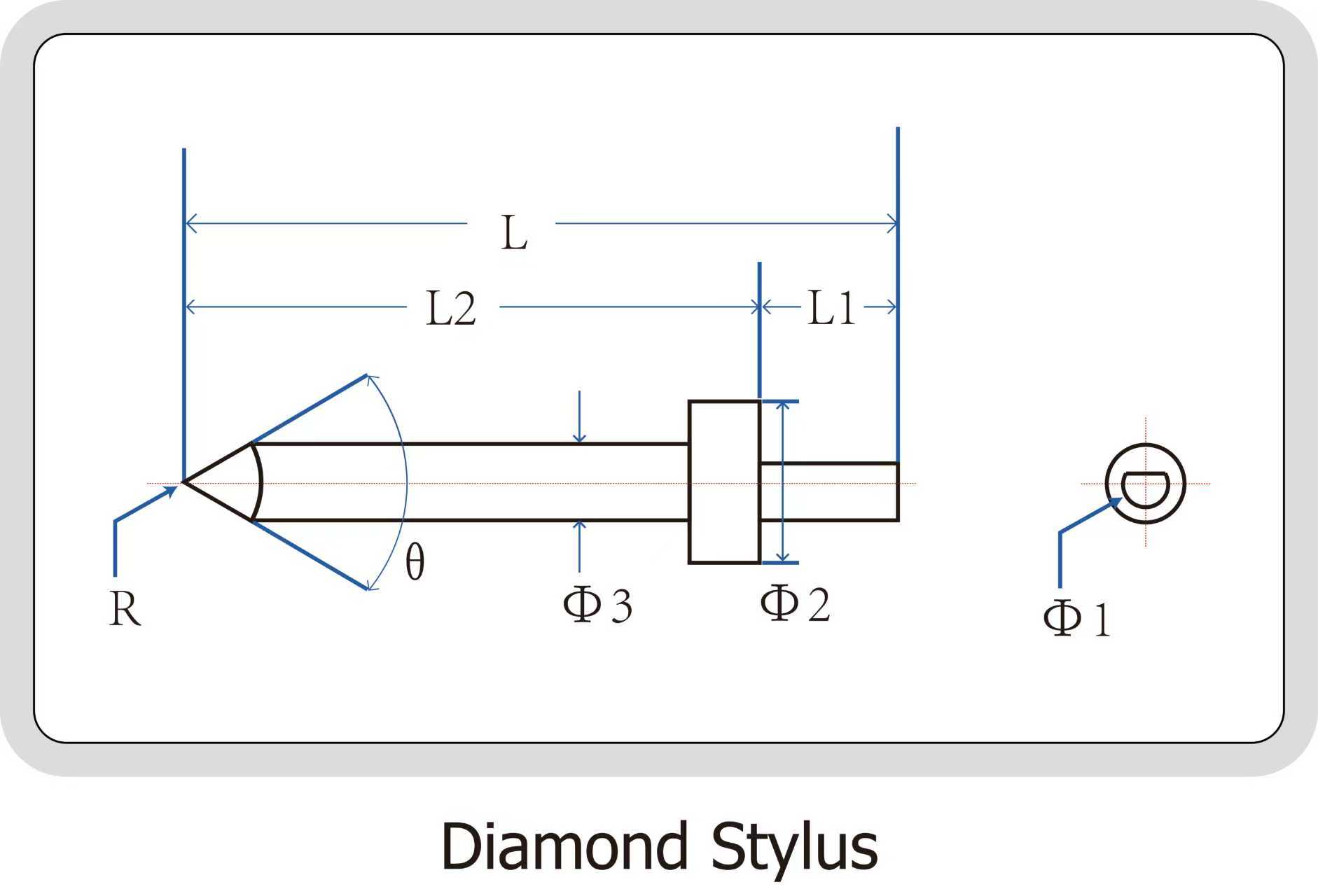

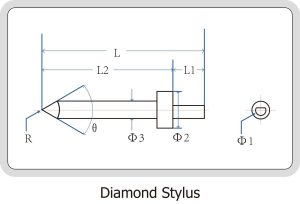

| Diamond Stylus | D3001 | Diamond | 24 | 8 | 16 | 2.2 | 5 | 3 | 60 | 0.002/0.005 | - |

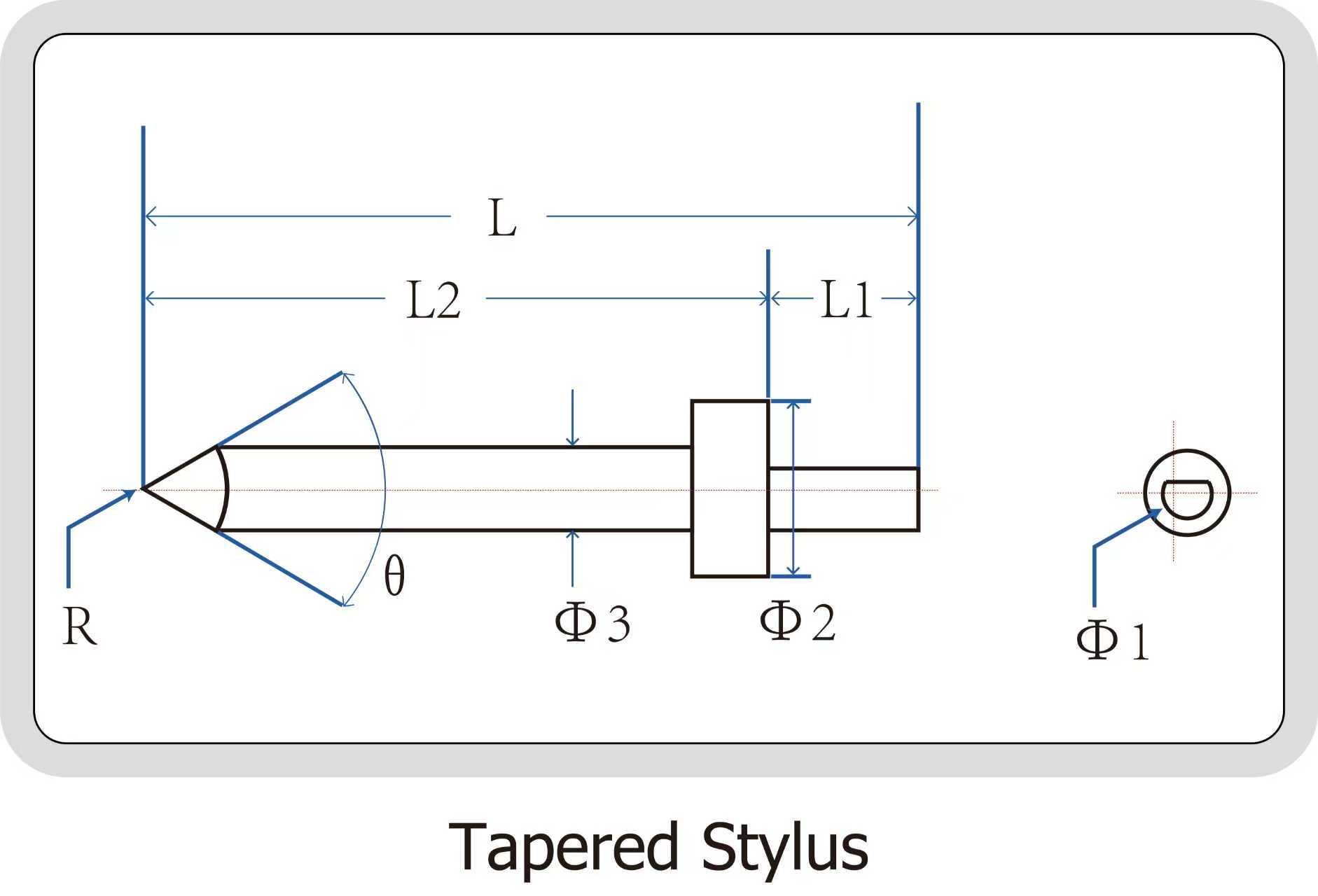

| Tapered Stylus | N3001 | Cemented Carbide | 24 | 8 | 16 | 2.2 | 5 | 3 | 24 | 0.025 | - |

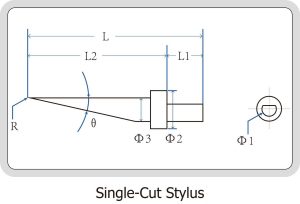

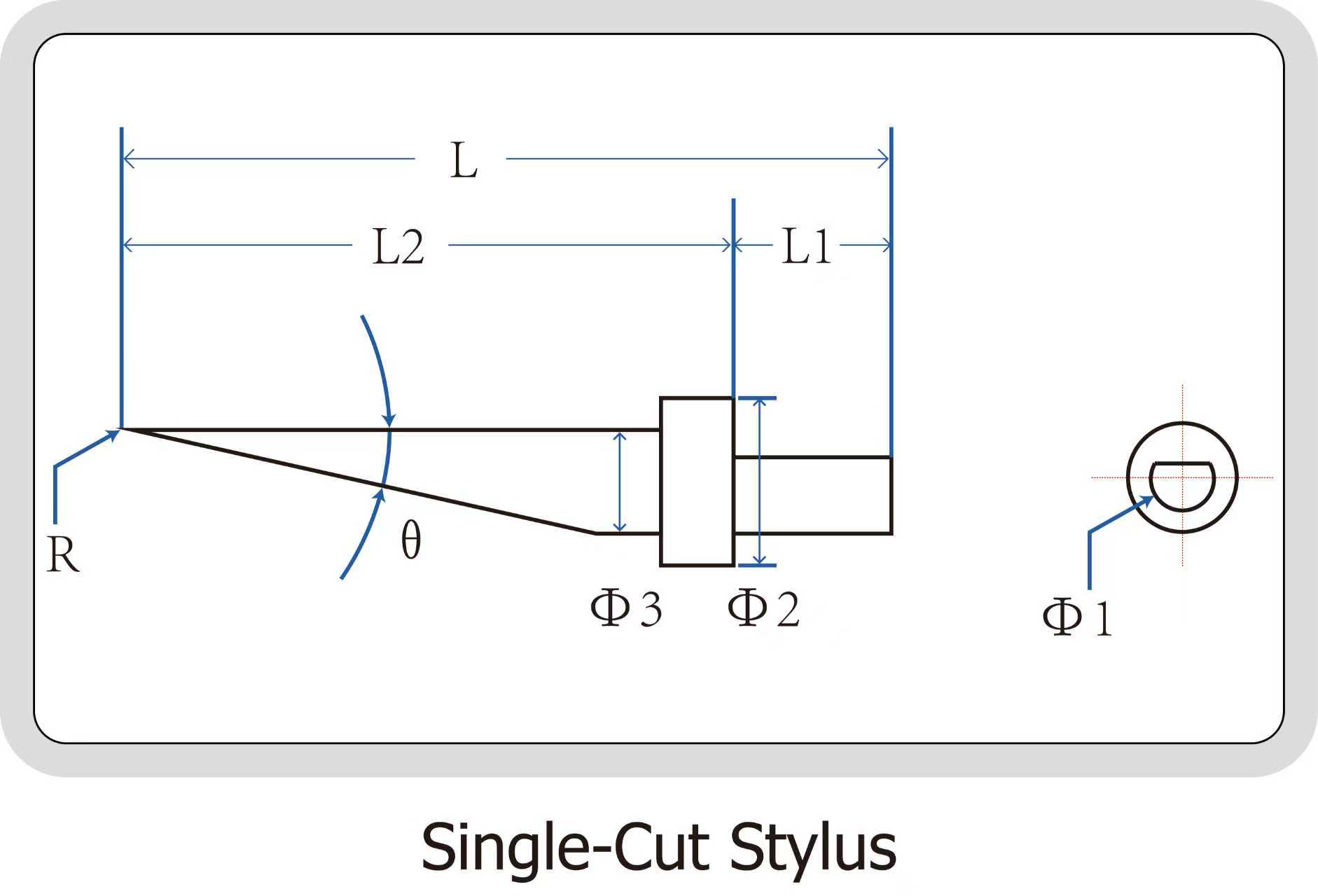

| Single-Cut Stylus | SP2003 | Cemented Carbide | 21 | 6 | 15 | 1.5 | 4 | 2 | 12 | 0.025 | - |
| Single-Cut Stylus | SP3001 | Cemented Carbide | 24 | 8 | 16 | 2.2 | 5 | 3 | 12 | 0.025 | - |

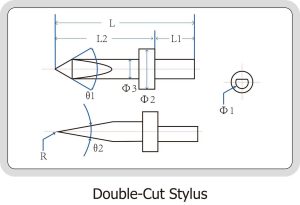

| Double-Cut Stylus | DC2001 | Cemented Carbide | 12 | 4 | 8 | 1.5 | 4 | 2 | 60 | 0.025 | 20 |

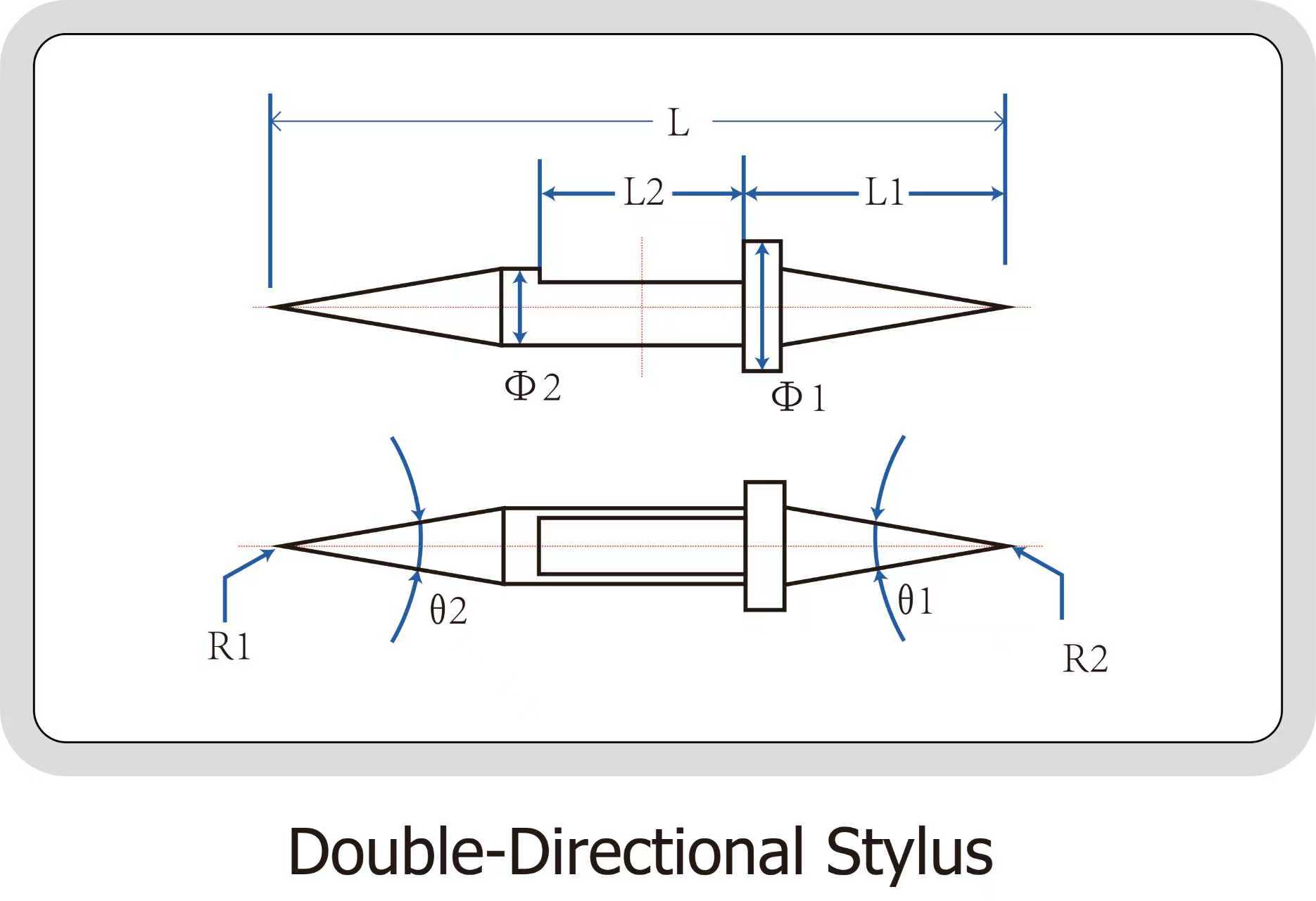

| Double-Directional Stylus | B3001 | Cemented Carbide | 28 | 10 | 8 | 5 | 3 | 20 | 20 | 0.025 | 20 |
