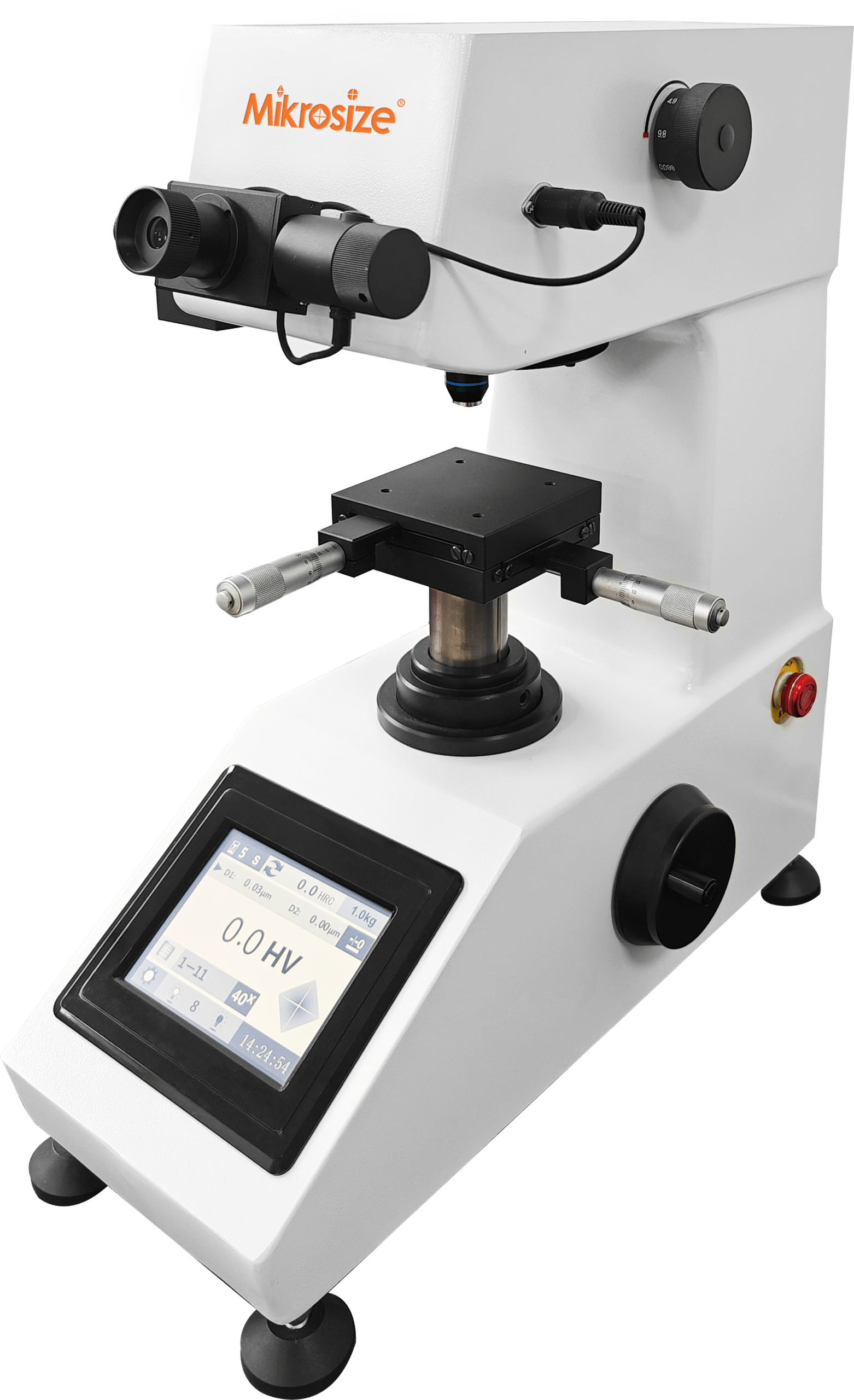

MVicky-1000T Touch Screen Micro Vickers Hardness Tster

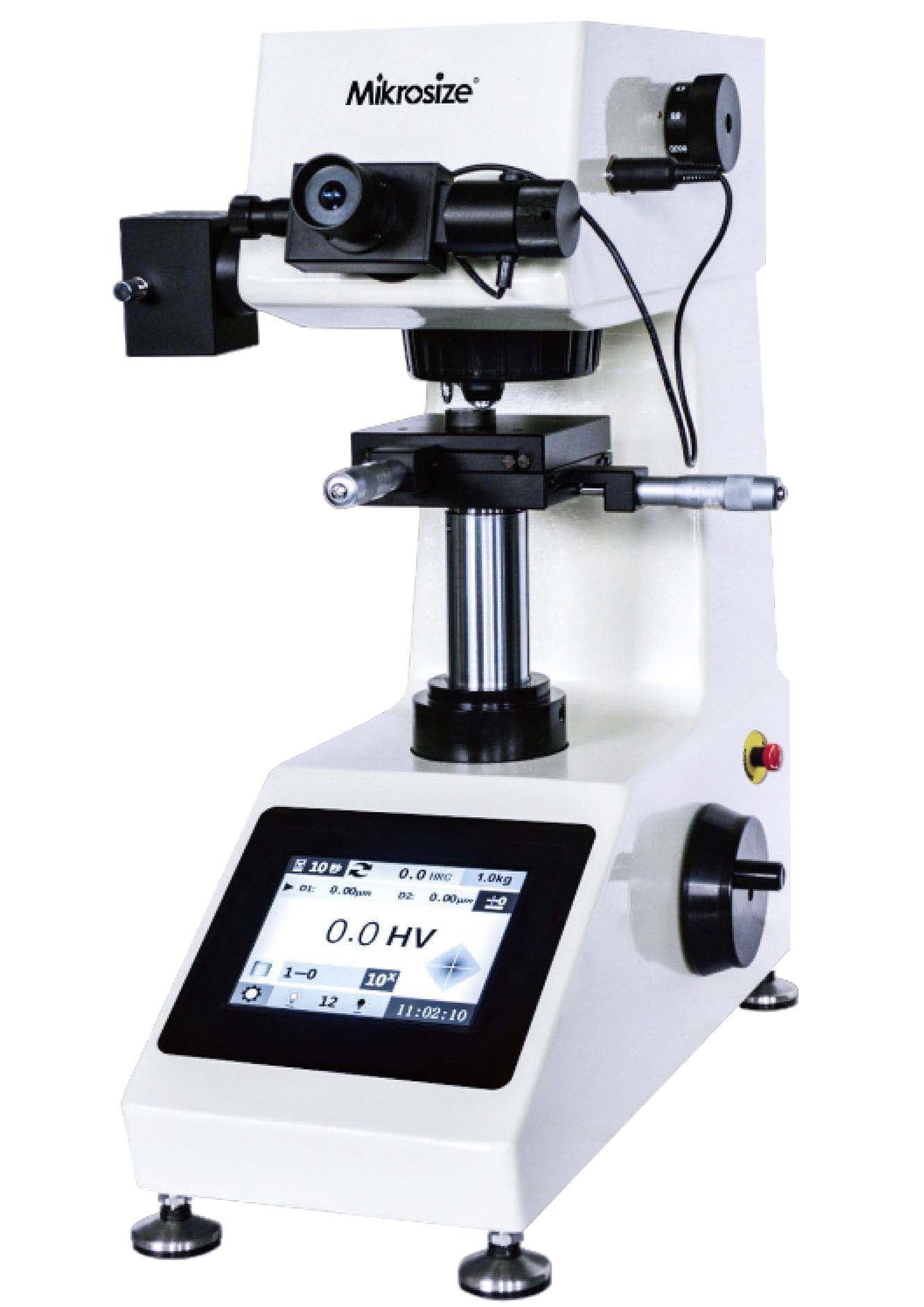

MVicky 1000T图（1）
MVicky 1000T图（2）
MVicky 1000T图（3）
MVicky 1000T图（4）

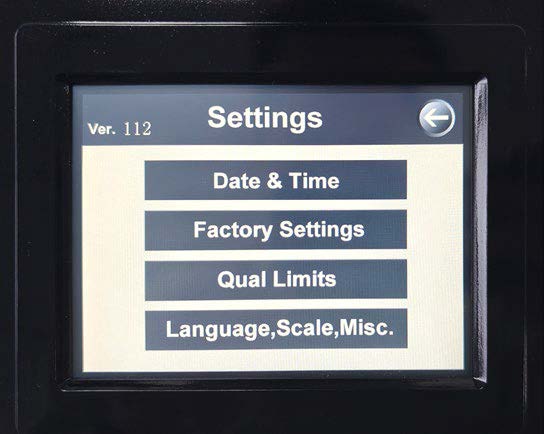

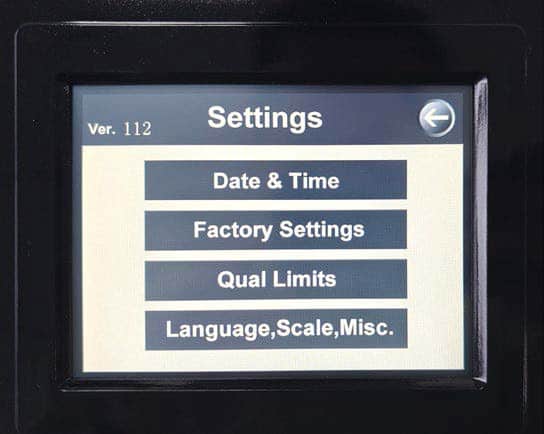

MVicky 1000T图（5）
MVicky 1000T图（6）
Video Demonstration
Product Features & Applications
Product Feature：
- High-definition touch screen display and operation
- Automatic switching turret,automatic positioning.
- Precise mechanical design, controlled by the CPU electri- cally, and high-definitionoptical measurement system is used optically to improve the test accuracy
- Testing mode both mico vickers and knoop.

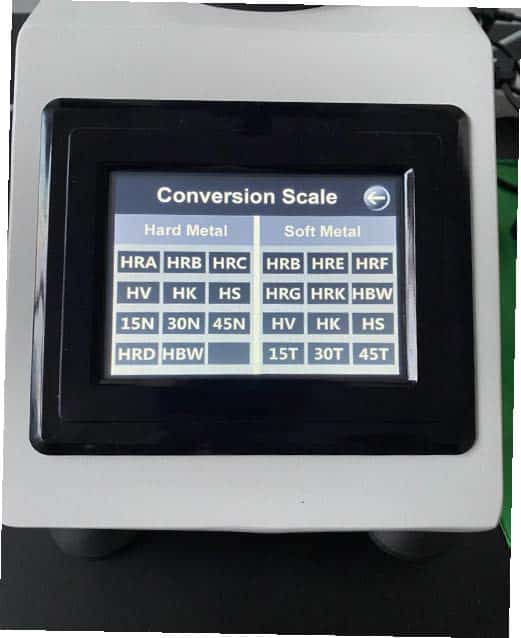

- Selected all micro vickers scales,and converted hardnessscales
- Preset test force load dwelling time
- Adjustable illumination brightness
- The diagonal length of the indentation automatically entered after digital encode button pushed, the hardness value is automatically displayed on the screen, and the number of hardness tests is prompted
- Built-in printer , test result can be printed out.
Product Application：
- Hardness testing of various metal materials such as steel, aluminum alloy, copper alloy, etc
- It enables users to understand the hardness properties of the material, and then evaluate its processability and usabil- ity.
- It is also suitable for hardness testing of non-metallic materials such as ceramics, glass, and rubber etc.
Technical Specifications
| Product Name |
Touch Screen Micro Vickers Hardness Tester |
| Model |
MVicky-1000T |
| Test Force |
0.098N(10gf)、0.245N(25gf)、0.49N(50gf)、0.9807N(100gf)、1.961N(200gf)、2.942N(300gf)、4.903N(500gf)、9.807N(1kgf) |
| Loading Method |
Auto Loading , Dwelling, Unloading |
|
Turret |
Auto |
|
Dwelling Time |
0~60s(every 5 seconds as one unit) |
|
Eyepiece |
10x |
|
Objective |
10x(observation) , 40x(measurement) |
|
Total Magnification |
100x(observation) , 400x(measurement) |
|
X-Y Test Anvil |
Size:100x100mm, Travel: 25x25mm, Resolution:0.01mm |
|
Test Height |
90mm |
|
Test Throat |
100mm |
|
Net Weight |
31kg |
|
Machine Dimension |
480x325x545mm (LxWxH) |
|
Power Supply |
AC110/220 V/50~60 Hz |
|
Working Environment |
In the range of (23±5) °C at room temperature. Placed horizontally on a solid foundation. No corrosive media around it in a vibration-free environment. Indoor relative humidity is not more than 65%. |
Standard Configuration
| Name | Quantity |
| Machine Mainframe |
1 set |
| Diamond Micro Vickers Indenter |
1 PC |
| X-Y Test Table |
1 PC |
| Thin Specimen Clamp |
1 PC |
| Hardness Block 400~500 HV0.2 |
1 PC |
| Weights | 6 PCS |
| Horizontal Adjusting Screw | 4 PCS |
| Fuse 1A | 2 PCS |
| Power Cord |
1 PC |
| Anti-dust Cover |
1 PC |

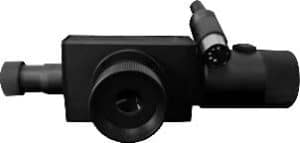

| 10X Digital Measuring Eyepiece |
1 PC |
| 10X, 40X Objective | 1 PC ea. |

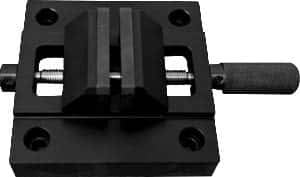

| Flat Clamp |
1 PC |
| Filament Clamp |
1 PC |
| Hardness Block 700~800 HV1 |
1 PC |
| Weight Axis |
1 PC |
| Level |
1 PC |
| Halogen Lamp 12V, 20W | 1 PC ea. |
| Screwdriver | 2 PCS |
| Instruction Manual | 1 Copy |
Optional Configuration
| Knoop indenter |
| CCD image processing system |
| Vickers measurement software |
| Low-value HV1 Vickers standard hardness block (around 200) |
| Medium-value HV1 Vickers standard hardness block (around 500) |
| High-value HV1 Vickers standard hardness block (around 700)(Standard hardness blocks for other Vickers scales are optional) |
