MPress Manual Metallographic Mounting Press
MPress Manual Metallographic Mounting Press 图（1）

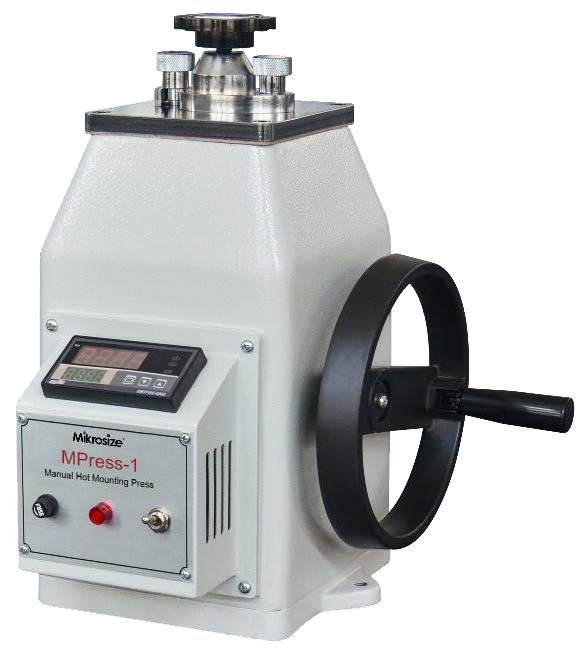

MPress Manual Metallographic Mounting Press 图（2）

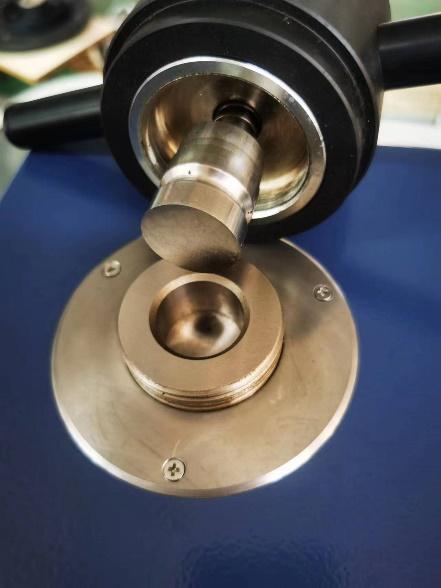

MPress Manual Metallographic Mounting Press 图（3）

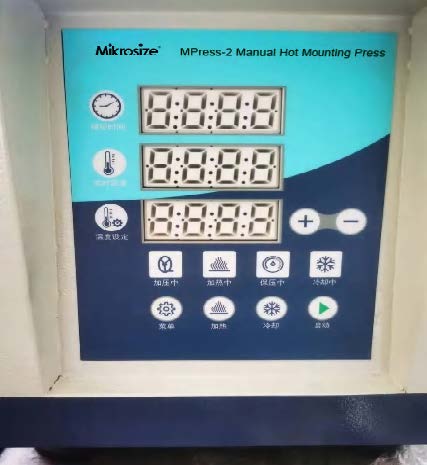

MPress Manual Metallographic Mounting Press 图（4）

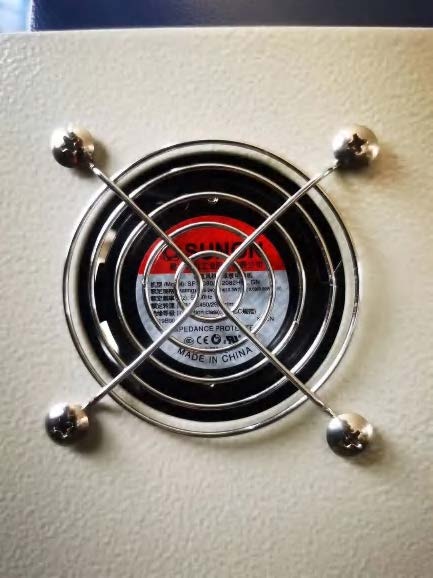

MPress Manual Metallographic Mounting Press 图（5）

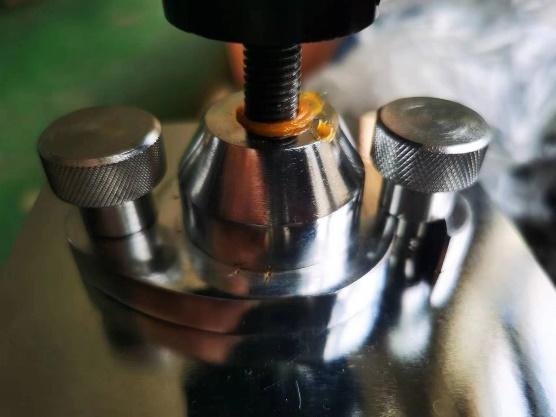

MPress Manual Metallographic Mounting Press 图（6）
Product Features & Applications
Product Feature:
- Manual mechanical pressurization mounting press.
- Keyboard digital controlled of heating, loading, holding, cooling and unloading.
- Safe cooling and mounting separation design.
- Special rotary locking design makes operation more convenient.
- stable and reliable performance.
Product Application:
- Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. XQ is the economic equipment for sample mounting.
Technical Specifications
| Product Name | Metallographic Manual Mounting Press | |
| Model | MPress-1 | MPress-2 |
| Mounting Head | Single | Single |
| Mould Diameter | Φ25mm, Φ30mm, Φ40mm (Choose one) | |
| Cavity Height | 65mm | 115mm |
| Heating Power | 440W | 800W |
| Cooling Method | External Water Source Cooling | |
| Power Supply | 220V, 50Hz, 5A | 220V, 50Hz, 5A |
| Machine Dimensions | 340×260×430mm | 420380×430mm |
| Net Weight | 32kg | 40 Kg |
Standard Configuration
| Name | Qty |
| Machine Mainframe | 1 set |
| Rotary Handle | 1 pc |
| Hotset | 1 pc |
| Counting Cup（XQ-2） | 1 pc |
| Water Inlet Pipe（XQ-2） | 1 pc |
| Water Outlet Pipe（XQ-2） | 1 pc |
| Water Inlet Filter （XQ-2） | 1 pc |
| Funnel（XQ-2） | 1 pc |
| Hoop（XQ-2） | 1 pc |
| Bakelite Powder | 1 bottle |
| Usage Instruction Manual | 1 copy |
Optional Configuration
| Name | Qty |
| Thermoset Mounting Material | Black, White, Green, Red |
| Conductive Mounting Material | Black |
| Circulating Cooling System | Customized |
| Mounting Clamp | Customized |
