MPress-A Metallographic Auto Mounting Press (Hydraulic Pressure)
MPress A图（1）

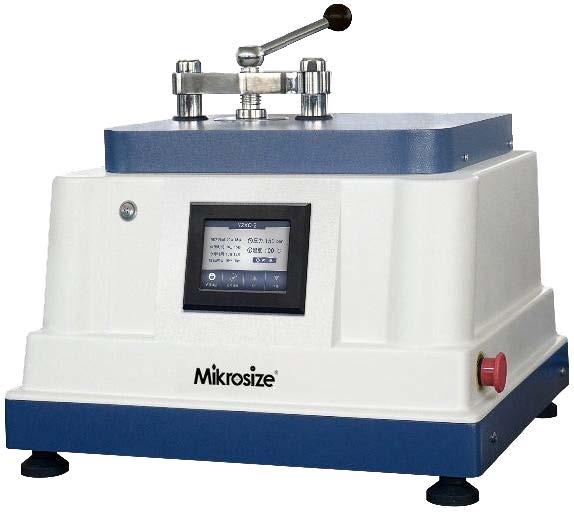

MPress A图（2）

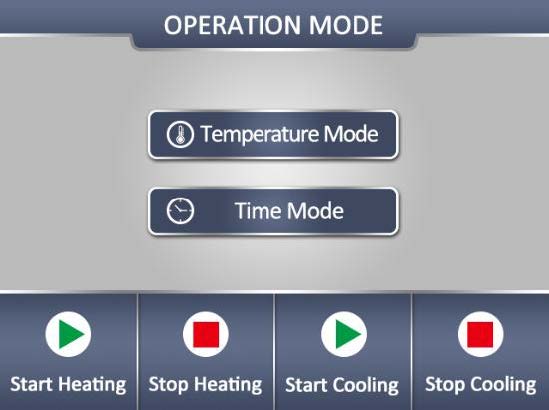

MPress A图（3）
MPress A图（4）

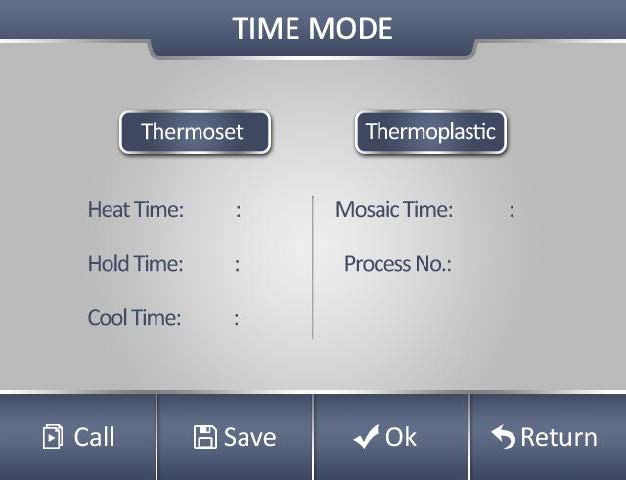

MPress A图（5）

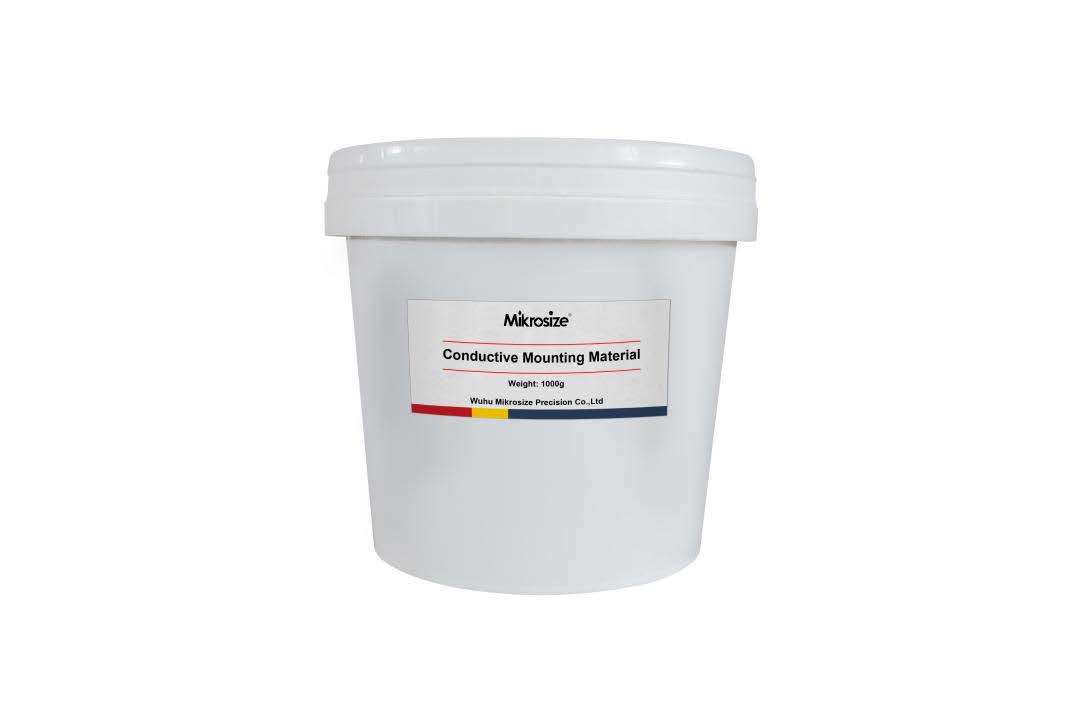

MPress A图（6
Product Features & Applications
Product Feature：
- Advanced hydraulic water-cooling automatic mounting press makes quickly sample mounting.
- Program controlled mounting process, realizing the one-key operation of heating, loading, holding, cooling and unloading.
- Audible and visual alarm function after sample mounted.
- Safe cooling and mounting separation design.
- High definition touch screen, displaying by curve of real-time pressure, temperature.
- Powerful hydraulic pump makes the mounted sample more compact.
- Special rotary locking design makes operation more convenient.
Product Application：
- Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for pro- tecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. MPress-A is the ideal equipment for sample mounting with stable and reliable performance.
Technical Specifications
|
Product Name |
Metallographic Auto Mounting Press |
|
|
Model |
MPress-1A |
MPress-2A |
|
Mounting Head |
Single |
Dual |
|
Mould Diameter |
Ф25mm，Ф30mm，Ф40mm (Choose one) |
|
|
Cavity Height |
108mm, effective 60mm |
|
|
Heating Power |
Ф25mm/Ф30mm 1.2kW; Ф40mm 1.6kW |
|
|
Pressure |
150bar (equivalent to 15Mpa, 150kgf/cm2, not adjustable) |
|
|
Heating Temperature |
50~180℃ (The default is 120℃) |
|
|
Hold Time |
Adjustable (The default is Ф40mm 1min30s, Ф25mm/Ф30mm 1min) |
|
|
Cooling Method |
External water source cooling |
|
|
Power Supply |
220V, 50Hz，10A |
|
|
Machine Dimensions |
520×480×520mm |
650×600×550mm |
|
Net Weight |
60Kg |
105kg |
Standard Configuration
|
Name |
Specification |
Qty |
|
Machine Mainframe |
/ |
1 set |
|
Rotary Handle |
/ |
1 pc |
|
Upper Mould Block |
/ |
1 pc |
|
Pump Breathing Cap |
/ |
1 pc |
|
Water Inlet Pipe |
/ |
1 pc |
|
Water Outlet Pipe |
Ф10mm |
1 pc |
|
Water Inlet Filter Screen |
/ |
1 pc |
|
Hoop |
/ |
1 pc |
|
Bakelite Powder |
500g |
1 bottle |
|
Measuring Cup |
/ |
1 pc |
|
Funnel |
/ |
1 pc |
|
Usage Instruction Manual |
/ |
1 copy |
Optional Configuration
|
Name |
Specification |
|

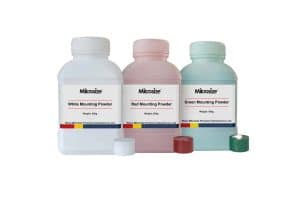

Thermoset Mounting Material |
Black, White, Green, Red |
|
Thermoplastic Mounting Material |
Transparent |
|

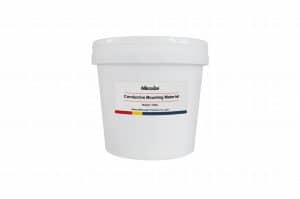

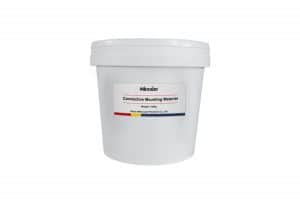

Conductive Mounting Material |
Black |
|
Circulating Cooling System |
Customized. |
|

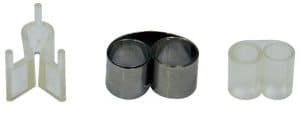

Mounting Clamp |
Customized. |
