MPress-2HA Auto Metallographic Mounting Press (Hydraulic Pressure)
MPress 2HA图1

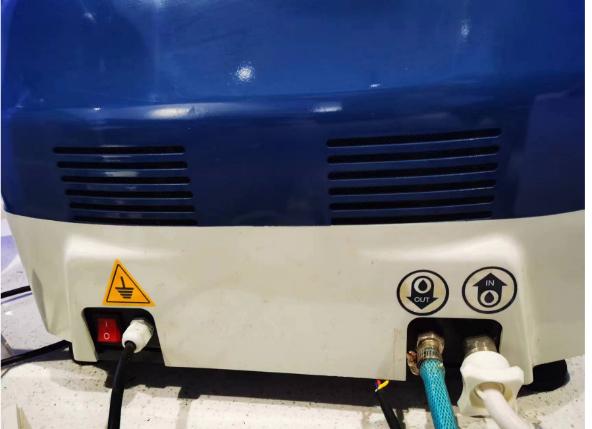

MPress 2HA图2

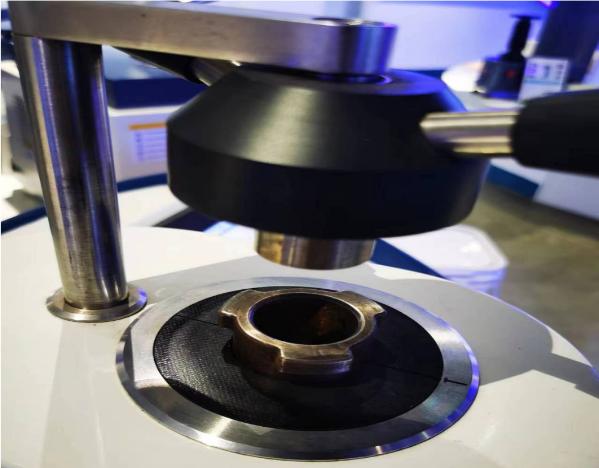

MPress 2HA图3

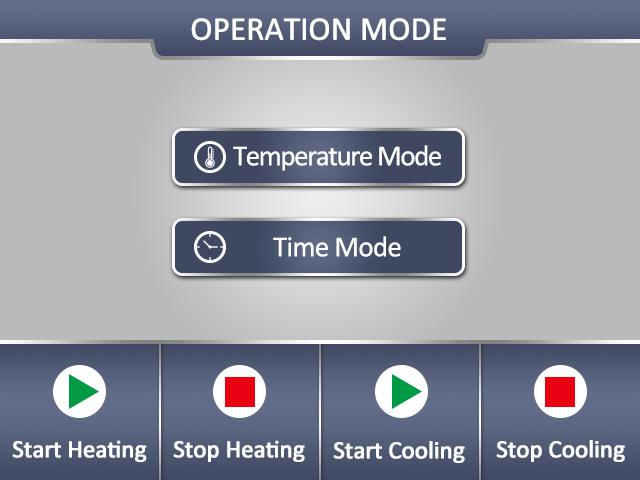

MPress 2HA图4
MPress 2HA图5
MPress 2HA图6
Product Features & Applications
Product Feature：
- MPress-2HA is an advanced hydraulic water-cool- ing automatic sample mounting press.
- Controlled by the one-chip computer program, which realizes the one-key operation of heating, loading, holding, cooling and unloading process.
- The sample mounting is automatically completed without operator on duty.
- The machine adopts hydraulic pump with higher pressure, which makes the sample more compact.
- Lengthened cavity and so two samples can be completed at the same time divided by middle block. Unique cold and heat separation design Plus emer- gency stop.button makes it more safe and stable.
- Dual control of high-definition touch screen and physical keys, various mounting scheme can be saved.
- With water cooling system, it can finish two sam- ples mounting in 7 minutes at the soonest.
Product Application：
- Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for pro- tecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation.
Technical Specifications
|
Model |
MPress-2HA |
|
Product Name |
Automatic Metallographic Mounting Press Ф25mm，Ф30mm， |
|
Mould Diameter |
Ф40mm (Choose one) |
|
Cavity Height |
140mm, effective 85mm, mounting two samples at the same time |
|
Heating Power |
Ф25mm: 1KW Ф30mm 1.8KW Ф40mm 2.4KW |
|
Pressure |
50~200bar (150bar ex-factary set, equivalent to 15Mpa, 150kgf/cm2) |
|
Heating Temperature |
50~180℃ (120℃ ex-factary set) |
|
Heating Time |
1~7min (4min30s ex-factary set) |
|
Dwell Time |
30s~7min (1min ex-factary set) |
|
Cooling Time |
1~30min (2min ex-factary set) |
|
Total Time |
7min30s for two samples Ф30mm, 9min for two samples Ф40mm |
|
Cooling Method |
External water source cooling |
|
Power Supply |
220V, 50Hz，10A |
|
Machine Dimensions |
530×510×480mm |
|
Net Weight |
60Kg |
Standard Configuration
|
Name |
Specification |
Qty |
|
Machine Mainframe |
/ |
1 set |
|
Middle Mould Block |
/ |
1 pc |
|
Water Inlet Pipe |
/ |
1 pc |
|
Water Outlet Pipe |
Ф10mm |
1 pc |
|
Water Inlet Filter |
/ |
1 pc |
|
Hoop |
/ |
1 pc |
|

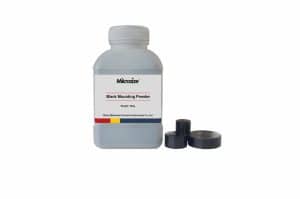

Bakelite Powder |
500g |
1 bottle |
|
Measuring Cup |
/ |
1 pc |
|
Inner Hexagon Spanner |
5mm |
1 pc |
|
Brush |
/ |
1 pc |
|
Usage Instruction Manual |
/ |
1 copy |
Optional Configuration
|
Name |
Specification |
|

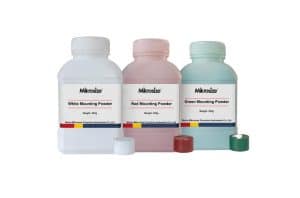

Thermosetting Mounting Material |
Black, White, Green, Red |
|

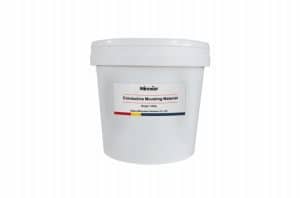

Conductive Mounting Material |
Black |
|
Circulating Cooling System |
Customized. |
|

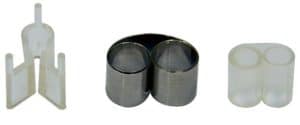

Sample Holder |
Customized. |
