MPress-1MA Auto Metallographic Mounting Press (Motorized Mechanical Pressure)
MPress 1MA图（1）
MPress 1MA图（2）
MPress 1MA图（3）

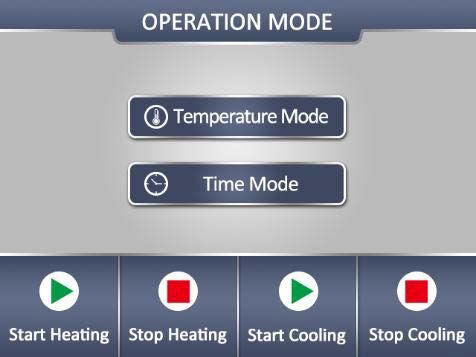

MPress 1MA图（4）
MPress 1MA图（5）
MPress 1MA图（6）
Product Features & Applications
Product Feature：
- Automatic motorized mechanical pressure metal- lographic sample mounting press adopts.
- Program controlled mounting process realizes the one-key operation of heating, loading, holding, cool- ing and unloading process.
- Gear motor with stable pressure.
- Audible and visual alarm function.
- Water cooling system.
- With stable and reliable performance.
Product Application：
- Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for pro- tecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation, MPress-1MA is the ideal equipment for sample mounting.
Technical Specifications
| Model | MPress-1MA |
| Product Name | Auto Metallographic Mounting Press |
| Pressure Method | Motorized Mechanical |
| Mould Diameter | Ф25mm，Ф30mm，Ф40mm (Choose one） |
| Cavity Height | 89mm |
| Heating Power | Ф25mm/Ф30mm:900W; Ф40mm:1.2kW |
| Pressure | 130bar |
| Electromotor Power | 120W |
| Heating Temperature | 50~180℃ (The default is 120℃) |
| Heating Time | 1~7min (The default is 5min30s) |
| Hold Time | 30s~7min (The default is 1min) |
| Cooling Time | 1~30min (The default is 2min20s) |
| Cooling Method | External water source cooling |
| Power Supply | 220V, 50Hz，10A |
| Machine Dimensions | 463×402×430mm |
| Net Weight | 50kg |
Standard Configuration
| Name | Specification | Qty |
| Machine Mainframe | / | 1 set |
| Water Inlet Pipe | / | 1 pc |
| Water Outlet Pipe | Ф10mm | 1 pc |
| Water Inlet Filter Screen | / | 1 pc |
| Hoop | / | 1 pc |
| Bakelite Powder | 500g | 1 bottle |
| Measuring Cup | / | 1 pc |
| Funnel | / | 1 pc |
| Usage Instruction Manual | / | 1 copy |
Optional Configuration
| Name | Specification |
| Termoset Mounting Material | Black, White, Green, Red |
| Termoplastic Mounting Material | Transparent |
| Conductive Mounting Material | Black |
| Circulating Cooling System | Customized |
| Mounting Clamp | Customized |
