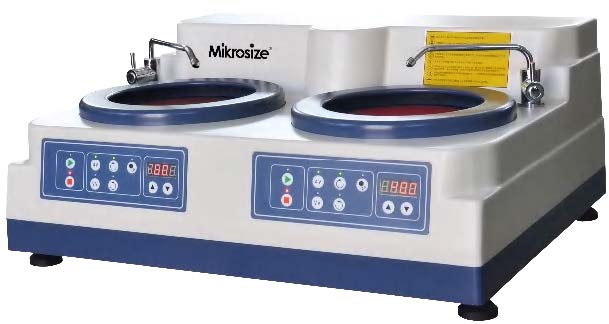

MPoli-230M Metallographic Manual Grinder Polisher (Grinding Polishing Disc Diameter:230mm)

Video Demonstration

Single-chip microcomputer controlled grinding and polishing machine.
ABS material shell is beautiful in appearance, anti-corrosion and durable.
Strong large support chassis design ensures the precision rotary balance.
Stepless speed or four speeds control and rota- tional direction changeable.
DC brushless motor has long service life, low noise and powerful motor brings strong power for efficient grinding polishing experience.
Spindle leak-proof design ensures the bearing without damage.

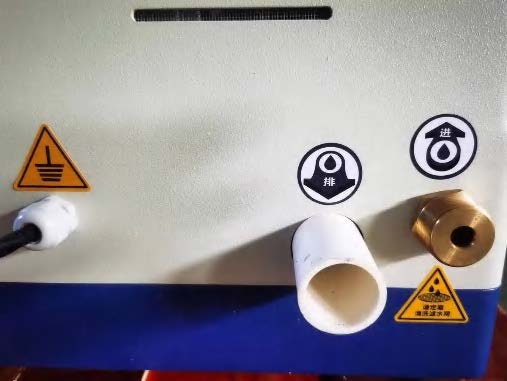

With cooling water, adjustable tube direction for wet grinding.
With washing function at the bottom of the grind- ing disc to prevent the accumulation and precipita- tion of grinding materials.
Only need to change the abrasive paper and pol- ishing cloth, it can complete various sample grind- ing, fine grinding and polishing process.

Model	MPoli-1-230M	MPoli-2-230M
Disc Diameter	230mm	230mm
Abrasive Paper Diameter	230mm	230mm
Speed	Stepless Speed 50~1400r/min, or Four Speeds 300, 600, 900, 1400r/min
Rotational Direction	Clockwise or Counter-clockwise
Electromotor	DC Brushless Motor, 220V, 600W

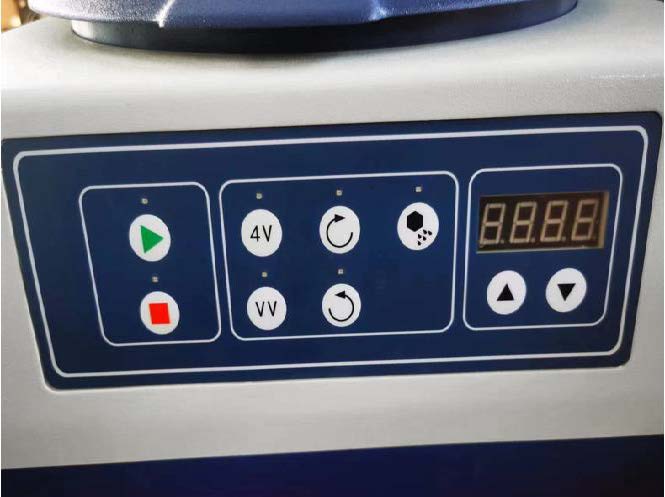

Control and Display	Keyboard Operation , LED Display, With washing function
Power Supply	220V, 50Hz, 6A	220V, 50Hz, 8A
Machine Dimensions	420×660×330mm	757×660×330mm
Net Weight	30kg	57kg
