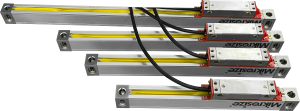

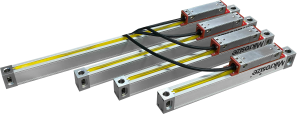

Linear Scale

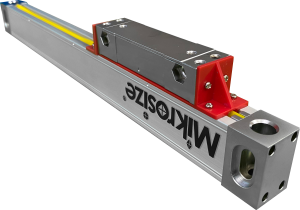

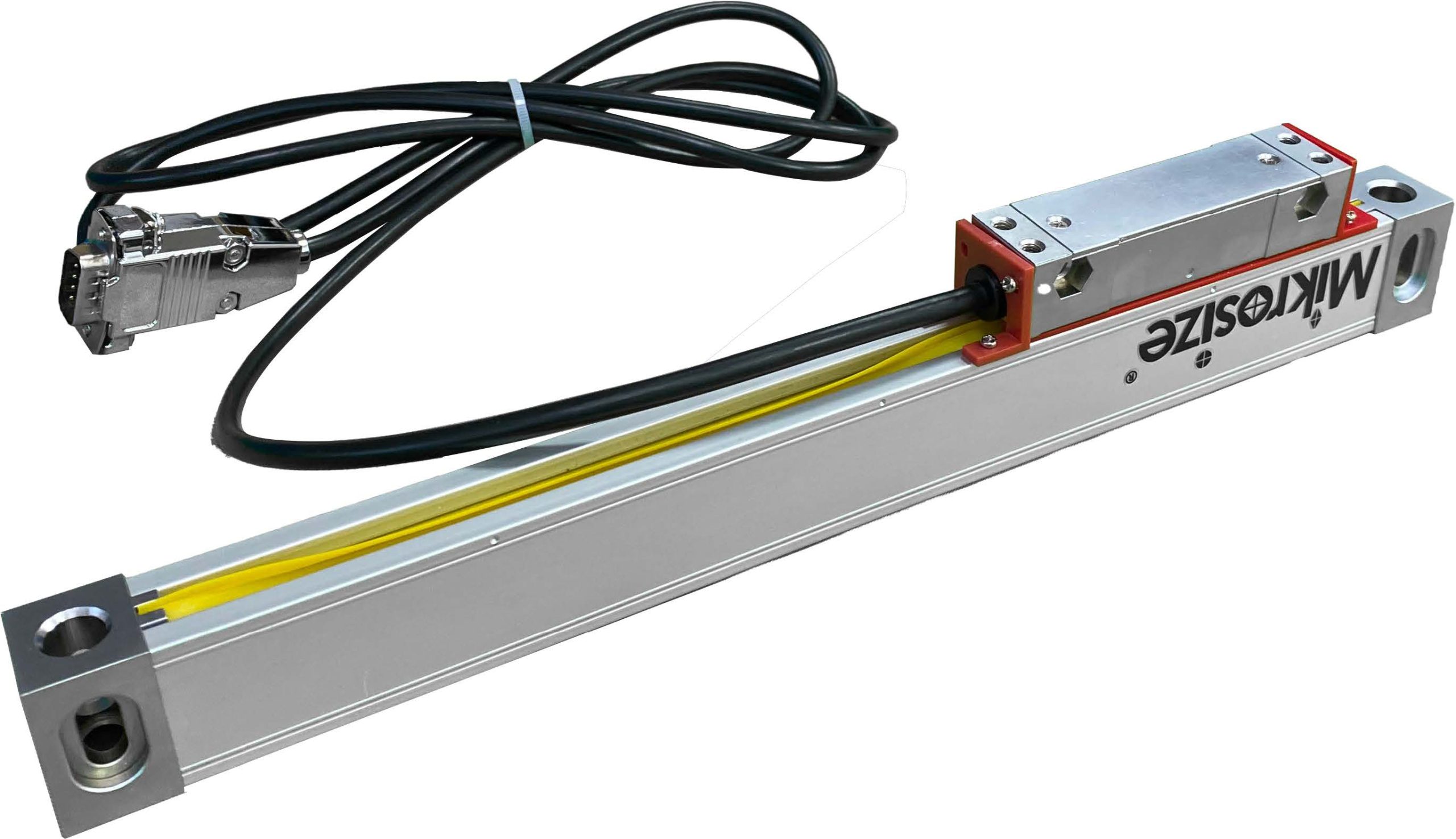

Linear Scale图1 scaled

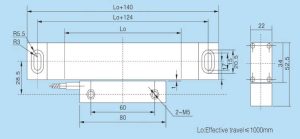

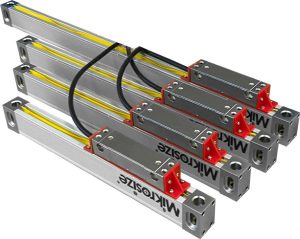

Linear Scale图2
Linear Scale图1 scaled

Linear Scale图1 scaled

Linear Scale图2

Linear Scale图2

Technical Specifications

Model MLS-400

MLS-600

 MLS-1000 MLS-3100
Optional Grating Pitch 20um(0.020mm),10um(0.010mm)
Optional Grating

Measurement System

 Transmission infrared optical measurement system;

infrared wave length:880nm;
Numerical Reading Head

Rolling System

 Vertical five bearing roller system 45°five bearing

roller system
Resolution 1um 5um 1um 5um 1um 5um
Effective Range 50~600mm

50~400mm(MLS-400)

 50~1000mm 50~3100mm
Repeatability Accuracy ±1um ±5um ±1um ±5um ±1um ±5um
Maximum Working Speed 20m/min(1um);60m/min(5um)
Output Signal TTL;RS422;~1VPP
Power Supply 5V±5%DC
Environment Temperature:-10~45°C;Humidity≤90%

  • Milling machines, drilling machines, lathes, grinders, CNC machines, injection molding machines, machining centers, electrical discharge machining machines

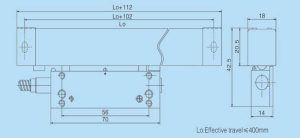

MLS-400

Model

Resolution

Effective range

Maximum working speed

 Accuracy
Standard High-Precision
MLS-4001 1um 50~400mm 20m/min ±5um ±3um
MLS-4005 5um 50~400mm 60m/min ±5um ±3um


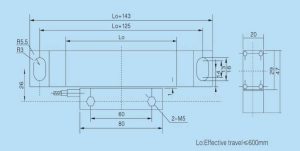

MLS-600

Model

Reso- lution

Effective range

 Maximum working speed Accuracy
50~500mm 510~600mm
Standard High-Precision Standard High-Precision
MLS-6001 1um 50~600mm 20m/min ±5um ±3um ±8um ±5um
MLS-6002 2um 50~600mm 60m/min ±5um ±3um ±8um ±5um
MLS-6001 0.5um 50~600mm 10m/min ±5um ±3um ±8um ±5um
MLS-60002 0.2um 50~600mm 10m/min ±5um ±3um ±8um ±5um
MLS-60001 0.1um 50~600mm 10m/min ±5um ±3um ±8um ±5um

MLS-1000

Model

Reso- lution

Effective range

 Maximum working speed Accuracy
50~500mm 510~1000mm
Standard High-Precision Standard High-Precision
MLS-10001 1um 50~1000mm 20m/min ±5um ±3um ±8um ±5um
MLS-10002 2um 50~1000mm 60m/min ±5um ±3um ±8um ±5um
MLS-100005 0.5um 50~1000mm 10m/min ±5um ±3um ±8um ±5um
MLS-100002 0.2um 50~1000mm 10m/min ±5um ±3um ±8um ±5um
MLS-100001 0.1um 50~1000mm 10m/min ±5um ±3um ±8um ±5um

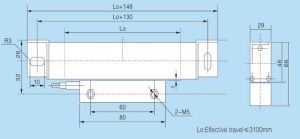

MLS-3100

Model

Reso- lution

Effective range

 Maximum working speed Accuracy
50~500mm 510~1000mm 1010~2000mm 510~1000mm
Standard High

Precision

 Standard High-

Precision

 Standard High-

Precision

 Standard High- Precision
MLS-31001 1um 50~3100mm 20m/min ±5um ±3um ±8um ±5um ±30um ±20um ±50um± 34um
MLS-31005 5um 50~3100mm 60m/min ±5um ±3um ±8um ±5um ±30um ±20um ±50um± 34um
