Product Features & Applications

Product Features:

  • Back-illuminated CMOS sensor, adaptively switch between 4K and 1080P, providing clear imaging and high resolution.

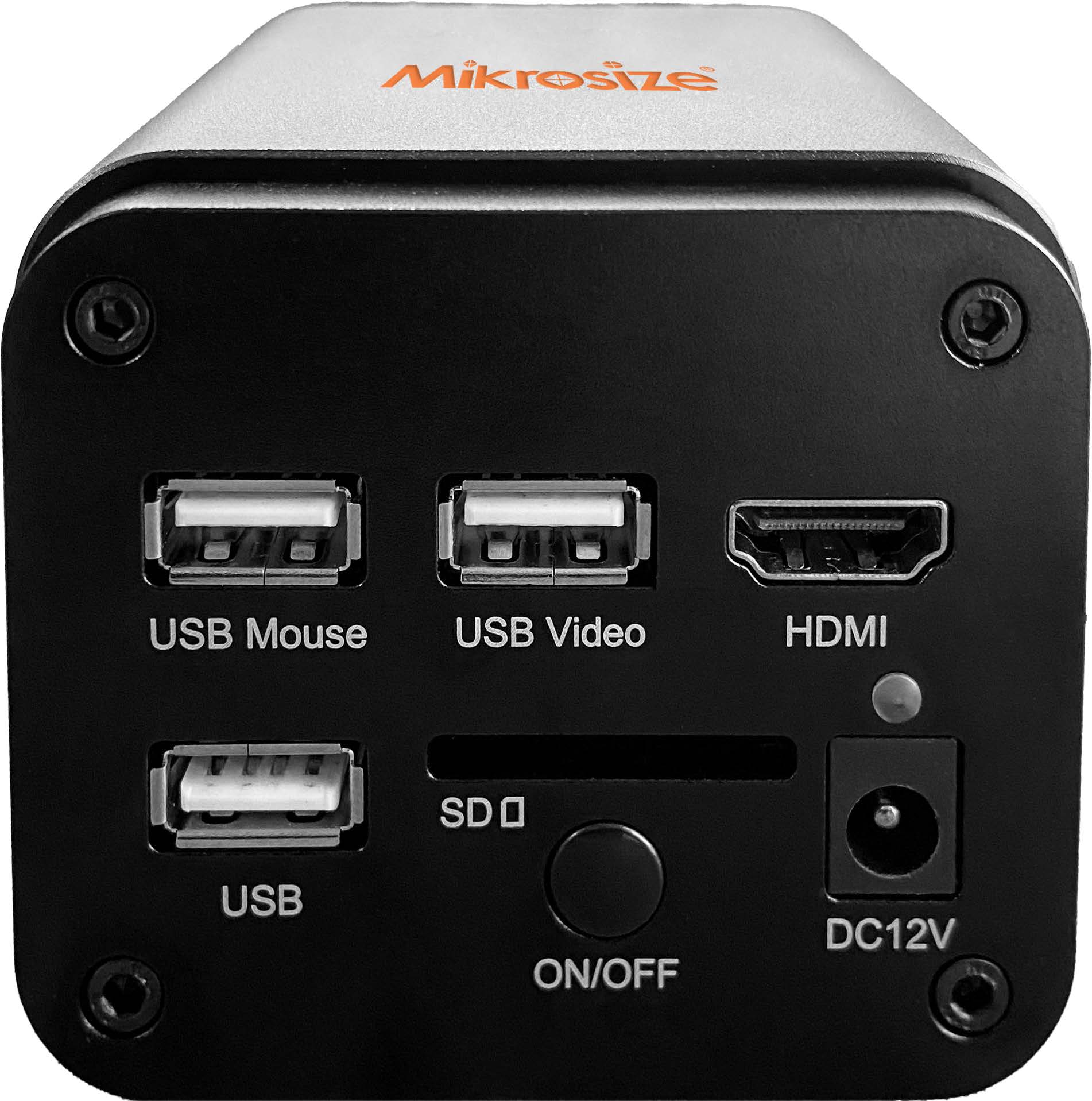

  • It has multiple interface outputs such as HDMI and USB, offering various connection methods and being adaptable to a variety of devices for flexible use.

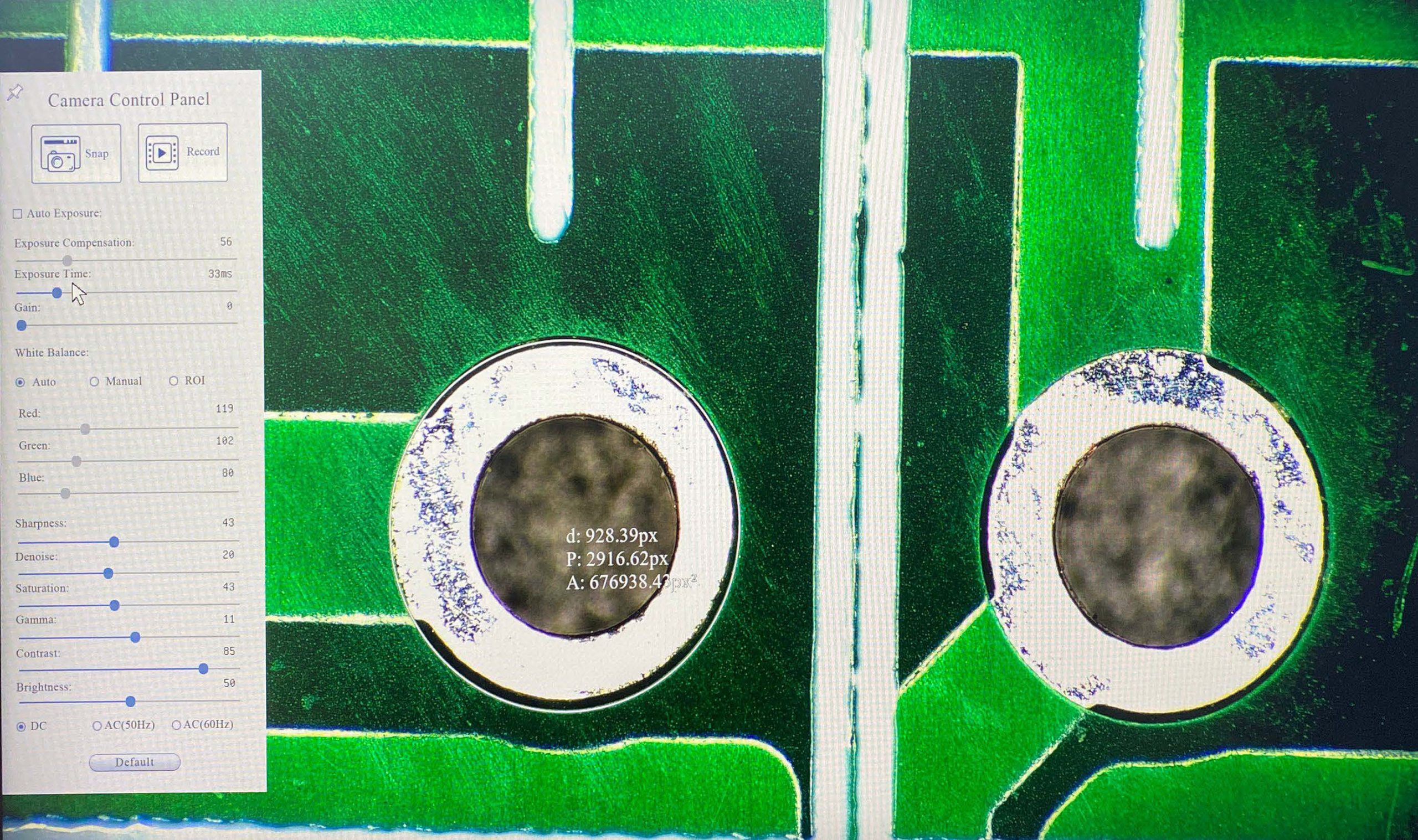

  • Powerful ISP function, supporting multiple adjustments such as automatic/manual exposure and white balance to optimize the image.
  • Powerful software functions and convenient operation, it sup- ports multiple languages for different users.
  • It supports storage via SD card and USB flash drive, with the SD card priority.Convenient storage and ensures data security.
  • Camera has strong adaptability to working environment, working temperature ranging from -10℃ to 50℃ and a humidity of 30% to 80% RH.
Product Application:
  • High-definition imaging and measurement functions, it can accurately detect product defects.
  • Industrial inspection field. Various image adjustment functions, assisting in the inspection of industrial parts.
  • Scientific research. High resolution and powerful functions provide clear images for scientific research observations.
  • Education field. It is convenient for teachers to display micro- scopic structures and assist in the implementation of teaching activities.
  • Video collection of stereo microscopes, recording the experi- mental process ,facilitating analysis and research.
  • Image collection of biological microscopes, meeting image acquisition in biological research and teaching.

Technical Specifications

Magnification Ratio(27-inch Monitor)

54.3X-349.4X

Objective Lens

0.7X~4.5X The back focal length is adjustable, and the magnification ratio can be fixed.

LED ring light source

Maximum Diameter is 65mm. Central Diameter is 40mm.

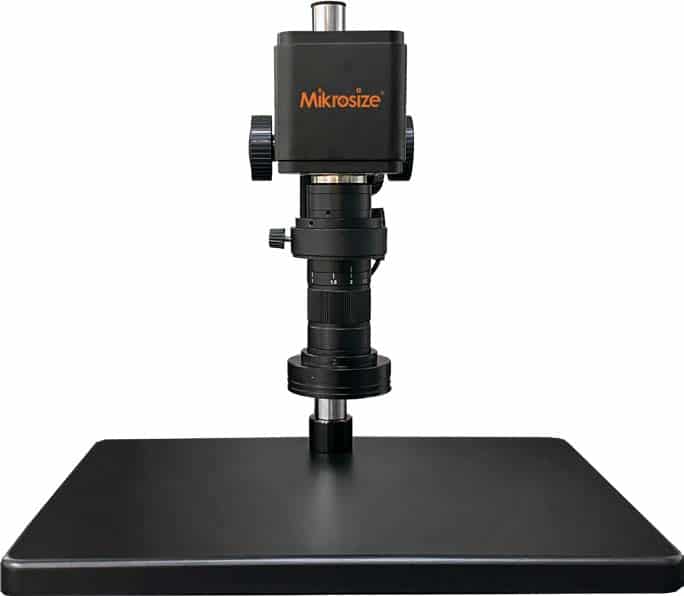

Bracket

Column Aperture

25mm

Lens Aperture

50mm

Apertures Central Distance

140mm

Lifting Range

62mm

Support

Base Size

380*248*23 mm

Column Height

340mm

Column Diameter

25mm

Standard Configuration

Name

Qty

Camera

1 pc

Power Adapter

1 pc

Power Adapter for LED Light Source

1 pc

LED Light Source

1 pc

USB Mouse

1 pc

HDMI Cable

1 pc

2M USB 2.0 Cable

1 pc

CD (Drivers and Appli- cation Programs)

1 pc
