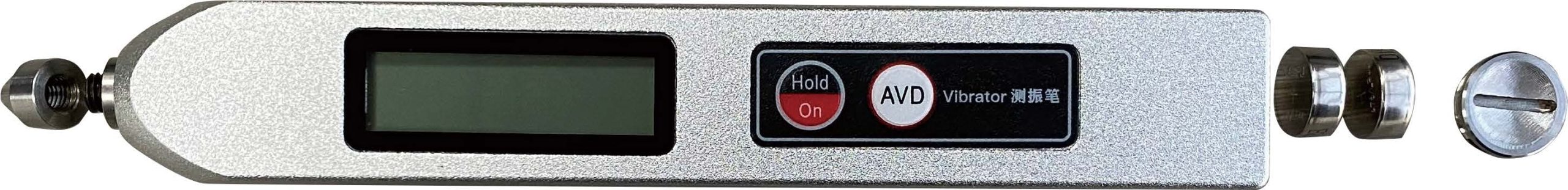

iVibra-100 Pen Type Portable Vibration Tester
iVibra-100 Pen Type Portable Vibration Tester（1）
iVibra-100 Pen Type Portable Vibration Tester（2）
iVibra-100 Pen Type Portable Vibration Tester（3）
iVibra-100 Pen Type Portable Vibration Tester（4）
iVibra-100 Pen Type Portable Vibration Tester（5）
iVibra-100 Pen Type Portable Vibration Tester（6）
Video Demonstration
Product Features & Applications
Product Features：
- Dot matrix LCD display with AVD display function and high-frequency acceleration display function, capable of conducting simple fault diagnosis;
- Compact size with a robust casing, offering excellent electromagnetic interference resistance;
- Powered by two LR44 batteries for ultra-low power consumption;
- All operations can be completed with just two buttons, simple and easy to understand;
Product Applications：
- Vibration detection for various types of operating mechanical devices;
- Provides quantitative vibration dVWcl6lwmkI8ata for equipment maintenance personnel;
- Capable of detecting vibrations in components such as automobile engines, transmissions, and drive shafts;
Technical Specifications
| Measurement Parameters | Acceleration, velocity, displacement |
| Measurement Range | Acceleration:0.1m/s2-290.0m/s2(peak value) |
| Velocity:0.1mm/s-290.0mm/s(valid value) | |
| Displacement:0.001mm-2.900mm(peak-peak value) | |
| Frequency Range | Acceleration:10Hz~1kHz(LO), 1kHz~15kHz(HI) |
| Velocity:10Hz~1kHz | |
| Displacement:10Hz~500Hz | |
| Measurement Error | ±5%±2 |
| Display | LCD display |
| Battery | Two LR44 button batteries |
| Working Hours | Continuous work for about 4 hours,intermittent use about 300 times |
| Use Environment | Temperature: 0℃~40℃ |
| Relative humidity<85% | |
| Size | 152×22×16mm |
| Weight | 90g |
Standard Configuration
| Items | Qty |
| Main Unit | 1 |
| Neck Strap | 1 |

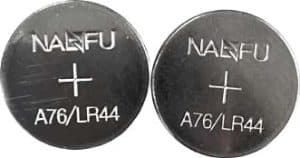

| LR44 Battery | 2 |
| Screwdriver | 1 |
| Leather Case | 1 |
| Packing box | 1 |
| Manual | 1 |
| Certificate | 1 |
| Warranty card | 1 |
| Packing card | 1 |
