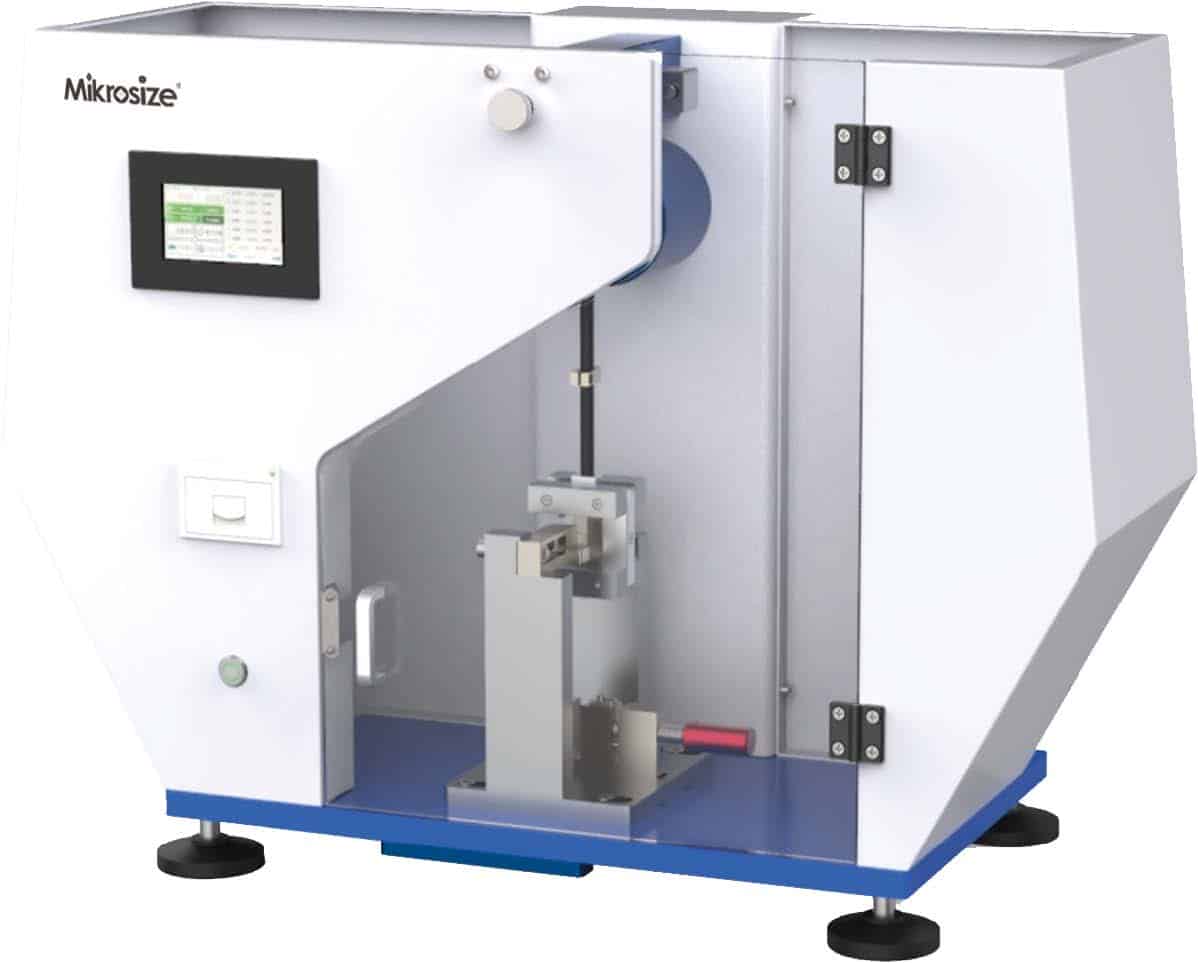

ITM-5/ITM-50/ITM-5-50 Digital Display Combined Cantilever and Charpy Impact Testing Machine

Product Feature：

• Integrated cantilever beam and Charpy impact testing without disassembling fixtures and specimen supports;
• High-precision intelligent controller equipped with LCD display for intuitive and accurate data reading;
• Carbon fiber pendulum rod used on the impact hammer to improve material rigidity and concentrate impact mass at the center of gravity of the pendulum, achieving vibration-free impact testing with extended service life;
• Imported high-resolution digital encoder adopted for higher and more stable angle measurement accuracy;
• Impact hammer designed according to aerodynamic principles and imported ball bearings reduce friction losses from mechanical components;
• Automatic result calculation; test data can be saved for 20 groups with automatic averaging;
• Chinese and English operation interfaces selectable; test results can be displayed in J/m, kJ/m², kg·cm/cm, ft·lb/in, and other units;
• Brake device equipped to greatly improve safety and testing efficiency.

Product Application：

• The Digital Display Combined Cantilever and Charpy Impact Testing Machine is used for determining the impact toughness of non-metallic materials such as plastics, reinforced nylon, glass fiber reinforced plastics (FRP), ceramics, cast stone, plastic electrical appliances, and insulating materials. It is commonly used equipment for quality inspection by scientific research institutions, universities and colleges, and non-metallic material manufacturers. This machine features simple structure, convenient operation, and high testing accuracy.
• ISO 179 “Plastics—Determination of Charpy Impact Strength of Rigid Materials”
• ISO 180 “Plastics—Determination of Izod Impact Strength of Rigid Materials”
• GB/T 1043 “Rigid Plastics—Charpy Impact Test Method”
• JB/T 8762 “Plastics Charpy Impact Testing Machine”
• JB/T 8761 “Plastics Izod Impact Testing Machine”
• GB/T 18743 “Thermoplastics Pipes for the Transport of Fluids—Charpy Impact Test Method” (Applicable to pipe fittings)
