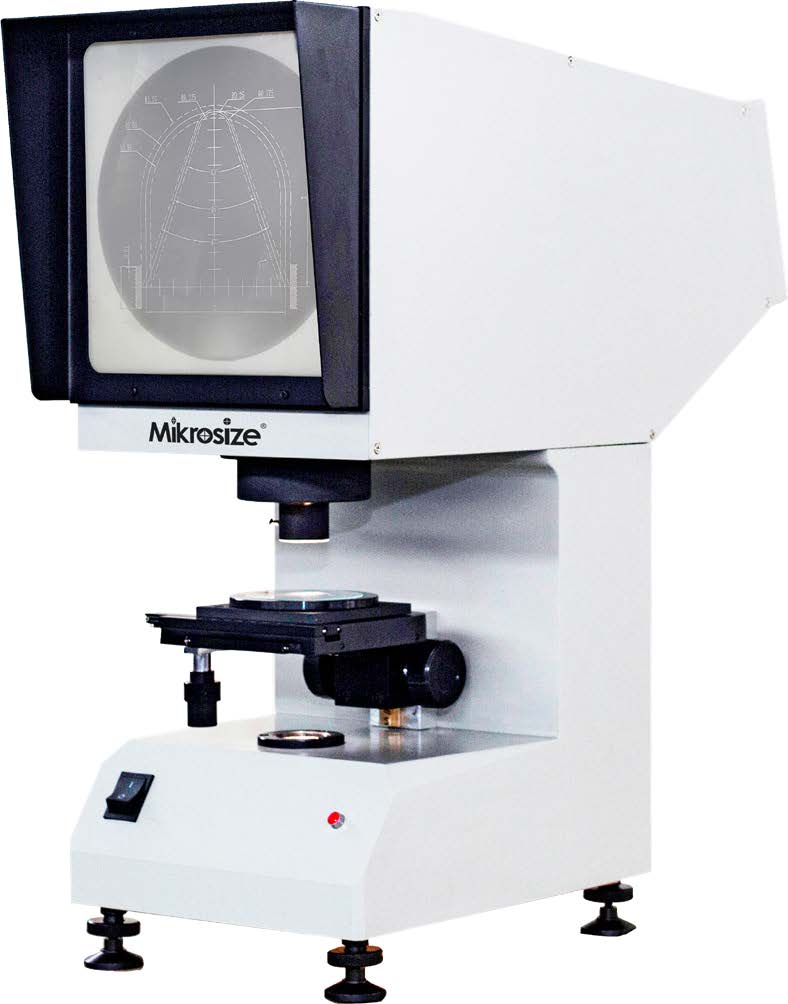

iProjec-50 Impact Specimen Notch Projector

Product Features:

• Complying with national standards and user requirements, it is designed in accordance with GB/T229-2007, specifically for inspecting the V and U notch shapes, precisely meeting the quality inspection needs for metal impact test specimens.

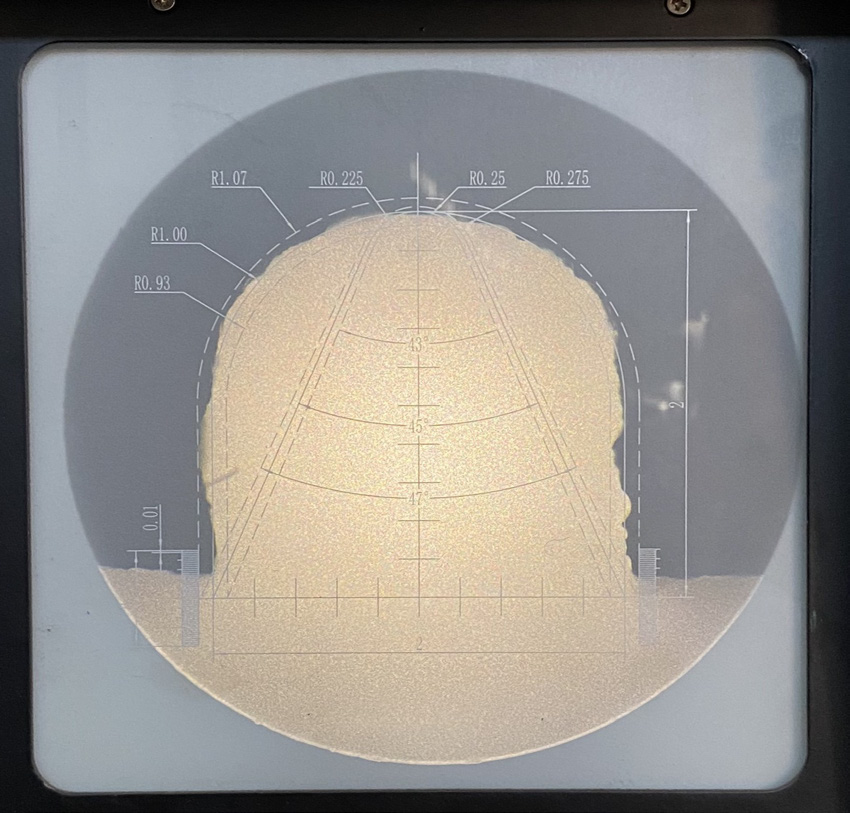

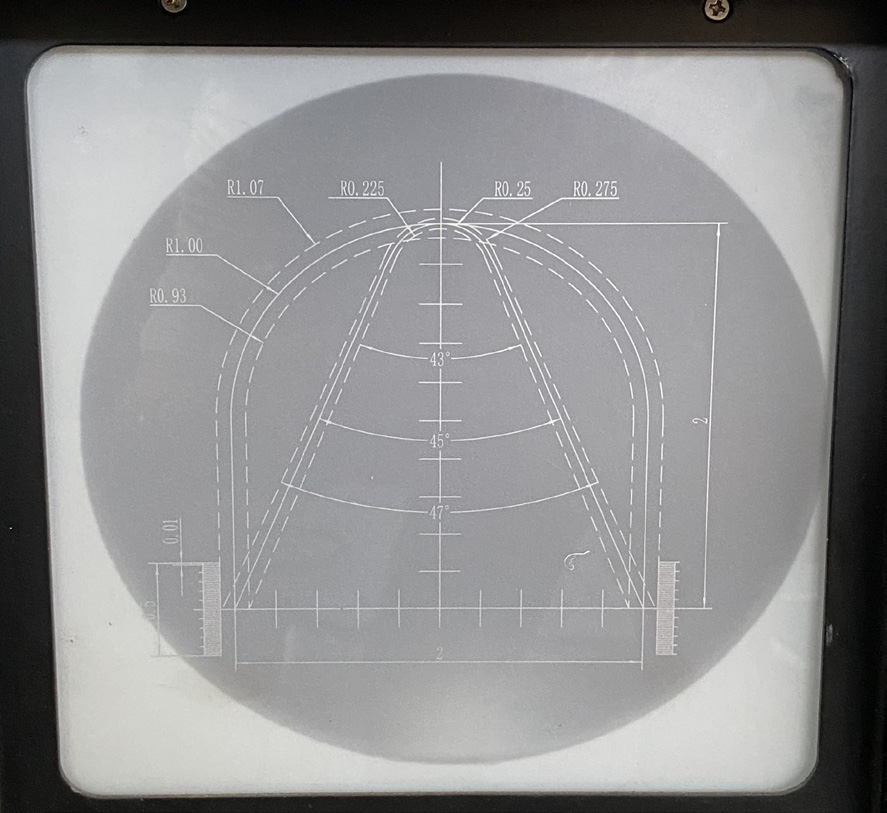

• Using the optical projection method, the outline of the notch is enlarged and projected onto the screen. It is then compared with the standard sample diagram on the screen. The detection process is intuitive and makes it easy to determine whether the sample is qualified.
• The operation process is simple and does not require complex professional skills. Staff members can get started with it after a brief training and can quickly carry out the sample notch detection work.
• The detection efficiency is high, and the single detection time is short. It can quickly complete the screening of individual or batch samples, and is suitable for high-frequency detection scenarios in enterprises, laboratories, etc.

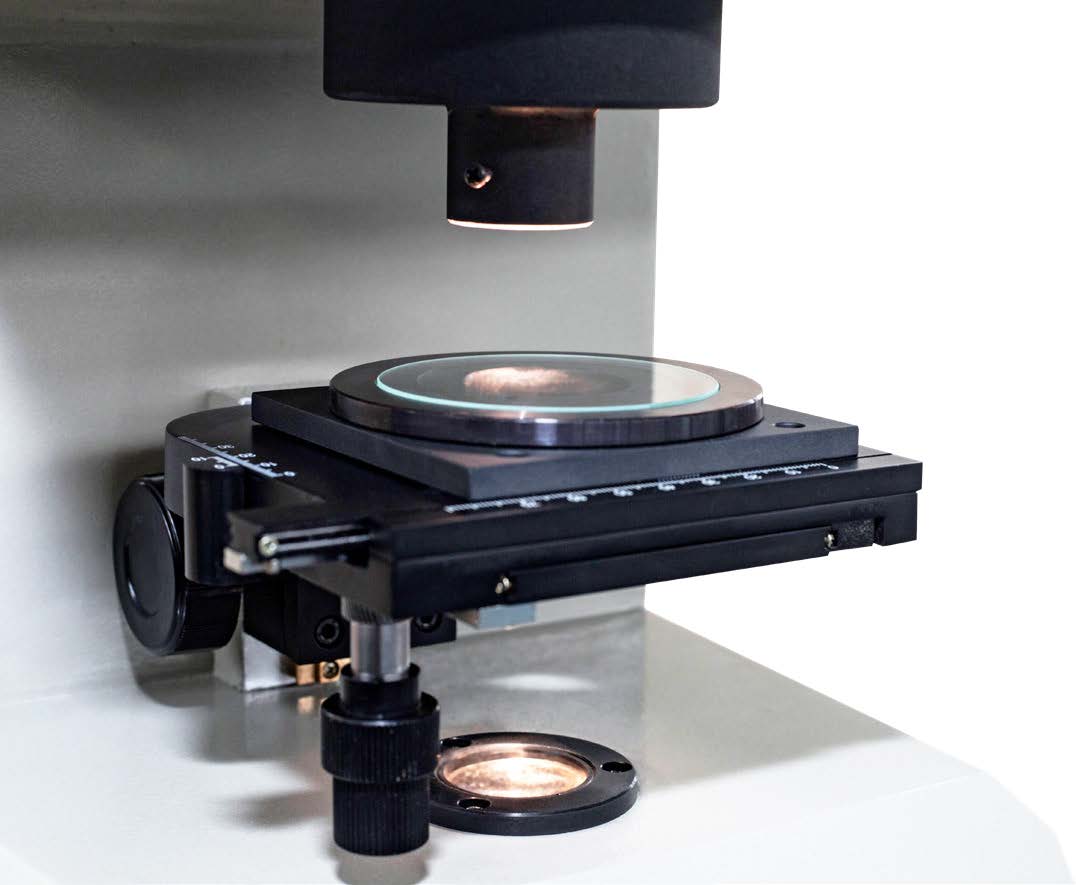

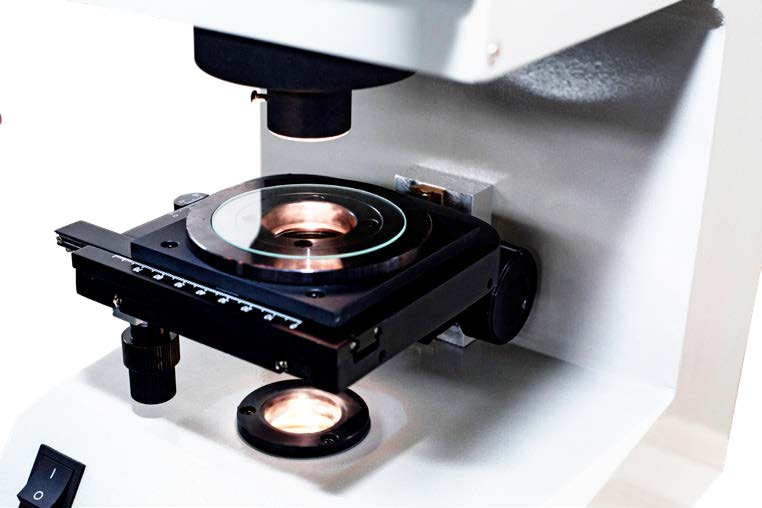

• The workbench is highly adjustable, with travel ranges in both the vertical and horizontal directions, as well as for elevation. It can also rotate 360 degrees and precisely locate different test specimen notch positions.
• Equipped with backup halogen lamps and a base adjustment button, it can handle sudden failures of the light source, ensuring the continuous operation of the equipment. It also allows for leveling the instrument to ensure precise detection.

Product Applications:

• For steel enterprises, it is used to inspect the notches of the Schmidle V/U impact test specimens, ensuring that the quality of the test specimens is qualified before the steel impact performance is tested.
• In the field of mechanical manufacturing services, verify the processing quality of the notches on the impact test specimens of key components to avoid misjudging the performance of the components.
• Help third-party material testing institutions to efficiently complete the compliance screening of the notches on metal material impact test specimens, thereby improving the testing efficiency.
• Applied in the material laboratories of research institutions, it provides pre-detection support for the quality of sample notches used in metal material impact tests;
• Suitable for the automotive industry, it is used for detecting the impact test notch of components such as the vehicle body frame, ensuring the safety performance of automotive materials.
