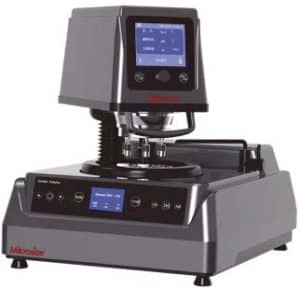

iPoli-SC-250A AUTO METALLOGRAPHIC GRINDING POLISHING MACHINE

Video Demonstration

Suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples.
Ideal sample making equipment for laboratories of enterprises, scientific research institutions and colleges and universities.

Single/Dual disc desktop machine.

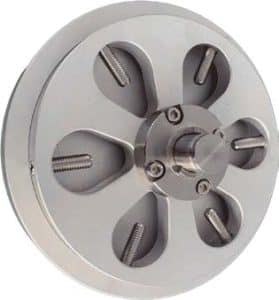

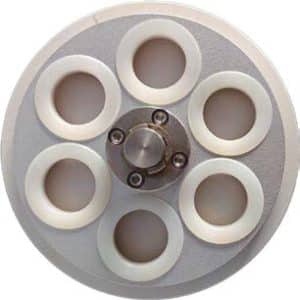

Pneumatic central and single force,multi-sample clamp.
Equipped with electronic proportional valve,grinding pressure can be adjusted directly without poles.

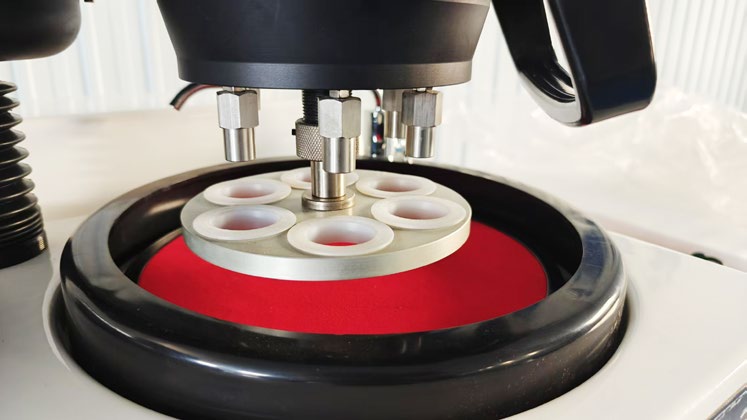

Selected grinding disc rotation direction, grinding disc or sandpaper and polishing cloth, can be quickly replaced.

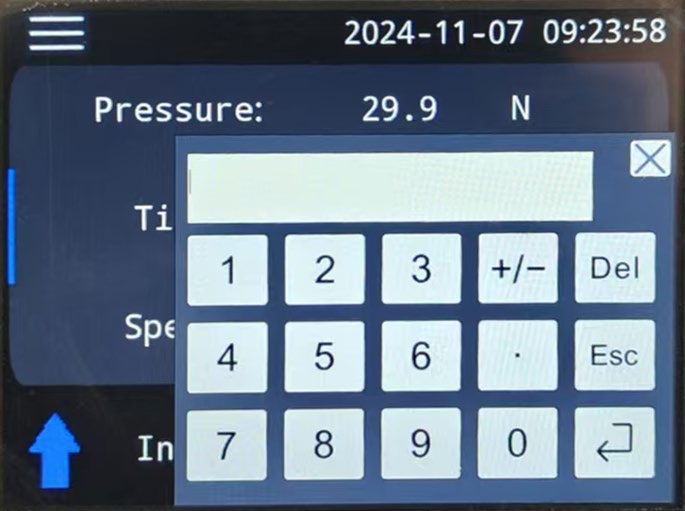

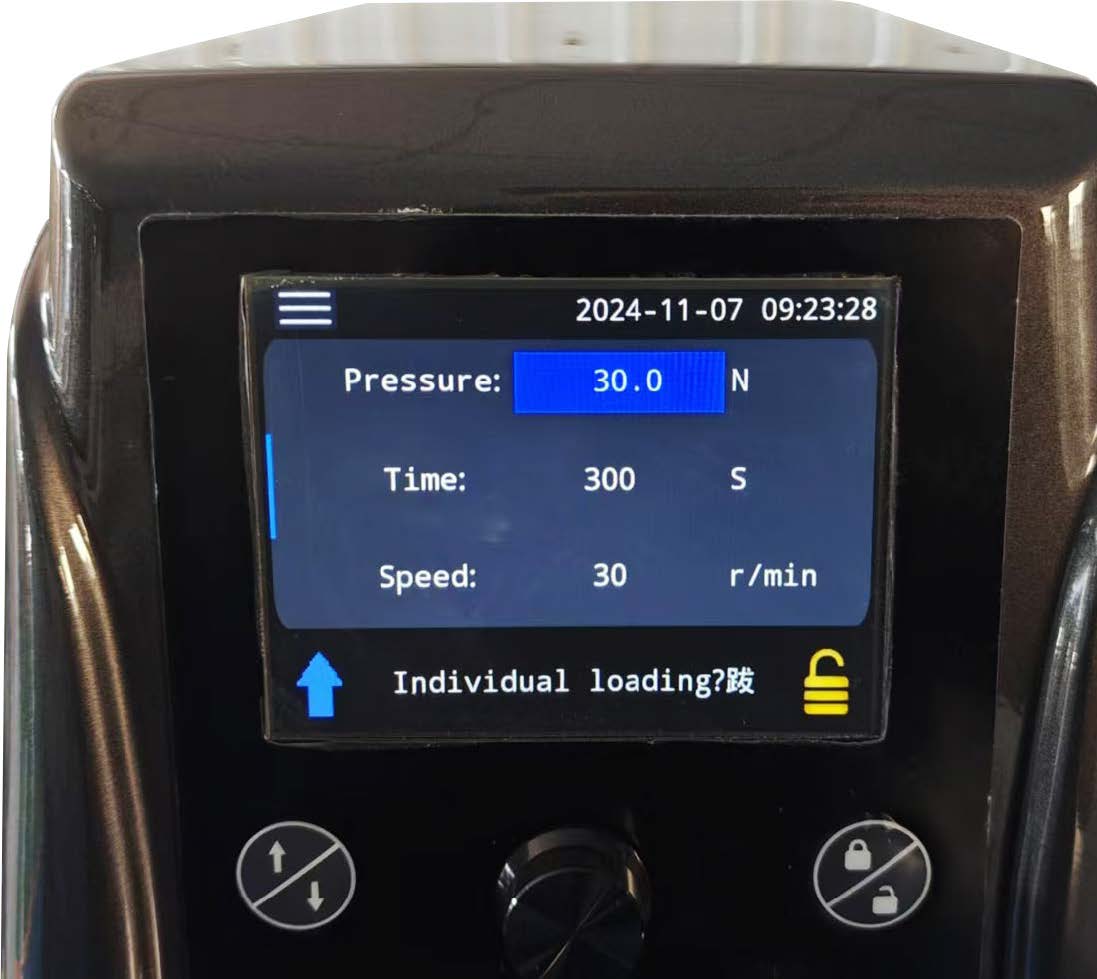

Advanced microprocessor control system, adjustable grinding speed,the setting of sample pressure and time is intuitive.
Casting aluminum base,stable rotation, safe and reliable, low noise.

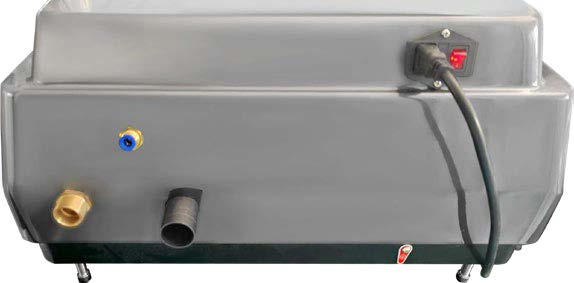

With water cooling device to prevent the sample micro- structure being damaged and washing away the abrasive particles.
FRP shell and stainless steel standard parts,easy to clean, improving anti-corrosion and anti-rust performance.

Product Name	Auto Metallographic Grinding Polishing Machine
Model	iPoli-1SC-250A	iPoli-2SC-250A
Disc Type	Single	Dual
Polishing Disc Diameter	φ250mm（Customized φ230mm、φ300mm）
Polishing Disc Rotation Speed	50-1000 rpm Stepless
Polishing Disc Rotation Speed	300/600/900 rpm(Three constant speed)
Grinding Disc Steering Position	Adjustable Clockwisely or Counter-clockwisely
Grinding Head Speed	5-150 rpm Stepless	5-150 rpm Stepless
Sample Holder Qty	4 pcs	6pcs
Loading Range	0.4-0.7Mpa
Polishing Sample Diameter	φ30mm(Custom-izedφ22-φ45mm)	φ30mm(Custom-ized φ22-φ45mm)
Control Method	Single disc/Single control	Dual discs/Single control
Voltage Supply	AC220V 50Hz
Power Supply	1.1KW
Machine Dimension	550760640mm	735570590mm
Net Weight	60kg	100kg
Gross Weight	82kg	102kg
Sample Preparation Time	0-3000 S
Sample Pressure	Single Force:20-70N, Central Force:0-300N
