Product Features & Applications

Product Features：

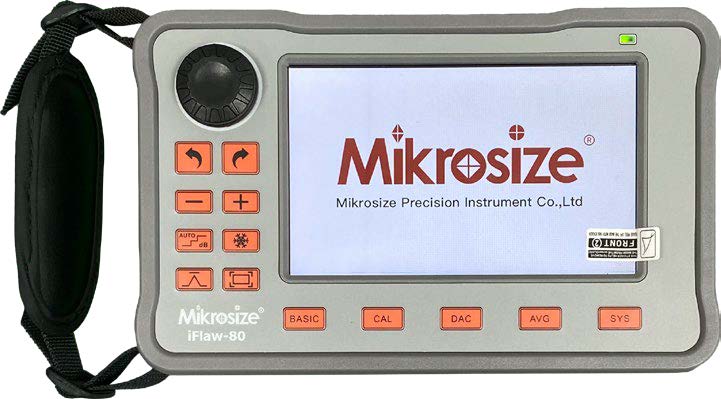

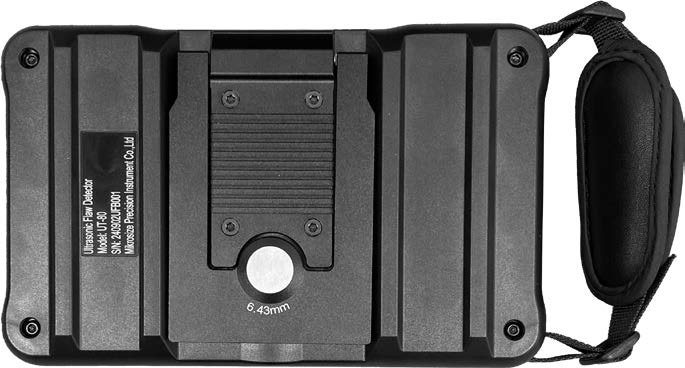

The body is lightweight and suitable for one-handed operation.
PD65W fast charge + 12 hours long battery life.
5.0-inch IPS high-definition display with a brand new UI interface.
Support full-screen touch, quick gesture operation, virtual keyboard, easy to use

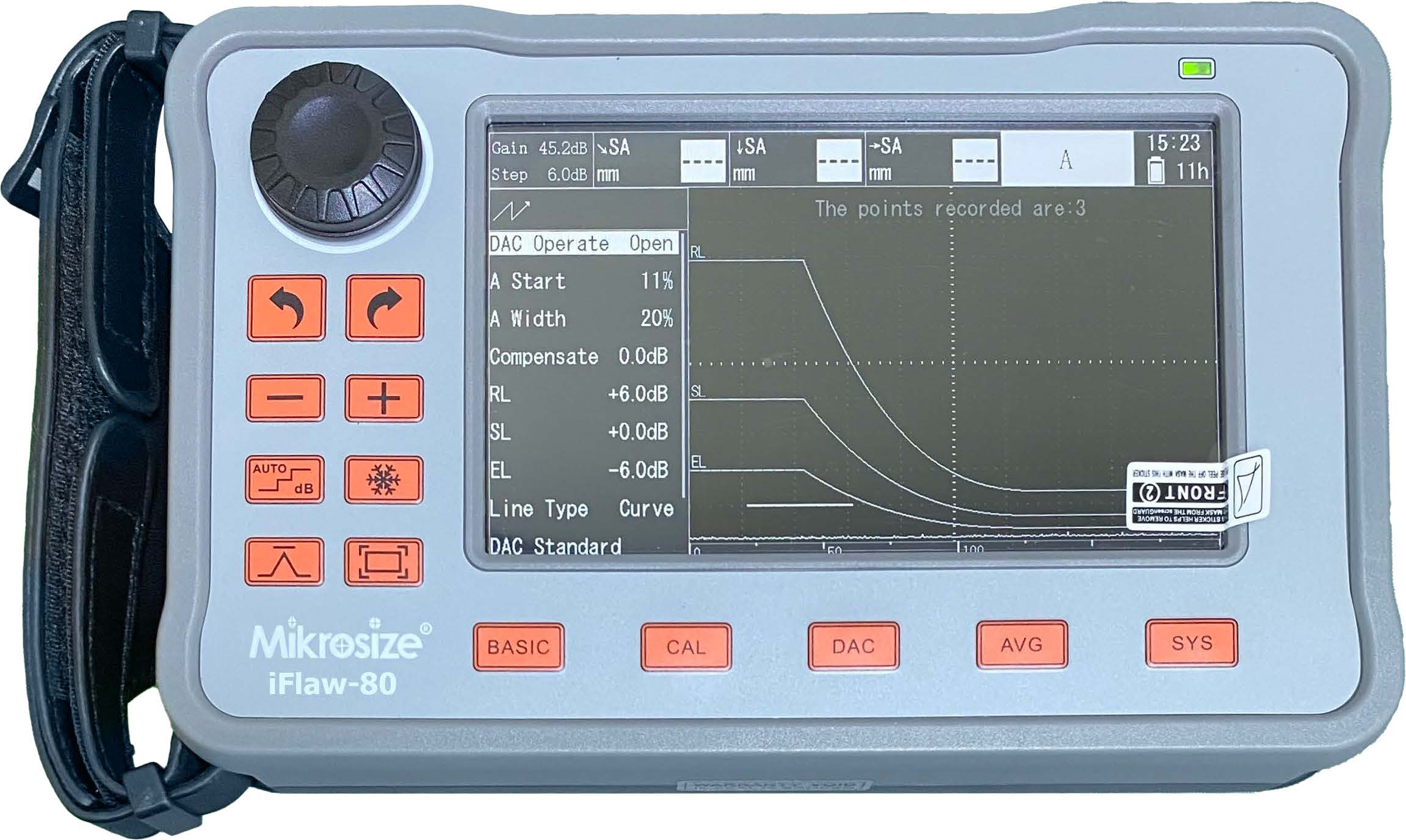

With DAC, AVG, automatic gain, peak memory, color half-span, B-scan and other professional functions.
Including Chinese and English switching, data export to SD card, online upgrade, screen capture and many other practical functions.

Product Application：

Mechanical manufacturing: Testing mechanical equipment components and large castings and forgings
Petrochemical industry: Used for equipment such as pipelines and pressure vessels
Aerospace: Flaw detection for key components of aircraft and spacecraft
Steel structure inspection: Inspect welds, bolt connections, and other parts
Concrete structure inspection: Exploring defects such as cracks and voids
Track inspection: Flaw detection of steel rails
Vehicle detection: Detecting key components of trains, subways, and other vehicles
Special equipment testing: Flaw detection for boilers, elevators, etc
Cultural relic preservation: To inspect the internal structure of cultural relics, providing solutions for restoration without damaging their

Technical Specifications

Bandwidth	0.1MHz~20MHz
Gain	120dB,pace 0.1dB,0.6dB,1dB,2dB,6dB
Wave filter	Broadband,1M,1.25M,2.5M,5M,10M,15M,1M-5M
Sampling rate	Hardware sampling rate 100MSPS,equivalent sampling rate 400MSPS
Detection mode	Full wave, positive half wave, negative half wave, RF, envelope
Detection range	20 meters (longitudinal wave carbon steel),pace 100mm、10mm 、0. 1mm
Sound velocity range	25V~300V,25V pace
Pulse mode	Sharp pulse, square wave, dual-square wave
Pulse voltage	25V~300V , 25V pace
Pulse width	0ns~500ns continuously adjustable,5ns pace
Emission damping	Strong,weak adjustable
Pulse frequency	Automatic or manual, automatic range(200Hz-1KHz),manual range(0-10KHz)
Probe channel	200 groups, supporting operations such as creating, previewing, deleting, renaming, overwriting, and restoring
Gate alarm	Gate A and B alarm, lost wave/incoming wave
Gate mode	Independent gate A, gate B
Measurement mode	Peak, Front edge, J Front edge
Quantitative mode	DAC curve ,AVG(DGS) curve
Flaw detection standards	AWS D1.1/D1.5,NB/T 47013,GB/T 29712,GB/T 11345
Saving content	Single frame, multi-frame recording (≤ 500 frames), screenshot,flaw detection report
Auxiliary functions	Automatic gain, peak memory, waveform freezing, channel management, gate alarm, gate expansion, automatic gate, full screen touch, virtual keyboard, color half span, quick screenshot,channel import/export
Display screen	5.0 inch 800×480 IPS_LCD

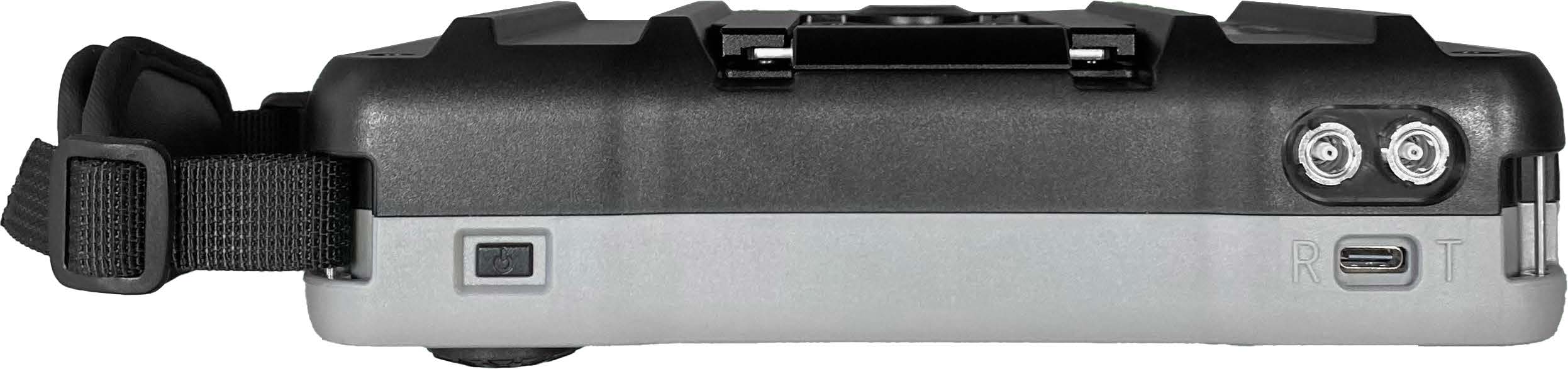

Probe interface	Dual LEMO-00 C5
Output interface	Type-C1,MINI USB
Data storage	8GB SD card
Charger	30W_PD fast charging ,standard Type-C interface(100～240V,50～60Hz)
Size	183mm×113mm×45mm
Weight	700g,including battery but not rubber sleeve
Language	Chinese, English,Russian
Unit	Metric system ,Imperial system
Battery	7.4V 8000mAh Lithium battery, 12 hours of battery life
Operation temperature	-10℃~55℃
Relative humidity	(20~95)%RH
Resolution ratio	30dB(Metrological performance requirements: ≥26dB)
Dynamic range	35dB(Metrological performance requirements: ≥26dB)
Sensitivity margin	55dB(Metrological performance requirements: ≥42dB)
Vertical linearity	1.2%(Metrological performance requirements: ≤6%)
Horizontal linearity	0.15%(Metrological performance requirements: ≤2%)

Standard Configuration

Items	Qty
Host	1

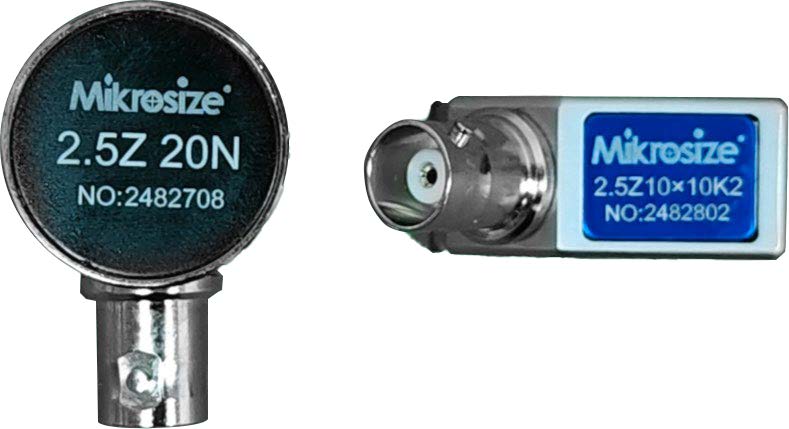

Probe (high-precision straight probe, angle probe)	2
Probe line	2
Charger	1
Power line	1
User manual	1
Certificate	1
Warranty card	1

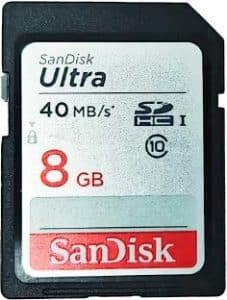

SD card(8G)	1

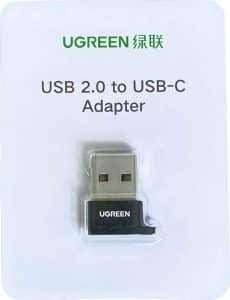

Conversion plug (USB to C)	1
