Hardness Testing Block
资源 5 scaled
资源 6 scaled
资源 7 scaled
资源 8 scaled
资源 9 scaled
资源 11 scaled
资源 12 scaled
资源 22 scaled
资源 20 scaled
资源 21 scaled
资源 19 scaled
资源 18 scaled
资源 17 scaled
资源 16 scaled
资源 15 scaled
资源 14 scaled
Technical Specifications
 |
HRA Standard Rockwell Hardness Block Specification: 60-70HRAShape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRA Roughness: Ra=0.02um Dimension:Φ60xΦ10×10mm Weight: 0.2kg |
|
HRA Standard Rockwell Hardness Block Specification: 70-85HRA Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRA Roughness: Ra=0.02um Dimension:Φ60xΦ10×10mm Weight: 0.2kg |
|
HRB Standard Rockwell Hardness Block Specification: 85-95HRB Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRB Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg |
|
HRB Standard Rockwell Hardness Block Specification: 60-70HRB Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRB Roughness: Ra=0.02um Dimension: Φ60×Φ10×10mm Weight: 0.2kg |
 |
HRB Standard Rockwell Hardness Block Specification: 45-55HRB Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRB Dimension: 60×40×10mm Weight: 0.2kg |
|
HRB Standard Rockwell Hardness Block Specification: 30-40HRB Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRB Dimension: 60×40×10mm Weight: 0.2kg |
|
HRC Standard Rockwell Hardness Block Specification: 60-70HRC Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: Φ60×Φ10×10mm Weight: 0.2kg | |
HRC Standard Rockwell Hardness Block Specification: 50-55HRC Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg |
|
HRC Standard Rockwell Hardness Block Specification: 40-50HRC Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg | |
HRC Standard Rockwell Hardness Block Specification: 30-35HRC Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg |
|
HRC Standard Rockwell Hardness Block Specification: 20-30HRC Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: Φ60×Φ10×10mm Weight: 0.2kg | |
HRF Standard Rockwell Hardness Block Specification: 90-100HRC Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: Φ60×Φ10×10mm Weight: 0.2kg |
|
HRF Standard Rockwell Hardness Block Specification: 80-90HRF Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRF Dimension: 60×40×10mm Weight: 0.2kg | |
HRH Standard Rockwell Hardness Block Specification: 80-120HRH Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRH Dimension: 60×40×10mm Weight: 0.2kg |
|
HRS Standard Rockwell Hardness Block Specification: 100-120HRS Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRS Dimension: 60x40×10mm Weight: 0.2kg | |
HR15Y Standard Superficial Rockwell Hardness Block Specification: 80-100HR15Y Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HR15Y Dimension: 60x40×10mm Weight: 0.2kg |
|
HR15Y Standard Superficial Rockwell Hardness Block Specification: 70-80HR15Y Shape: Rectangular Material: Aluminum Surface: Shinny finish Uniformity: ±0.5HR15Y Dimension: 60x40×10mm Weight: 0.2kg | |
HR30Y Standard Superficial Rockw Hardness Block Specification: 70-80HR30Y Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HR30Y Dimension: 60×40×10mm Weight: 0.2kg |
|
HR45Y Standard Superficial Rockwell Hardness Block Specification: 80-100HR45Y Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HR45Y Dimension: 60x40×10mm Weight: 0.2kg |  |

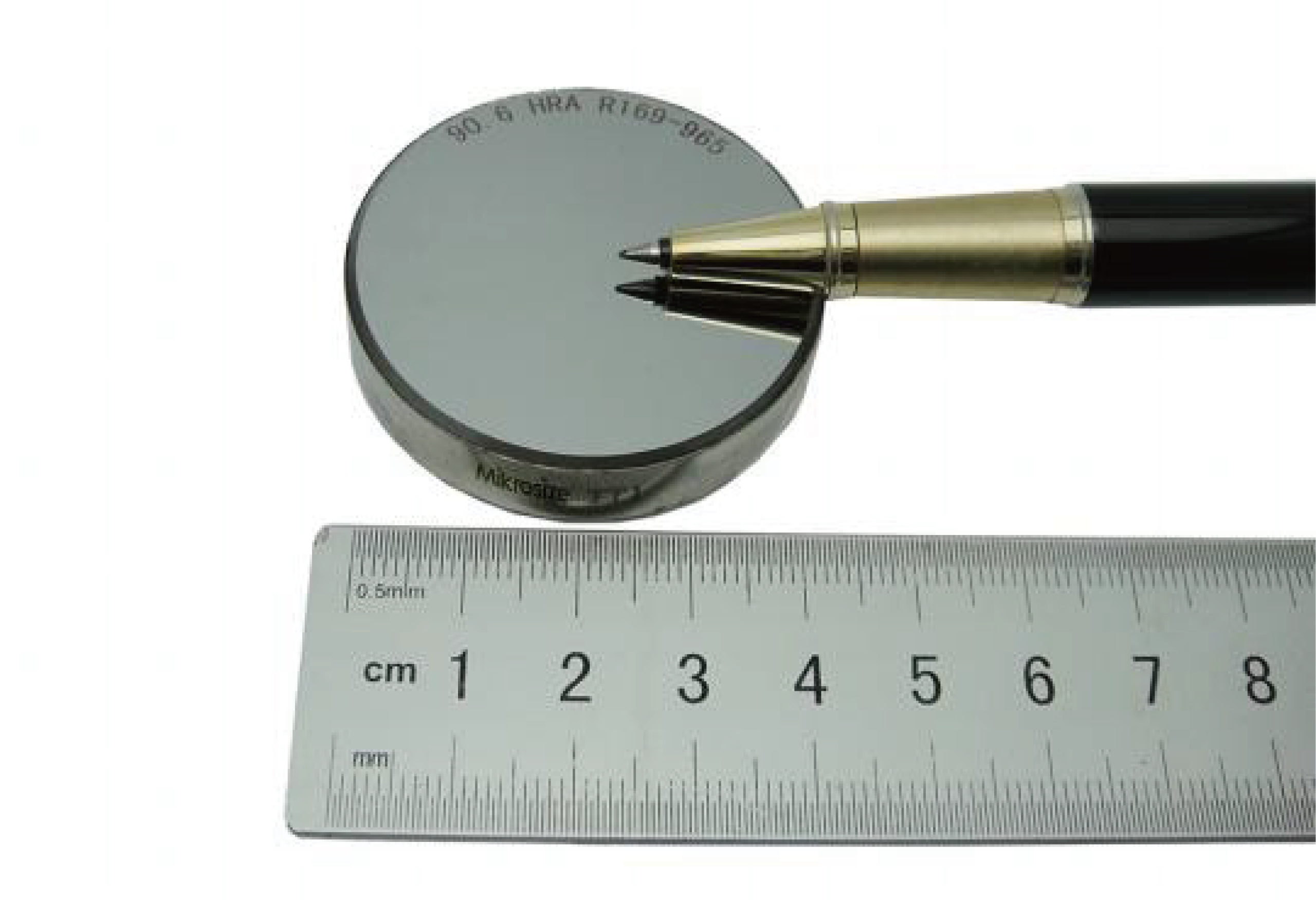

HRA Standard Rockwell Hardness Block Specification: 88-90HRA Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity: ±0.5HRA Roughness: Ra=0.02um Dimension: Φ45×8mm Weight: 0.2kg |
|
HRA Standard Rockwell Hardness Block Specification: 90-94HRA Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity: ±0.5HRA Roughness: Ra=0.02um Dimension: Φ45×8mm Weight: 0.2kg |  |
HRC Standard Magnetic Rockwell Hardness Block Specification: 60-70HRC Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: Φ50x10mm Weight: 0.2kg |
|
HRC Standard Magnetic Rockwell Hardness Block Specification: 35-55HRC Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: Φ50×10mm Weight: 0.2kg | |
HRC Standard Magnetic Rockwell Hardness Block Specification: 20-30HRC Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: Φ50×10mm Weight: 0.2kg |
 |
HRC Standard Magnetic Rockwell Hardness Block Specification: 60-70HRC Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: 80×30×10mm Weight: 0.2kg | |
HRC Standard Magnetic Rockwell Hardness Block Specification: 35-55HRC Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: 80×30×10mm Weight: 0.2kg |
|
HRC Standard Magnetic Rockwell Hardness Block Specification: 20-30HRC Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Roughness: Ra=0.02um Dimension: 80×30×10mm Weight: 0.2kg | |
HRB Standard Magnetic Rockwell Hardness Block Specification: 85-95HRB Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRB Roughness: Ra=0.02um Dimension: 80×30×10mm Weight: 0.2kg |
|
HRC Standard Rockwell Hardness Block Specification: 20-70HRC Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRC Dimension: 60×40×10mm Weight: 0.2kg | |
HRA Standard Rockwell Hardness Block Specification: 60-70HRA Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRA Dimension: 60×40×10mm Weight: 0.2kg |
|
HRA Standard Rockwell Hardness Block Specification: 70-85HRA Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±0.5HRA Dimension: 60x40x10mm Weight: 0.2kg | |
HRB Standard Rockwell Hardness Block Specification: 85-95HRB Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity:±0.5HRB Dimension: 60×40×10mm Weight: 0.2kg |
|
HRE Standard Plastic Rockwell Hardness Block Specification: 70-94HRE Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRE Dimension: 60×40×10mm Weight: 0.2kg | |
HRL Standard Plastic Rockwell Hardness Block Specification: 100-120HRL Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRL Dimension: 60×40×10mm Weight: 0.2kg |
|
HRM Standard Plastic Rockwell Hardness Block Specification: 85-100HRM Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRM Dimension: 60×40×10mm Weight: 0.2kg | |
HRR Standard Plastic Rockwell Hardness Block Specification: 114-125HRR Shape: Rectangular Material: Copper Surface: Shinny finish Uniformity: ±0.5HRR Dimension: 60×40×10mm Weight: 0.2kg |
 |
HR15N Standard Superficial Rockwell Hardness Block Specification: 88-92HR15N Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR15N Roughness: Ra=0.02um Dimension:Φ60xΦ1×10mm Weight: 0.2kg | |
HR30N Standard Superficial Rockwell Hardness Block Specification: 74-82HR30N Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR30N Roughness: Ra=0.02um Dimension: Φ60xΦ10×10mm Weight: 0.2kg |
|
HR30N Standard Superficial Rockwell Hardness Block Specification: 45-55HR30N Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR30N Roughness: Ra-0.02um Dimension: Φ60xΦ10x10mm Weight: 0.2kg | |
HR45N Standard Superficial Rockwell Hardness Block Specification: 45-55HR45N Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR45N Roughness: Ra-0.02um Dimension: Φ60xΦ10*10mm Weight: 0.2kg |
|
HR15T Standard Superficial Rockwell Hardness Block Specification: 85-91HR15T Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR15T Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg | |
HR30T Standard Superficial Rockwell Hardness Block Specification: 70-80HR30T Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR30T Roughness: Ra=0.02um Dimension:Φ60xΦ10×10mm Weight: 0.2kg |
|
HR45T Standard Superficial Rockwell Hardness Block Specification: 54-72HR45T Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HR45T Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg | |
HBW10/3000 Standard Brinell Hardness Block Specification: 150-250HBW10/3000 Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension:Φ90xΦ12x16mm Weight: 0.85kg |
|
HBW5/750 Standard Brinell Hardness Block Specification: 150-250HBW5/750 Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW5/750 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg | |
HBW2.5/187.5 Standard Brinell Hardness Block Specification: 150-250HBW2.5/187. Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW2.5/187.5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg |
|
HBW10/1000 Standard Brinell Hardness Block Specification: 75-125HBW10/1000 Shape: Ring-shaped Material: Alloy steell>100HBW) /Aluminum[<100HBW) Surface: Matt finish Uniformity: ±2%HBW10/1000 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg | |
HBW5/250 Standard Brinell Hardness Block Specification: 75-125HBW5/250 Shape: Ring-shaped Material: Alloy steel[>100HBW) /Aluminum[<100HBW) Surface: Matt finish Uniformity: ±3%HBW5/250 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg |
|
HBW2,5/62.5 Standard Brinell Hardness Block Specification: 75-125HBW2.5/62.5 Shape: Ring-shaped Material: Alloy steel (>100HBW) /Aluminum[<100HBW] Surface: Matt finish Uniformity: ±3%HBW2,5/62,5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg | |
HBW10/3000 Standard Brinell Hardness Block Specification: 250-350HBW10/3000 Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg |
|
HBW5/750 Standard Brinell Hardness Block Specification: 250-350HBW5/750 Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW5/750 Roughness: Ra=0.28um Dimension:Φ90xΦ12x16mm Weight: 0.85kg | |
HBW2.5/187.5 Standard Brinell Hardness Block Specification: 250-350HBW2.5/187 Shape: Ring-shaped Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW2.5/187.5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg |
|
HBW1/30 Standard Brinelll Hardness Block Specification: 150-250HBW1/30 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW1/30 Roughness: Ra=0.28um Dimension:Φ60xΦ10×10mm Weight: 0.2kg | |
HBW10/3000 Standard Brinelll Hardness Block Specification: 150-250HBW10/3000 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension:Φ90xΦ12x16mm Weight: 0.85kg |
|
HBW10/1500 Standard Brinelll Hardness Block Specification: 150-250HBW10/1500 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW10/1500 Roughness: Ra=0.28um Dimension:Φ90xΦ12x16mm Weight: 0.85kg | |
HBW5/750 Standard Brinelll Hardness Block Specification: 150-250HBW5/750 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg |
|
HBW2.5/187.5 Standard Brinelll Hardness Block Specification: 150-250HBW2.5/187.5 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW2,5/1875 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg | |
HBW10/1500 Standard Brinelll Hardness Block Specification: 75-125HBV010/150 Shape: Ring-shaped Material: Alloy steel [>100HBW) /Aluminum[<100HBW] Surface: Shinny finish Uniformity: ±2%HBW10/1500 Roughness: Ra=0,28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg |
|
HBW10/1000 Standard Brinelll Hardness Block Specification: 75-125HBW10/1000 Shape: Ring-shaped Material: Alloy steel [>100HBW) /Aluminum(<100HBW) Surface: Shinny finish Uniformity: ±2%HBW10/1000 Roughness: Ra=0.28um Dimension:Φ90xΦ12x16mm Weight: 0.85kg | |
HBW5/250 Standard Brinelll Hardness Block Specification: 75-125HBW5/250 Shape: Ring-shaped Material: Alloy steel [>100HBW) /Aluminum[<100HBW) Surface: Shinny finish Uniformity: ±3%HBW5/250 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg |
|
HBW2.5/62.5 Standard Brinelll Hardness Block Specification: 75-125HBW2.5/62.5 Shape: Ring-shaped Material: Alloy steel [>100HBW) /Aluminum[<100HBW] Surface: Shinny finish Uniformity: ±3%HBW2.5/62.5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg | |
HBW10/3000 Standard Brinelll Hardness Block Specification: 250-350HBW10/3000 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension:Φ90xΦ12x16mm Weight: 0.85kg |
|
HBW5/750 Standard Brinelll Hardness Block Specification: 250-350HBW5/750 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW5/750 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg | |
HBW2.5/187.5 Standard Brinelll Hardness Block Specification: 250-350HBW2,5/187.5 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HBW2,5/187.5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg |
|
HBW10/1000 Standard Brinelll Hardness Block Specification: 30-65HBW10/1000 Shape: Ring-shaped Material: Aluminum Surface: Shinny finish Uniformity: ±2%HBW10/1000 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg | |
HBW5/250 Standard Brinelll Hardness Block Specification: 30-65HBW5/250 Shape: Ring-shaped Material: Aluminum Surface: Shinny finish Uniformity: ±3%HBW5/250 Roughness: Ra=0.28um Dimension: Φ64xΦ10x10mm Weight: 0.85kg |
|
HBW2.5/62.5 Standard Brinelll Hardness Block Specification: 30-65HBW2.5/62.5 Shape: Ring-shaped Material: Aluminum Surface: Shinny finish Uniformity: ±3%HBW2.5/62.5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight:0.85kg |  |
HBW10/1000 Standard Brinelll Hardness Block Specification: 30-65HBW10/1000 Shape: Rectangular Material: Aluminum Surface: Shinny finish Uniformity: ±2%HBW10/1000 Roughness: Ra=0.28um Dimension:Φ90xΦ12×16mm Weight: 0.85kg |
|
HBW5/250 Standard Brinelll Hardness Block Specification: 30-65HBW5/250 Shape: Rectangular Material: Aluminum Surface: Shinny finish Uniformity: ±3%HBW5/250 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg | |
HBW2.5/62.5 Standard Brinelll Hardness Block Specification: 30-65HBW2.5/62.5 Shape: Rectangular Material: Aluminum Surface: Shinny finish Uniformity: ±3%HBW2.5/62.5 Roughness: Ra=0.28um Dimension:Φ64xΦ10×10mm Weight: 0.85kg |
|
HBW10/3000 Standard Brinelll Hardness Block Specification: 150-600HBW10/3000 Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension: 100×80×16mm Weight: 0.85kg | |
HBW5/750 Standard Brinelll Hardness Block Specification: 150-600HBW5/750 Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW5/750 Roughness: Ra=0.28um Dimension: 100x80×16mm Weight: 0.85kg |
|
HBW10/1000 Standard Brinelll Hardness Block Specification: 75-125HBW10/1000 Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW10/1000 Roughness: Ra=0,28um Dimension: 100×80×16mm Weight: 0.85kg |  |

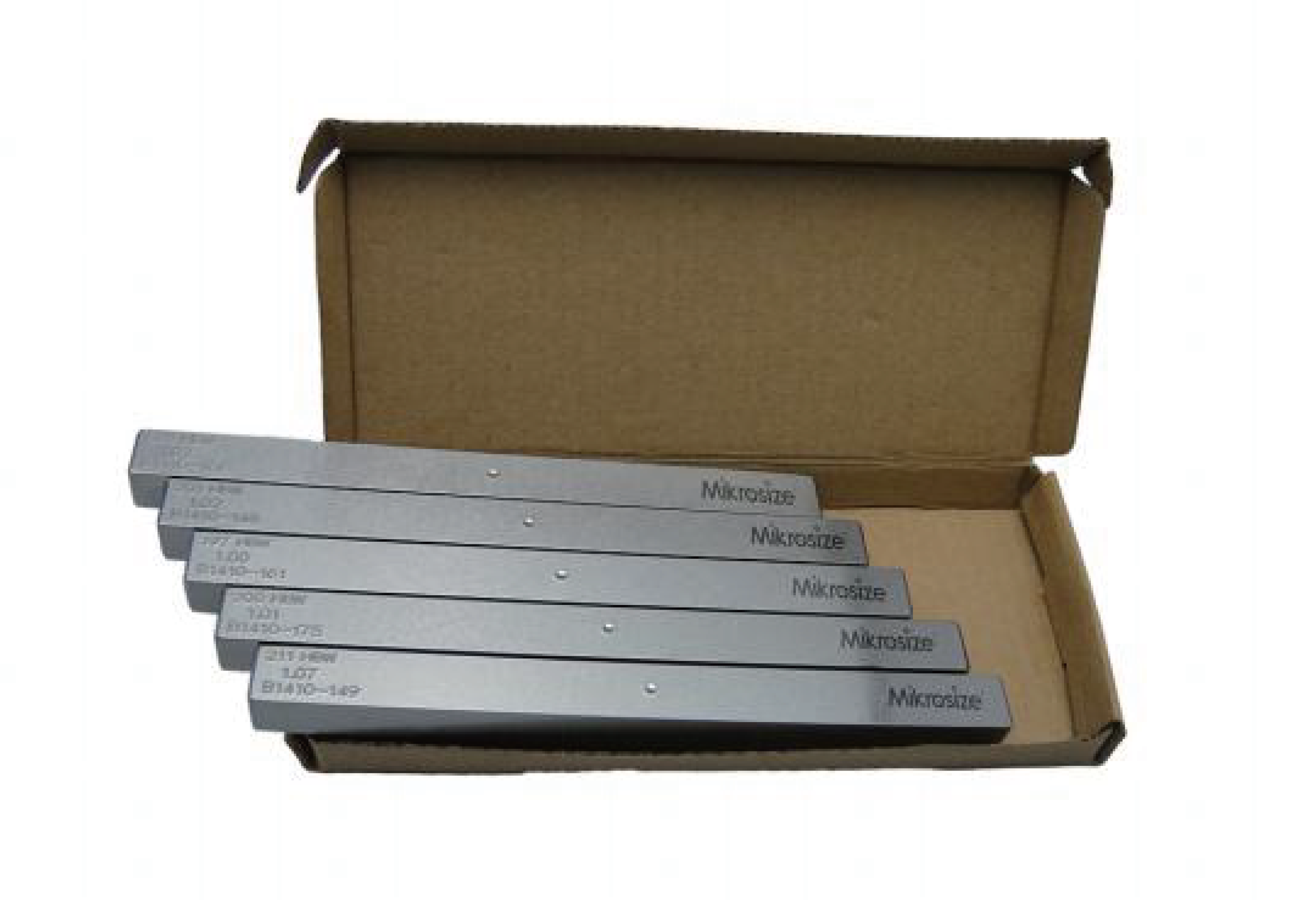

HBS5/750 Hammer type Brinell Strip Specification: 175-225HBS5/750 Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW5/750 Roughness: Ra=0.28um Dimension: 12x12x150mm Weight: 0.85kg |
 |
HBS10/3000 Portable Brinell Hardness Block Specification: 150-250HBS10/3000 Shape: Rectangular Material: Alloy steel Surface: Matt finish Uniformity: ±2%HBW10/3000 Roughness: Ra=0.28um Dimension: 75×75×22mm Weight: 0.85kg |  |
HWA Standard Webster Hardness Block Specification: 8-12HWA Shape: Rectangular Material: Aluminum Surface: Matt finish Uniformity: ±0.5HWA Roughness: Ra=0.02um Dimension: 25×150×1.5mm Weight: 0.85kg |
|
HWA Standard Webster Hardness Block Specification: 14-18HWA Shape: Rectangular Material: Aluminum Surface: Matt finish Uniformity: ±0,5HWA Roughness: Ra=0,02um Dimension: 25×150×1.5mm Weight: 0.85kg |  |
HBa Standard Barcol Hardness Block Specification: 82-88HBa Shape: Ring-shaped Material: Aluminum Surface: Matt finish Uniformity: ±0,5HBa Roughness: Ra=0.02um Dimension: @29×1mm Weight: 0.85kg |
|
HBa Standard Barcol Hardness Block Specification: 42-55HBa Shape: Ring-shaped Material: Aluminum Surface: Matt finish Uniformity: ±0.5HBa Roughness: Ra=0,02um Dimension:Φ29×1mm Weight: 0.85kg |  |

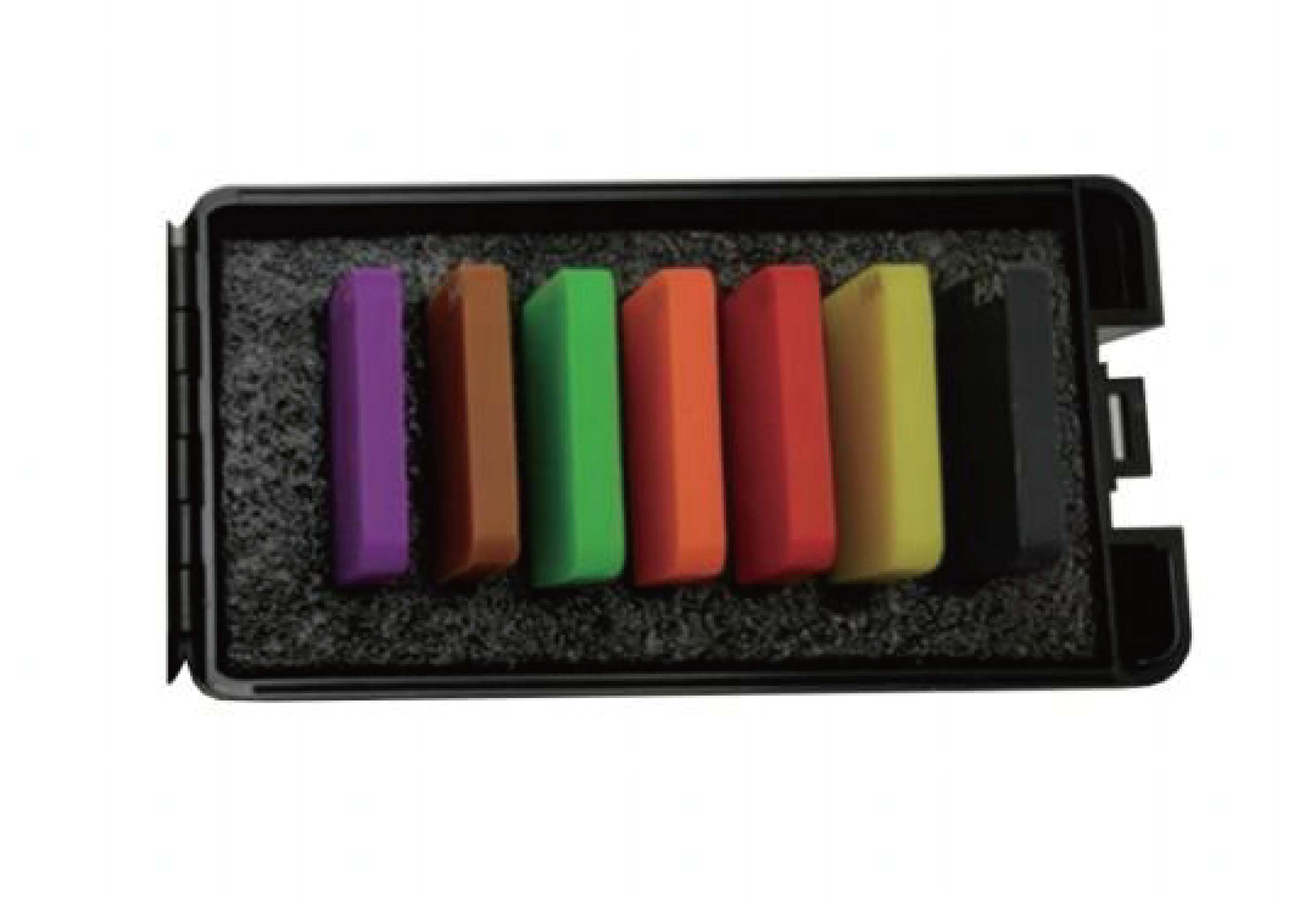

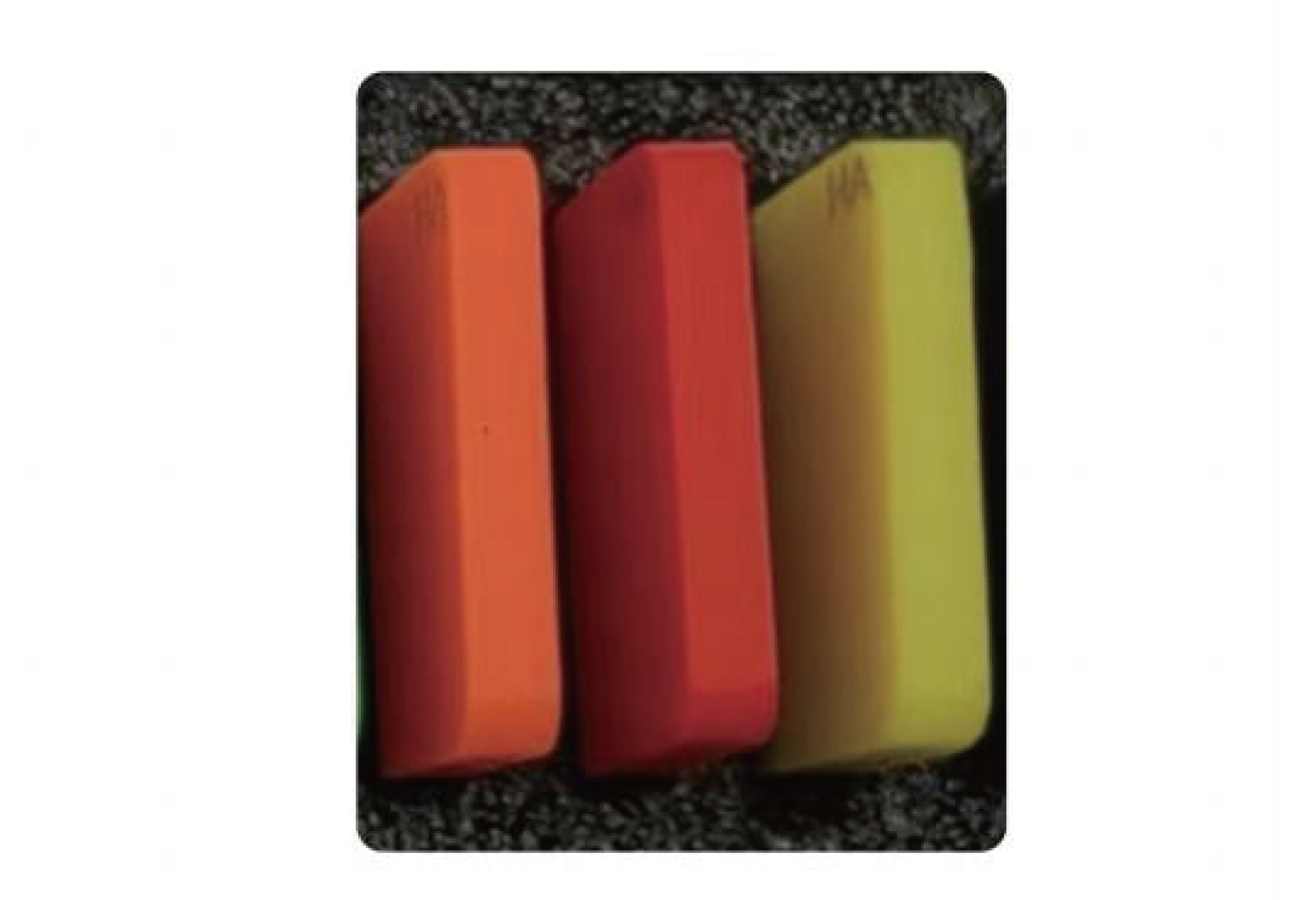

HA Shore Hardness Block Specification: 7 pcs Shape: Square Material: Rubber Surface: Matt finish Uniformity: ±1HA Roughness: Ra=0.02um Dimension: 50x50×7mm Weight: 0.15kg |
 |
HA Shore Hardness Block Specification: 3 pcs Shape: Square Material: Rubber Surface: Matt finish Uniformity: ±1HA Roughness: Ra=0.02um Dimension: 50×50×7mm Weight: 0.05kg | |
HV3 Standard Macro Vickers Hardness Block Specification: 700-800HV3 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV3 Roughness: Ra=0.02um Dimension:Φ60xΦ10×10mm Weight: 0.2kg |
|
HV5 Standard Macro Vickers Hardness Block Specification: 700-800HV5 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg | |
HV10 Standard Macro Vickers Hardness Block Specification: 700-800HV10 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV10 Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg |
|
HV30 Standard Macro Vickers Hardness Block Specification: 700-800HV30 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV30 Roughness: Ra=0.02um Dimension:Φ60xΦ10×10mm Weight: 0.2kg | |
HV50 Standard Macro Vickers Hardness Block Specification: 700-800HV50 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV50 Roughness: Ra=0,02um Dimension: Φ60xΦ10x10mm Weight: 0.2kg |
|
HV5 Standard Macro Vickers Hardness Block Specification: 400-600HV5 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension:Φ60xΦ10×10mm Weight: 0.2kg | |
HV10 Standard Macro Vickers Hardness Block Specification: 400-600HV10 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV10 Roughness: Ra=0,02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg |
|
HV30 Standard Macro Vickers Hardness Block Specification: 400-600HV30 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV30 Roughness: Ra=0.02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg | |
HV5 Standard Macro vickers Hardness Block Specification: 175-225HV5 Shape: Ring-shaped Material: Alloy steel(>180HV5) or Aluminum(<180HV5) Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0,02um Dimension:Φ60×Φ10×10mm Weight: 0.2kg |
|
HV5 Standard Macro Vickers Hardness Block Specification: 800-850HV5 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg | |
HV3 Standard Macro Vickers Hardness Block Specification: 700-800HV3 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV3 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg |
|
HV5 Standard Macro Vickers Hardness Block Specification: 700-800HV5 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension: 60x40×10mm Weight: 0.2kg | |
HV10 Standard Macro Vickers Hardness Block Specification: 700-800HV10 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV10 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg |
|
HV30 Standard Macro Vickers Hardness Block Specification: 700-800HV30 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV30 Roughness: Ra=0.02um Dimension: 60x40×10mm Weight: 0.2kg | |
HV50 Standard Macro Vickers Hardness Block Specification: 700-800HV50 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV50 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg |
|
HV5 Standard Macro Vickers Hardness Block Specification: 400-600HV5 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg | |
HV10 Standard Macro Vickers Hardness Block Specification: 400-600HV10 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV10 Roughness: Ra=002um Dimension: 60x40×10mm Weight: 0.2kg |
|
HV30 Standard Macro Vickers Hardness Block Specification: 400-600HV30 Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±2%HV30 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg |  |
HV5 Standard Macro Vickers Hardness Block Specification: 175-225HV5 Shape: Rectangular Material: Alloy steell>180HV5) or Aluminum[<180HV5) Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg |
|
HV5 Standard Macro Vickers Hardness Block Specification: 75-150HV5 Shape: Rectangular Material: Aluminum Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg | |
HV5 Standard Macro Vickers Hardness Block Specification: 60-70HV5 Shape: Rectangular Material: Aluminum Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension: 60×40×10mm Weight: 0.2kg |
 |
HV5 Macro Vickers Hardness Block Specification: 1300-1500HV5 Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension:Φ45×8mm Weight: 0.2kg | |
HV5 Macro Vickers Hardness Block Specification: 1500-1700HV5 Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity: ±3%HV5 Roughness: Ra=0.02um Dimension:Φ45×8mm Weight:0.2kg |
|
HRC Ultrasonic Hardness Block Specification: 60-70HRC Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±0.5HRC Roughness:Ra=0.02um Dimension:Φ90×16mm Weight:0.85kg | |
HV5 Ultrasonic Hardness Block pecification: 700-800HV5 Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity:±3%HV5 Roughness:Ra=0.02um Dimension:Φ90×16mm Weight:0.85kg |
|
HV1 Standard Micro Vickers Hardness Block Specification: 800-850HV1 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity:±3%HV1 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.05kg | |
HV1 Standard Micro Vickers Hardness Block Specification: 700-800HV1 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV1 Roughness: Ra=0,02um Dimension: 25×25×8mm Weight: 0.05kg |
|
HV0.5 Standard Micro Vickers Hardness Block Specification: 700-800HV0.5 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.5 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.05kg | |
HV0.3 Standard Micro Vickers Hardness Block Specification: 700-800HV0.3 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.3 Roughness: Ra=0.02um Dimension: 25x25×8mm Weight: 0.05kg |
|
HV0.2 Standard Micro Vickers Hardness Block Specification: 700-800HV0.2 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.2 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.05kg | |
HV0.2 Standard Micro Vickers Hardness Block Specification: 400-600HV0.2 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HVO.2 Roughness: Ra=0,02um Dimension: 25×25×8mm Weight: 0.05kg |
|
HV0.1 Standard Micro Vickers Hardness Block Specification: 400-600HV01 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.1 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.05kg | |
HV0.1 Standard Micro Vickers Hardness Block Specification: 175-225HV0.1 Shape: Square Material: Alloy steel[>180HV0.1) or Aluminum(<180HV0.1) Surface: Shinny finish Uniformity: ±3%HV0.1 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.05kg |
|
HV0.05 Standard Micro Vickers Hardness Block Specification: 175-225HV0.05 Shape: Square Material: Alloy steell>180HV0.05) or Aluminum[<180HV0,05) Surface: Shinny finish Uniformity: ±3%HV0.05 Roughness: Ra=0.02um Dimension: 25x25×8mm Weight: 0.05kg | |
HV0,1 Standard Micro Vickers Hardness Block Specification: 75-150HV0,1 Shape: Square Material: Aluminum Surface: Shinny finish Uniformity: ±3%HV0.1 Roughness: Ra=0,02um Dimension: 25×25×8mm Weight: 0.05kg |
|
HV0.1 Standard Micro Vickers Hardness Block Specification: 60-70HV0.1 Shape: Square Material: Aluminum Surface: Shinny finish Uniformity: ±3%HV0.1 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.05kg |  |
HV1 Standard Micro Vickers Hardness Block Specification: 700-800HV1 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV1 Roughness: Ra=0,02um Dimension: Φ25×8mm Weight: 0.05kg |
|
HV0.5 Standard Micro Vickers Hardness Block Specification: 700-800HV0.5 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.5 Roughness: Ra=0.02um Dimension: Φ25×8mm Weight: 0.05kg | |
HV0,3 Standard Micro Vickers Hardness Block Specification: 700-800HV0.3 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.3 Roughness: Ra=0,02um Dimension: Φ25×8mm Weight: 0.05kg |
|
HV0.2 Standard Micro Vickers Hardness Block Specification: 700-800HV0.2 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.2 Roughness: Ra=0.02um Dimension: Φ25×8mm Weight: 0.05kg | |
HV0,2 Standard Micro Vickers Hardness Block Specification: 400-600HV0,2 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.2 Roughness: Ra=0,02um Dimension:Φ25×8mm Weight: 0.05kg |
|
HV0.1 Standard Micro Vickers Hardness Block Specification: 400-600HV0.1 Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HV0.1 Roughness: Ra=0.02um Dimension: Φ25×8mm Weight: 0.05kg | |
HV0.1 Standard Micro Vickers Hardness Block Specification: 175-225HV0.1 Shape: Ring-shaped Material: Alloy steel(>180HV0 or Aluminum(<180HV0_1) Surface: Shinny finish Uniformity: ±3%HVO.1 Roughness: Ra=0,02um Dimension:Φ25×8mm Weight: 0.05kg |
|
HV0.05 Standard Micro Vickers Hardness Block Specification: 175-225HV0.05 Shape: Ring-shaped Material: Alloy steel[>180HV0.1) or Aluminum[<180HV0.1) Surface: Shinny finish Uniformity: ±3%HV0.05 Roughness: Ra=0.02um Dimension:Φ25×8mm Weight: 0.05kg | |
HV1 Standard Micro Vickers Hardness Block Specification: 1300-1500HV1 Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity: ±3%HV1 Roughness: Ra=0,02um Dimension: Φ25×7mm Weight: 0.1kg |
|
HV1 Standard Micro Vickers Hardness Block Specification: 1500-1700HV1 Shape: Ring-shaped Material: Hard metal Surface: Shinny finish Uniformity: ±3%HV1 Roughness: Ra=0.02um Dimension: Φ25×7mm Weight: 0.1kg | |
HK1 Standard Knoop Hardness Block Specification: 700-800HK1 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HK1 Roughness: Ra=0,02um Dimension: 25×25×8mm Weight: 0.1kg |
|
HK0.5 Standard Knoop Hardness Block Specification: 700-800HK0.5 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HK0.5 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg | |
HK0.3 Standard Knoop Hardness Block Specification: 700-800HKO.3 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HK0.3 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg |
|
HK0.2 Standard Knoop Hardness Block Specification: 700-800HK.2 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HK0.2 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg | |
HK0.2 Standard Knoop Hardness Block Specification: 400-600HK0.2 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HK0.2 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg |
|
HK0.1 Standard Knoop Hardness Block Specification: 400-600HK0.1 Shape: Square Material: Alloy steel Surface: Shinny finish Uniformity: ±3%HK0.1 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg | |
HK0.1 Standard Knoop Hardness Block Specification: 175-225HK0.1 Shape: Square Material: Alloy steel[>180HV0.1) or Aluminum(<180HV0.1) Surface: Shinny finish Uniformity: ±3%HKO.1 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg |
|
HK0.05 Standard Knoop Hardness Block Specification: 175-225HK0.05 Shape: Square Material: Alloy steel(>180HV0.05) or Aluminum[<180HV0.05) Surface: Shinny finish Uniformity: ±3%HK0.05 Roughness: Ra=0.02um Dimension: 25×25×8mm Weight: 0.1kg |  |
HLD Standard Leeb Hardness Block D Type Specification: 750-830HLD Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±5HLD Roughness: Ra=0,03um Dimension:Φ90×55mm Weight: 2.75kg |
|
HLD Standard Leeb Hardness Block D Type Specification: 590-670HLD Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±5HLD Roughness: Ra=0.03um Dimension:Φ90x55mm Weight: 2.75kg | |
HLD Standard Leeb Hardness Block D Type Specification: 490-570HLD Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±5HLD Roughness: Ra=0.03um Dimension:Φ90x55mm Weight: 2.75kg |
|
HLD Two=side forging Leeb Hardness Block D Type Specification: 490-830HLD Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±5HLD Roughness: Ra=0.02um Dimension:Φ90×55mm Weight: 2.75kg | |
HLG Leeb Hardness Block G Type Specification: 550-630HLG Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±5HLG Roughness: Ra=0,02um Dimension:Φ120×70mm Weight: 6.3kg |
|
HLG Leeb Hardness Block G Type Specification: 460-540HLG Shape: Ring-shaped Material: Alloy steel Surface: Shinny finish Uniformity: ±5HLG Roughness: Ra=0.02um Dimension:Φ120×70mm Weight: 6.3kg | |
HSD Leeb Shore Hardness Block Specification: 90±4HSD Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±1HSD Roughness: Ra=0.02um Dimension: 65x52*15mm Weight: 0.5kg |
|
HSD Leeb Shore Hardness Block Specification: 60±4HSD Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±1HSD Roughness: Ra=0.02um Dimension: 65×52×15mm Weight: 0.5kg | |
HSD Leeb Shore Hardness Block Specification: 30±4HSD Shape: Rectangular Material: Alloy steel Surface: Shinny finish Uniformity: ±1HSD Roughness: Ra=0.02um Dimension: 65x52x15mm Weight: 0.5kg |
