Granite Set-up Tools

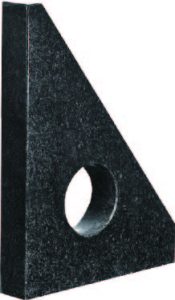

Granite Set up Tools（1） 1

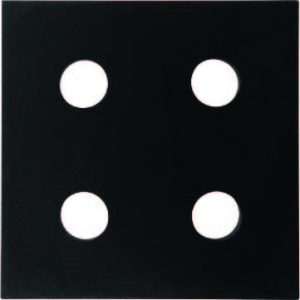

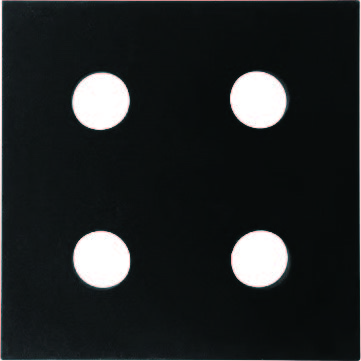

Granite Set up Tools（2） 1
Technical Specifications
| Used for measuring the squareness of parts, ma- chine tool spindles, and various components.It’s processed with circular holes to reduce weight and facilitate handling. |  |
| Model | Dimension（H*L*W） | Perpendicularity between Measuring Surface and Datum Surface（μm） | Flatness or Perpendicular- ity Measurement （μm） | Flatness or Straightness of Datum Surface （μm） | |||
| Accuracy 00 | Accuracy 00 | Accuracy 00 | Accuracy 00 | Accuracy 00 | Accuracy 00 | ||
| TRI161040 | 160*100*40mm | 2 | 4 | 1 | 2 | 1 | 1 |
| TRI251625 | 250*160*25mm | 2.5 | 5 | 1 | 2 | 1 | 2 |
| TRI302050 | 300*200*50mm | 3.0 | 5 | 1 | 2.5 | 1 | 2 |
| TRI402550 | 400*250*50mm | 3.5 | 7 | 1 | 2.5 | 1 | 2 |
| TRI403050 | 400*300*50mm | 3.5 | 7 | 1 | 2.5 | 1 | 2 |
| TRI503550 | 500*350*50mm | 4.0 | 8 | 1.5 | 2.5 | 1 | 2.5 |
| TRI634063 | 630*400*63mm | 4.5 | 9 | 1.5 | 3 | 1 | 2.5 |
| TRI805080 | 800*500*80mm | 5 | 10 | 2.0 | 4 | 1.5 | 3 |
| TRI106380 | 1000*630*80mm | 6 | 12 | 2.5 | 5 | 1.5 | 3 |
GRANITE SQUARE
|
Used for measuring the squareness of parts, machine tool spindles, and vari- ous components. |
 |
| Model | Dimension （L*H*W） | Flatness and Straightness of Measuring Surface(μm) | Perpendicularity between Adjacent Measuring Surfaces（μm） | Parallelism between Opposite Measuring Surfaces（μm） | ||||||
| 000 | 00 | 0 | 000 | 00 | 0 | 000 | 00 | 0 | ||
| S101040 | 100*100*40mm | 0.4 | 0.7 | 1.4 | 0.7 | 1.5 | 3.0 | 0.8 | 1.5 | 3.0 |
| S202050 | 200*200*50mm | 0.4 | 0.9 | 1.8 | 0.9 | 2.0 | 4.0 | 1.0 | 2.0 | 4.0 |
| S303030 | 300*300*30mm | 0.6 | 1.1 | 2.3 | 1.3 | 2.6 | 5.2 | 1.3 | 2.6 | 5.5 |
| S404040 | 400*400*40mm | 0.6 | 1.3 | 2.6 | 1.5 | 3.0 | 6.0 | 1.5 | 3.0 | 6.0 |
| S505050 | 500*500*50mm | 0.8 | 1.5 | 3.0 | 1.8 | 3.5 | 7.0 | 1.8 | 3.5 | 7.0 |
| S606060 | 600*600*60mm | 0.9 | 1.8 | 3.5 | 2.1 | 4.2 | 8.3 | 2.1 | 4.2 | 8.3 |
