Product Features & Applications
GRANITE TRI SQUARE

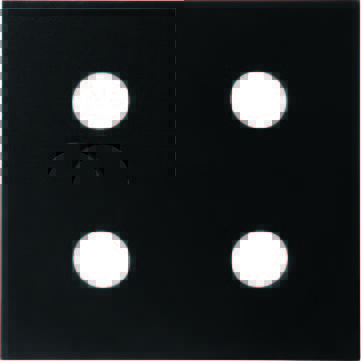

- Used for measuring the squareness of parts, machine tool spindles, and various components. It’s processed with circular holes to reduce weight and facilitate handling.

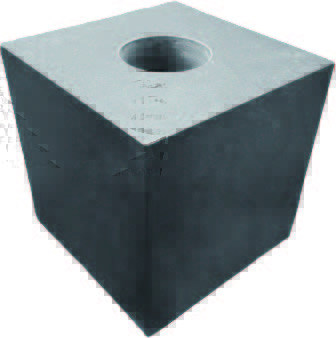

- Used for measuring the squareness of parts, machine tool spindles, and various components.
- Applied for straightness and flatness measurement.

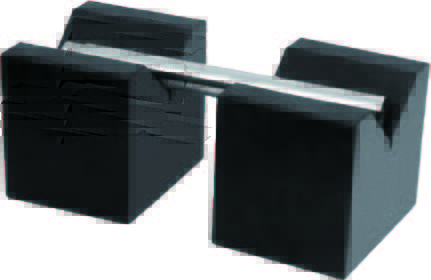

- Used for measuring the coaxiality, concentricity, alignment, and runout of rotating parts.
- Used for heightening, leveling, and establishing height applications.

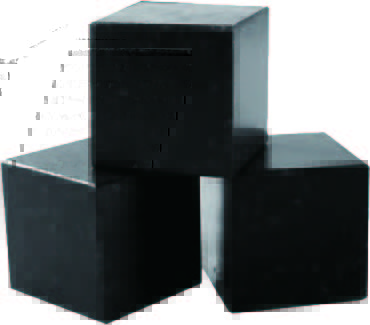

- Used for squareness and parallelism inspection, and can serve as a 90° absolute measurement datum.
- Can replace equal-height blocks for measuring the parallelism of parts.
- Marble comparison measuring tables, height gauges, indicator bases, measuring seats, and micrometer stands are used for high-precision measurement. The rod is made of high-quality 45# steel chrome-plated rod, and the collet is made of aluminum alloy through mold opening. The accessories have high precision and stable clamping force.
- Made of natural granite, featuring high hardness, stable dimensions, and little influence by temperature.

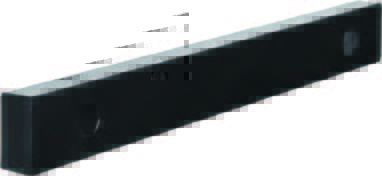

GRANITE SET-UP TOOLS
|

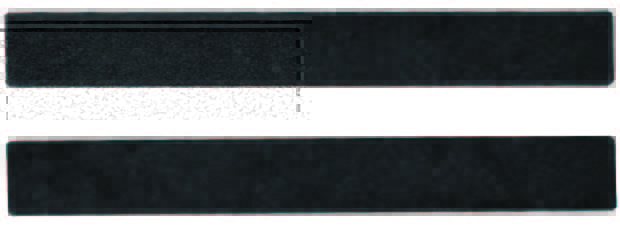

Can replace equal-height blocks for measuring the parallelism of parts. |
 |
|
Model |
Dimension （L*W*H） |
Flatness of Working Surface （μm） |
Parallelism between Two Working Surfaces（μm） |
Perpendicularity between Working Surface and Side Surface(μm) |
Heightening Degree of Each Pair of Parallel Rails (μm) |
||||
|
Accuracy 00 |
Accuracy 0 |
Accuracy 00 |
Accuracy 0 |
Accuracy 00 |
Accuracy 0 |
Accuracy00 |
Accuracy 0 |
||
|
P106316 |
100*63*16mm |
1.5 |
3 |
1.5 |
3 |
5 |
10 |
1.5 |
3 |
|
P164025 |
160*40*25mm |
1.5 |
3 |
1.5 |
3 |
5 |
10 |
1.5 |
3 |
|
P254025 |
250*40*25mm |
2 |
4 |
2 |
4 |
10 |
20 |
2 |
4 |
|
P406340 |
400*63*40mm |
4 |
8 |
4 |
8 |
15 |
30 |
4 |
8 |
|
P631063 |
630*100*63mm |
6 |
12 |
6 |
12 |
20 |
40 |
6 |
12 |

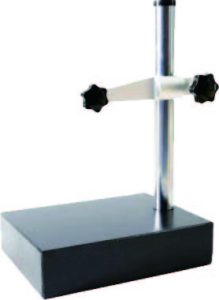

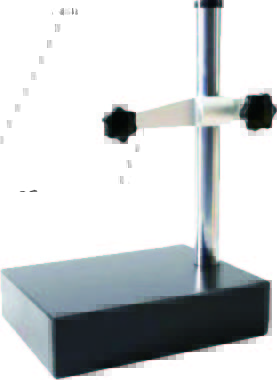

GRANITE COMPARATOR STAND
| Marble comparison measuring tables, height gauges, indicator bases, measuring seats, and micrometer stands are used for high-precision measurement. The rod is made of high-quality 45# steel chrome-plated rod, and the collet is made of aluminum alloy through mold opening. The accessories have high precision and stable clamping force. |  |
|
Model |
Dimension (A*W*B) |
Arm Length |
Column Diameter-D |
Column Height-H |
Hole Alignment-L |
|
CS101550 |
100*150*50mm |
140mm |
25mm |
280mm |
80mm |
|
CS152050 |
150*200*50mm |
140mm |
25mm |
280mm |
80mm |
|
CS203050 |
200*300*50mm |
180mm |
26mm |
280mm |
132mm |
| Model | Dimension (mm) | Unit | Weight (kg) |
| CS151050 | 150*100*50 | Set | 4.5 |
| CS151550 | 150*150*50 | 5.5 | |
| CS201550 | 200*150*50 | 6.5 | |
| CS302050 | 300*200*50 | 11 | |
| CS303050 | 300*300*50 | 15.5 | |
| CS403050 | 400*300*50 | 20 | |
| CS404050 | 400*400*50 | 26 | |
| CS604010 | 600*400*100 | 75 | |
| CS302580 | 300*250*80 | 20 | |
| CS403080 | 400*300*80 | 31 |

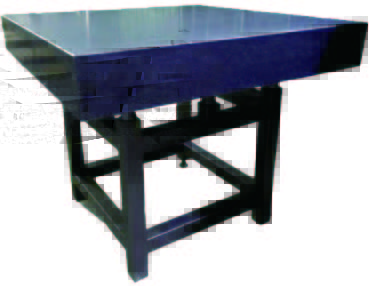

GRANITE PLATFORM
|
Made of natural granite, featuring high hardness, stable dimensions, and little influence by temperature |
 |
|
Specific Gravity |
2970~3070kg/m³ |
|
Compressive Strength |
245~254MPa |
|
Elastic Modulus |
1.27~1.47GPa |
|
Linear Expansion Coefficient |
461*10-6 /°C |
|
Water Absorption |
<0.13% |
|
Shore Hardness |
>Hs70 |
Optional accessory: Platform stand.
|
Accuracy |
|
|
Grade 000 |
1*（1+d/1000）μm |
|
Grade 00 |
2*（1+d/1000）μm |
|
Grade 0 |
4*（1+d/1000）μm |
|
Grade 1 |
8*（1+d/1000）μm |
|
Model |
Dimension(mm) |
Special Grade Accuracy |
Weight（kg） |
Optional Stand |
|
GP151050 |
150*100*50 |
2.5 |
3 |
None |
|
GP151550 |
150*150*50 |
2.5 |
3.5 |
|
|
GP201650 |
200*160*50 |
2.5 |
6 |
|
|
GP302050 |
300*200*50 |
3.0 |
12 |
|
|
GP303050 |
300*300*50 |
3.0 |
16 |
|
|
GP403050 |
400*300*50 |
3.0 |
20 |
|
|
GP303080 |
300*300*80 |
3.0 |
22 |
|
|
6.0 |
||||
|
GP403080 |
400*300*80 |
3.0 |
32 |
|
|
6.0 |
||||
|
GP403010 |
400*300*100 |
3.0 |
38 |
|
|
6.0 |
||||
|
GP404050 |
400*400*50 |
4.0 |
26 |
|
|
7.0 |
||||
|
GP404080 |
400*400*80 |
4.0 |
40 |
901 |
|
7.0 |
701 |
|||
|
GP404010 |
400*400*100 |
4.0 |
52 |
902 |
|
7.0 |
702 |
|||
|
GP504010 |
500*400*100 |
4.0 |
70 |
903 |
|
7.0 |
703 |
|||
|
GP505010 |
500*500*100 |
4.0 |
85 |
904 |
|
7.0 |
704 |
|||
|
GP604010 |
600*400*100 |
4.0 |
82 |
905 |
|
7.0 |
705 |
|||
|
GP604510 |
600*450*100 |
4.0 |
92 |
906 |
|
7.0 |
706 |
|||
|
GP634010 |
630*400*100 |
4.0 |
92 |
907 |
|
7.0 |
707 |
|||
|
GP605010 |
600*500*100 |
4.0 |
90 |
940 |
|
8.0 |
742 |
|||
|
GP606010 |
600*600*100 |
4.0 |
100 |
908 |
|
8.0 |
708 |
