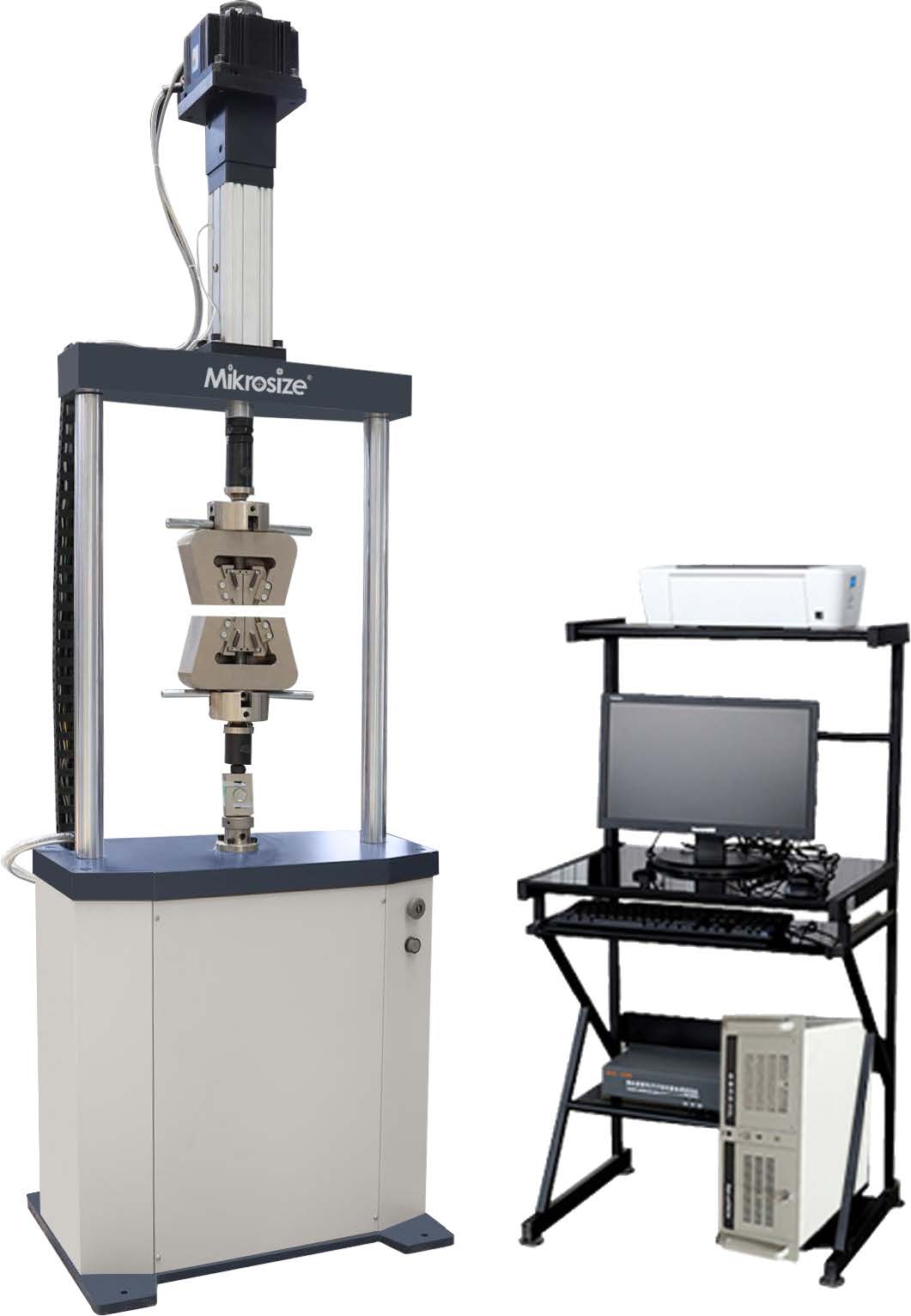

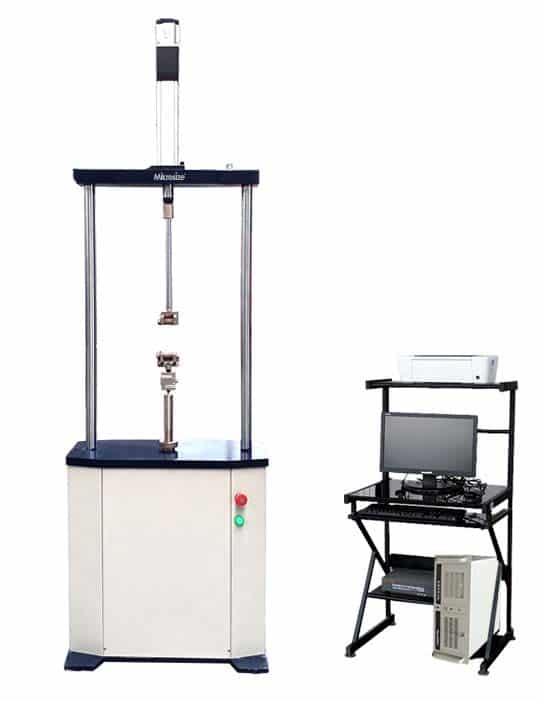

FTM-5 Fatigue testing machine

Integrates multiple analog sensor amplifiers, A/D acquisition, digital sensor acquisition, and PID closed-loop control in one unit.
Features precise amplitude automatic adjustment function.
Intelligent compensation technology: automatic compensation for the influence of inertial force on force measurement.
Station management function: controls pump station start/stop, high/low pressure start switching (optional HSM proportional output).
Comprehensive self-check, protection, and alarm functions.
Capable of controlling servo motors, servo valves, proportional valves, etc.
Real-time computer display of dynamic load, test frequency, fatigue cycle count, etc. during the test process.
Provides curves including load-time, displacement-time, deformation-time, load-displacement, load-deformation; curve types can be switched.
Comprehensive waveform and combined waveform functions.
Comprehensive data acquisition, storage, processing, printing, and export functions; supports storage in txt, image, and other formats.
Complete Test_DSC3.0 test software package.

Technical Specifications

Maximum Static Test Force	±0.1 kN–5 kN, static indicated value accuracy: ±0.5% full range without range switching
Maximum Dynamic Test Force	±0.1 kN–5 kN; dynamic fluctuation: not greater than ±0.5%
Maximum Actuator Amplitude	200 mm, indicated value accuracy ±0.5%
Frequency Range	0.01–10 Hz, 0.01–20 Hz
Displacement Measurement Accuracy	±0.5% indicated value (full range without range switching)
Displacement Measurement Resolution	0.001 mm
Multi-segment Function Generator
Counter	999,999,999, presettable
Control Mode	Load, displacement, and deformation control modes; main test waveforms supported by the controller (including sine wave, square wave, triangular wave, ramp wave, and external input waveforms)
Maximum Test Space	500 mm (including fixtures)
Column Spacing	500 mm
Overall Dimensions of Host Frame	690 × 460 × 2300 mm
Motor Power	1.5 kW

Item	Qty
High-rigidity host frame	1 unit
Electro-servo cylinder	1 unit
High-precision spoke-type load cell	1 piece (Transcell USA / Jinan Taiqin), accuracy ±0.05%, overload capacity 150%
Panasonic motor	1 unit
Fatigue testing machine control system and software	1 set, sampling frequency up to 6000 Hz
Huayan industrial computer	1 unit
Lenovo monitor	1 unit
HP printer	1 unit
