Fixture for Universal Testing Machine

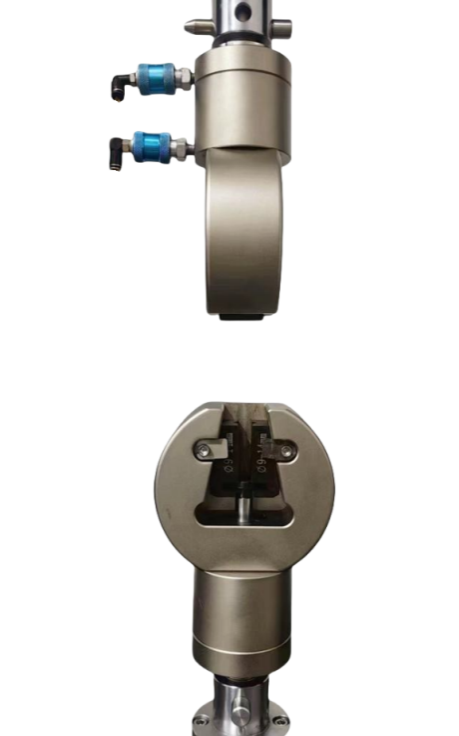

图片11 1








图片24 1






















Technical Specifications

Model

Fixture Name

Photo/Figure

Application

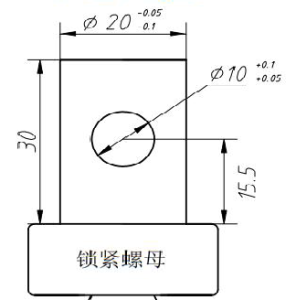

MS-2T

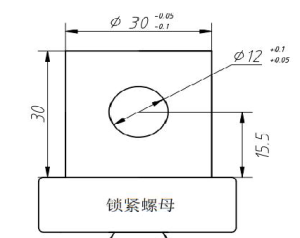

2T Standard Fixture Joint

●Standard fixture joint for 2T and below range

MS-5T

5T Standard Fixture Joint

●Standard fixture joint for 5T range

MS-1A

1T Hand operated wedge-shaped tensile fixture

●Hand-operated self-clamping type. ●Used for tensile tests of plastics, metals, etc., with a range ≤ 10KN. ●The width of the clamping piece is 25mm, and it can hold specimens with a thickness of 0 - 7mm. ●It has only flat jaws.

MS-1B

2T Hand operated wedge-shaped tensile fixture（Circular shape）

●Hand-operated self-clamping type. ●Used for tensile tests of plastics, metals, etc., with a range ≤ 20KN. ●The width of the flat clamping piece is 30mm, and it can hold specimens with a thickness of 0 - 7mm. It has only flat jaws.

MS-1C

2T Hand operated wedge-shaped tensile fixture（Angular shape）

MS-1D

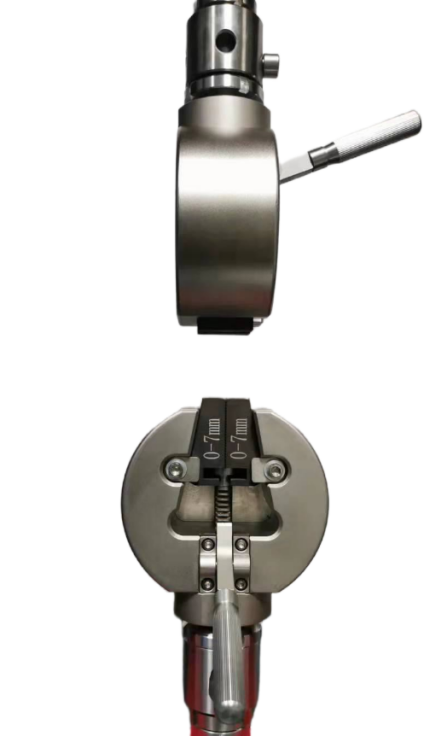

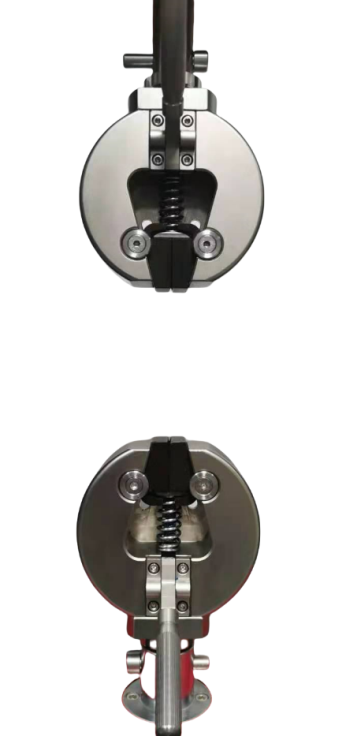

5T Hand operated wedge-shaped tensile fixture（Circular shape）

●Hand-operated self-clamping type.

●Used for tensile tests of plastics, metals, etc., with a range ≤ 50KN.

●Optional jaws:

●Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 21mm;

●V-shaped jaws: Φ4 - 9mm, Φ9 - 14mm, Φ14 - 21mm.

●The width of the clamping piece is 35mm.

●Flat jaws are used to hold flat specimens, and V-shaped jaws are used to hold round bar specimens.

MS-1E

5T rotary type wedge-shaped tensile fixture（Circular shape）

●Clamped by rotating the handle. ●Used for tensile tests of hard plastics, metals, etc., with a range ≤ 50KN. Optional jaws: ●Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 20mm; ●V-shaped jaws: Φ4 - 9mm, Φ9 - 14mm, Φ14 - 21mm. ●The width of the clamping piece is 35mm. ●Flat jaws are used to hold flat specimens, and ●V-shaped jaws are used to hold round bar specimens.

MS-1F

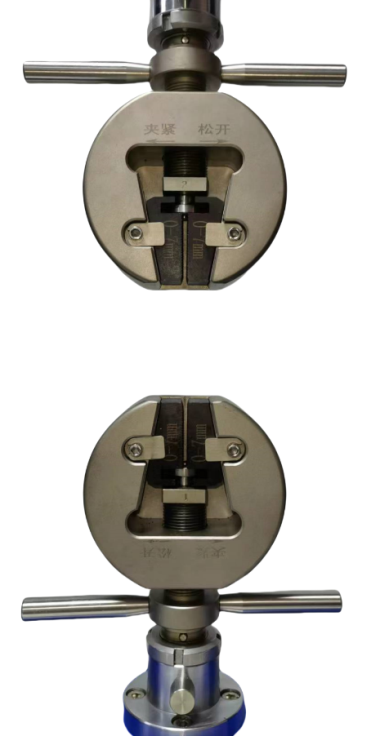

10T rotary type Hand operated wedge-shaped tensile fixture（Circular shape）

●Clamped by rotating the handle. ●Used for tensile tests of metals, etc., with a range ≤ 100KN. ●Optional jaws: Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 20mm. ●The width of the clamping piece is 40mm.

MS-1G

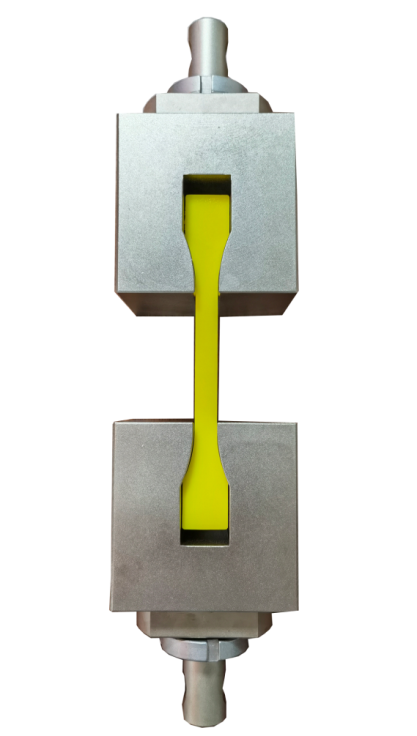

Plastic profile modeling tensile fixture

●Used for tensile tests of thick plastic specimens such as pipes. ●The range is ≤ 20KN, and it is suitable for ISO standard dumbbell-shaped specimens.

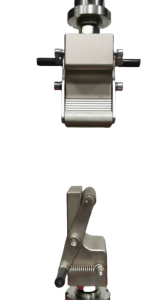

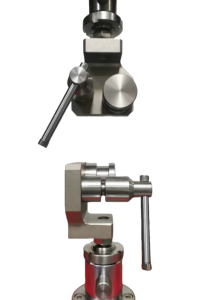

MS-2A

Single eccentric wheel fixture

●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber and silicone. ●The width of the clamping piece is 50mm, and it can hold a 4mm-thick specimen.

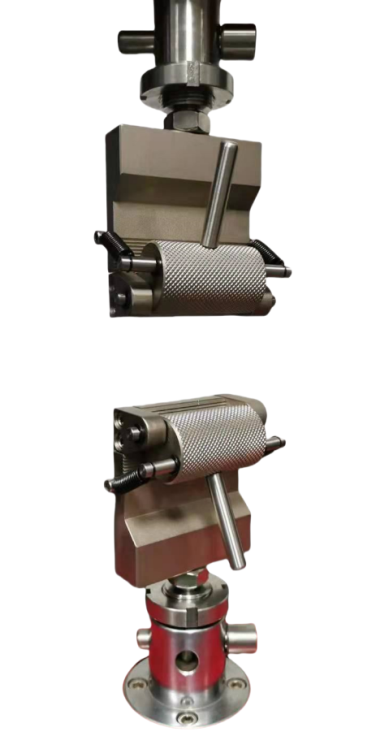

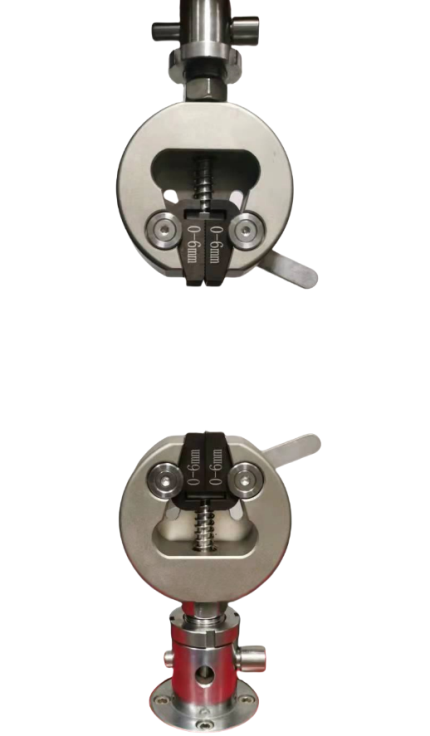

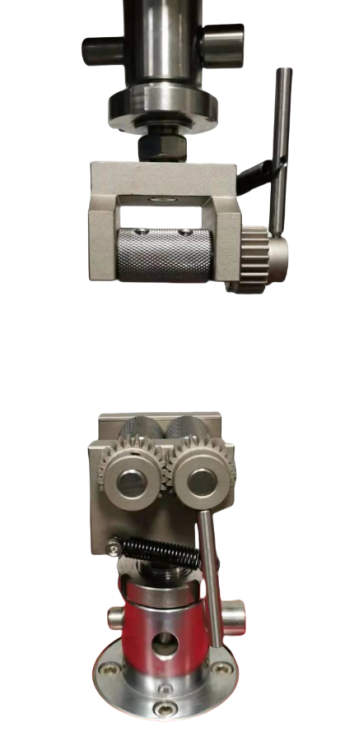

MS-2C

Dual eccentric wheel fixture

●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber, silicone, and wire sheaths. ●The width of the clamping piece is 35mm, and the clamping thickness is 4mm.

MS-2D

Hand held tensile

fixture

●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber and silicone. ●The clamping piece is 20*40mm, and it can hold a 5mm-thick specimen.

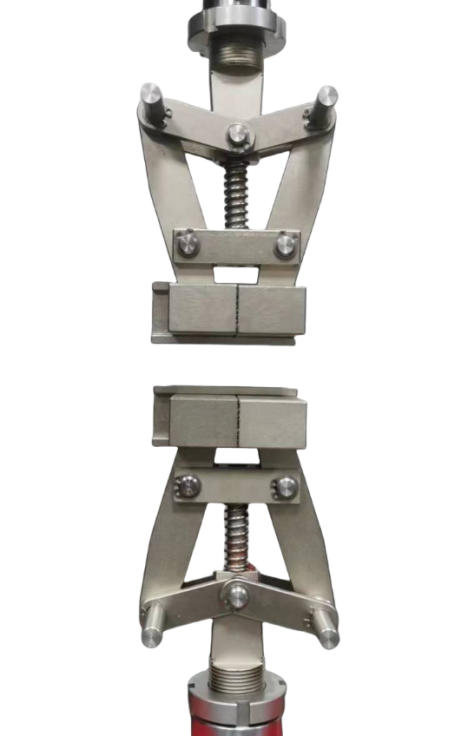

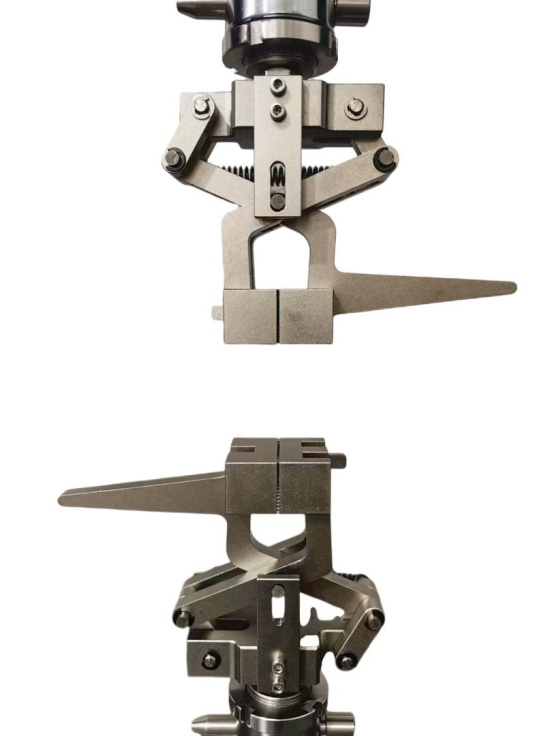

MS-2E

Lever

tensile

fixture

●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber and silicone. ●The clamping piece is 25*45mm, and it can hold a 5mm-thick specimen.

MS-2F

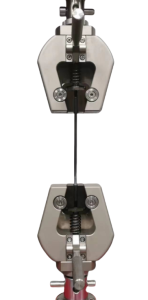

Reverse eccentric wheel fixture

●Self-clamping type. ●Used for tensile tests of wire sheaths and other soft rubber plastics. ●The width of the clamping piece is 30mm, and the clamping thickness is 5mm.

MS-2G

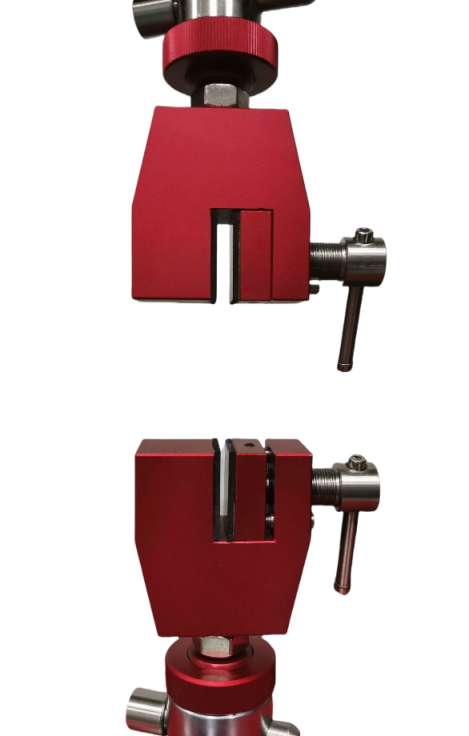

Powerful clamp fixture

●Clamping force adjustable type. ●Used for tensile and peeling tests of rubber, silicone, leather, shoe materials, etc. ●The clamping piece specifications are 40mm in width, 15mm in height, and have R1 arc teeth.

MS-3A

MS-3B

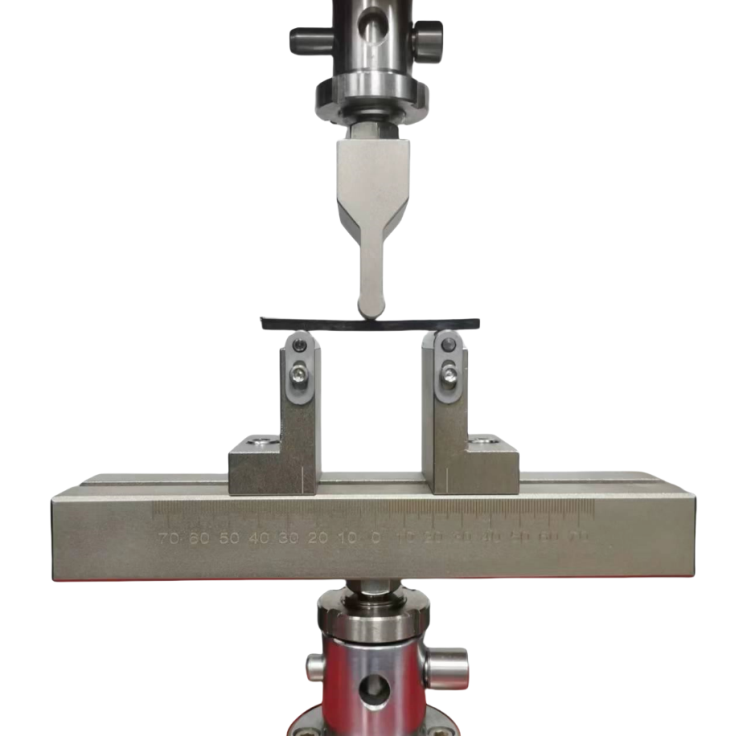

Three point bending fixture

●Used for three-point bending property tests of plastics. ●The short-span is 150mm (MS-3A), and the long-span is 250mm (MS-3B). ●The width of the pressure point and the fulcrum is 50mm. ●The conventional pressure point arc is R5mm, and the conventional fulcrum arc is R5mm. ●Optional fulcrum arc R2mm is available.

MS-3C

Three point bending fixture with dial indicator

●Used for three-point bending property tests of plastics or other materials. The span is 250mm. ●The width of the pressure point and the fulcrum is 50mm. ●The pressure point arc is R5mm, the fulcrum arc is R5mm, and the fulcrum arc is R2mm. ●It is equipped with 2 sets of fulcrums.

MS-3D

Glass four point bending fixture

●Used for four-point bending tests of glass materials. ●The width of the test specimen can be 200MM. The radius of the pressure point and the support point is R3. ●The upper fixture span is ≤ 100mm, and the lower fixture span is ≤ 150mm.

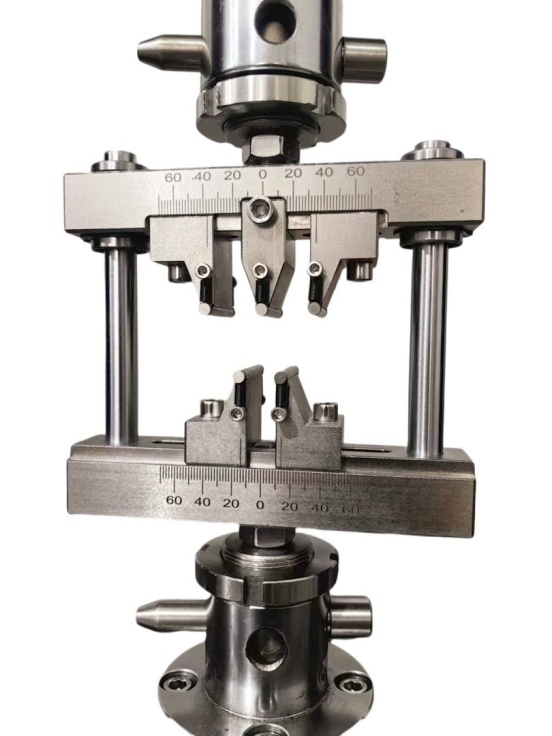

MS-3E

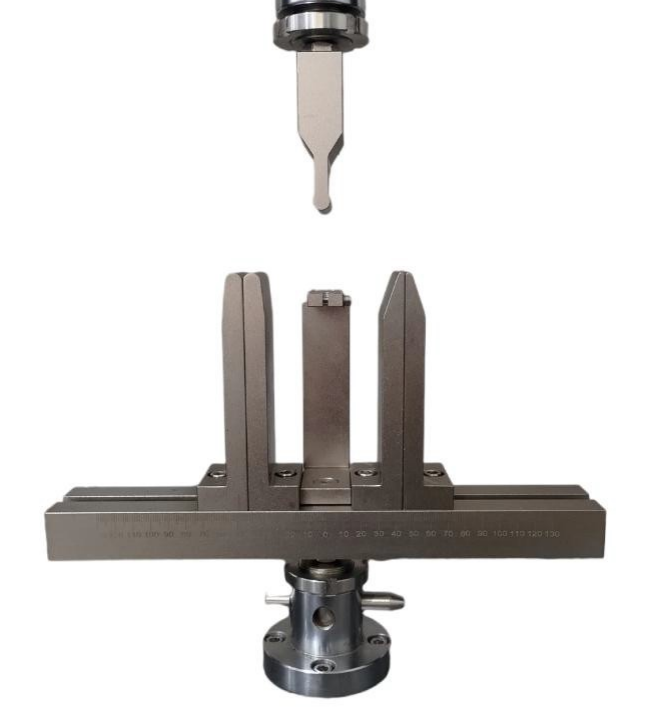

Ceramic three-point and four point bending fixture

●Used for three-point and four-point bending tests of fine ceramics. ●The span is adjustable. The radius of the pressure point and the fulcrum is R2.5mm, and the width is 30mm. ●It is equipped with a guiding device.

MS-4A

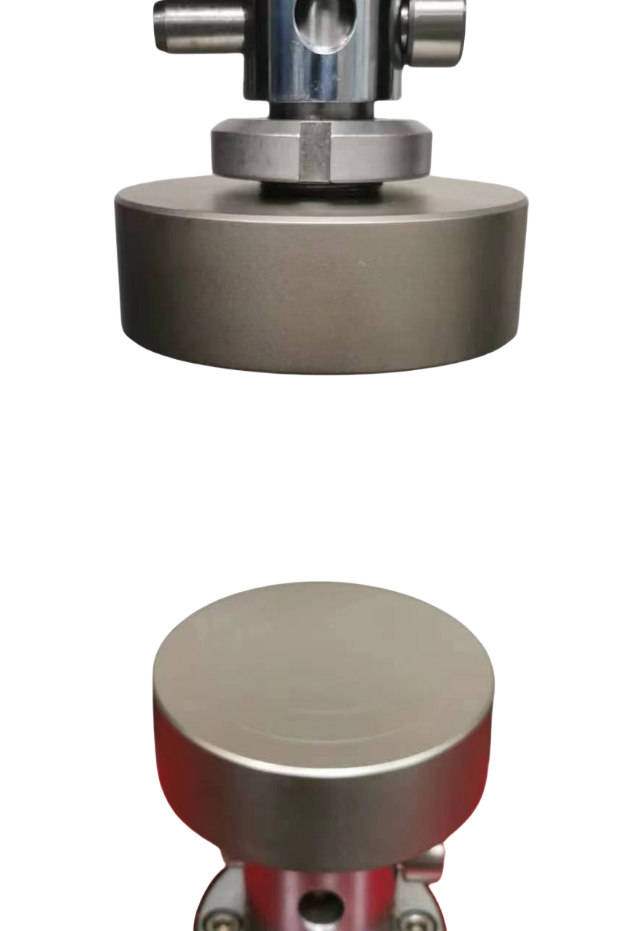

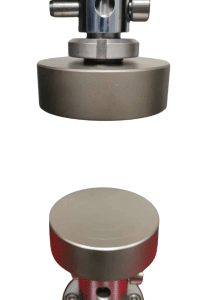

2T compression fixture

●Used for compressive strength tests of non-metallic materials or products with low hardness. ●The range is ≤ 20KN, and the diameter of the pressure plate is 120mm.

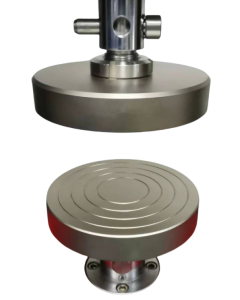

MS-4B

5T compression fixture

●Used for compressive strength tests of metals, ceramics, or materials with high hardness. ●The range is ≤ 50KN, the diameter of the pressure plate is 80mm, and the pressure plate is hardened.

MS-4C

10T compression fixture

●Used for compressive strength tests of metals, ceramics, or materials with high hardness. ●The range is ≤ 100KN, the diameter of the pressure plate is 60mm, and the pressure plate is hardened.

MS-4D

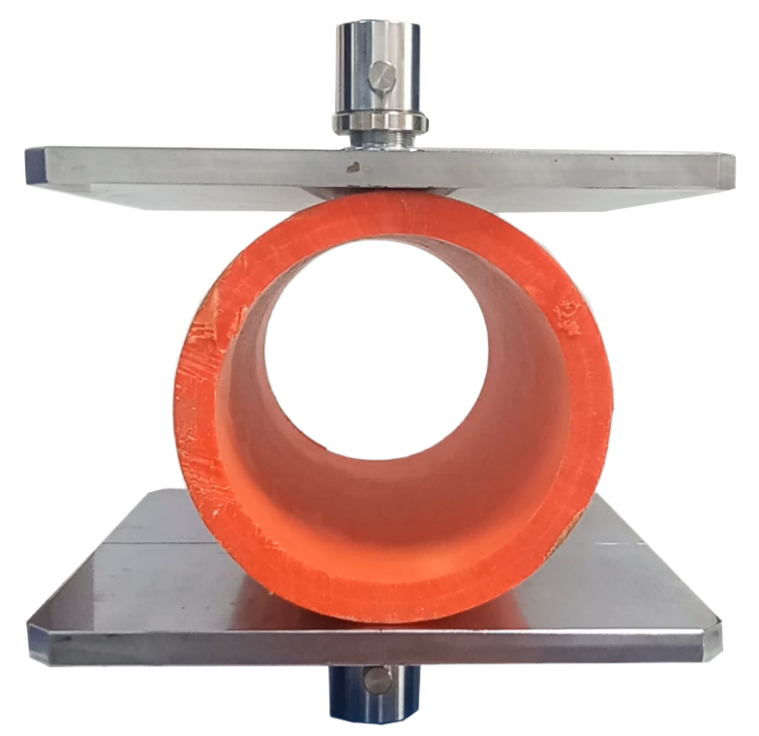

Ring stiffness fixture

●Used for ring stiffness tests and flattening tests of thermoplastic plastic pipes. ●The fixture area is 300*300mm.

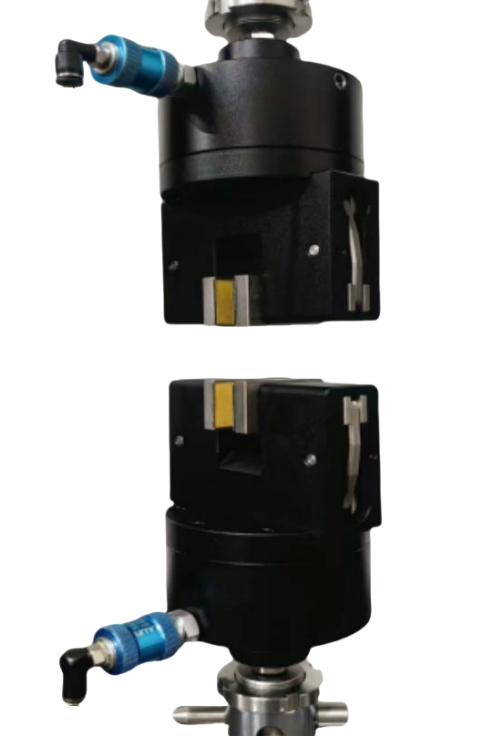

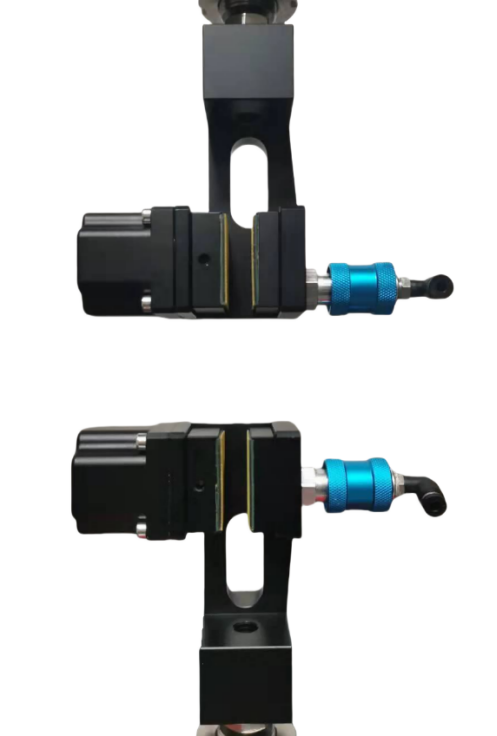

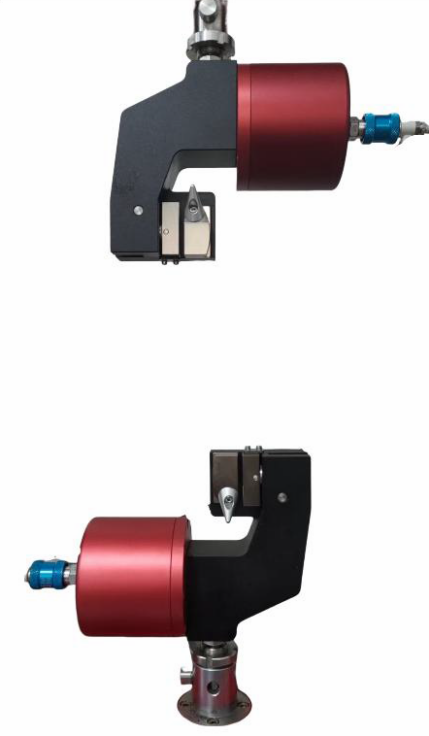

MS-5A

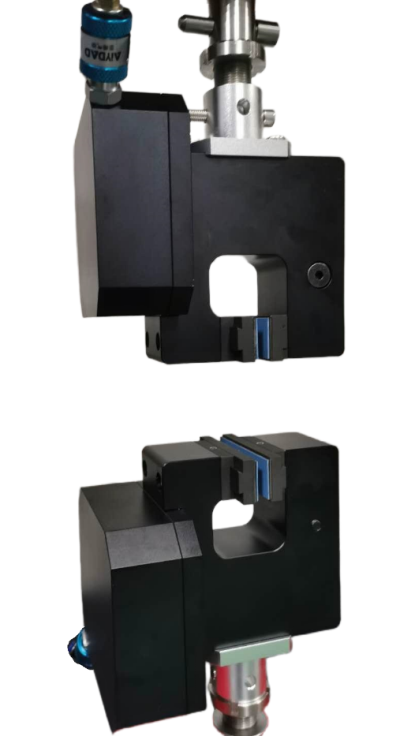

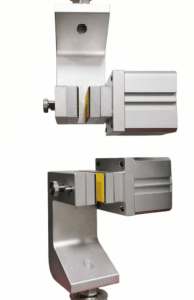

100N pneumatic fixture

●Used for tensile/tearing tests of films, papers, etc. ●The range is ≤ 100N. The clamping piece specifications are 30mm in width * 40mm in height (adhesive surface), and the clamping thickness is 5mm.

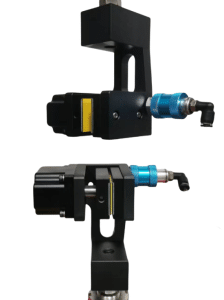

MS-5B

100N pneumatic fixture（widen type）

●Used for tensile/tearing tests of films, papers, etc. The range is ≤ 100N. ●The clamping piece specifications are 55mm in width * 30mm in height (adhesive surface), and the clamping thickness is 5mm.

MS-5C

500N pneumatic fixture

●Used for tensile/tearing tests of films, papers, etc. The range is ≤ 500N. ●The clamping piece specifications are 55mm in width * 30mm in height (adhesive surface), and the clamping thickness is 8mm.

MS-5D

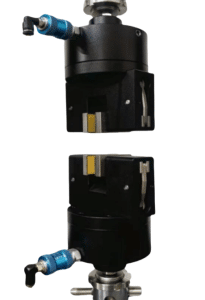

1KN pneumatic fixture

●Used for tensile/tearing tests of cloth, non-woven fabrics, and plastic films. The range is ≤ 1KN. ●The clamping piece specifications are 2525, 2550, 25*80mm, and it can hold specimens with a thickness of 8mm. ●The clamping pieces are available with adhesive surfaces and metal patterns.

MS-5E

2KN pneumatic fixture

●Used for tensile/tearing tests of cloth, non-woven fabrics, and plastic films. The range is ≤ 2KN. ●The clamping piece specifications are 2525, 2550, 25*80mm, and it can hold specimens with a thickness of 8mm. ●The clamping pieces are available with adhesive surfaces and metal patterns.

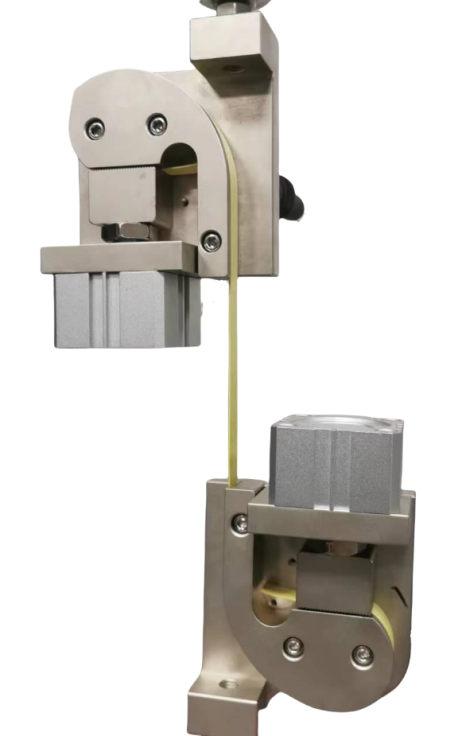

MS-5F

2KN Pneumatic yarn clamp

●Used for tensile tests of single-strand and multi-strand yarns. The range is ≤ 2KN.

MS-5G

5KN Pneumatic clamp

●Used for tensile/tearing tests of cloth, non-woven fabrics, leather, and plastic sheets. ●The range is ≤ 5KN. The clamping piece specifications are 2525, 2550, 25*80mm, and it can hold specimens with a thickness of 6mm. ●The clamping pieces are available with adhesive surfaces and metal patterns.

MS-5H

5KN Pneumatic packaging tape fixture

●Used for tensile tests of plastic-steel tapes and packing tapes. The range is ≤ 5KN.

MS-5J

50KN Pneumatic wedge fixture

●Pneumatically clamped. ●Used for tensile tests of hard plastics, metals, etc., with a range ≤ 50KN. Optional jaws: Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 20mm; V-shaped jaws: Φ4 - 9mm, Φ9 - 14mm, Φ14 - 21mm. ●The width of the clamping piece is 35mm. ●Flat jaws are used to hold flat specimens, and V-shaped jaws are used to hold round bar specimens.

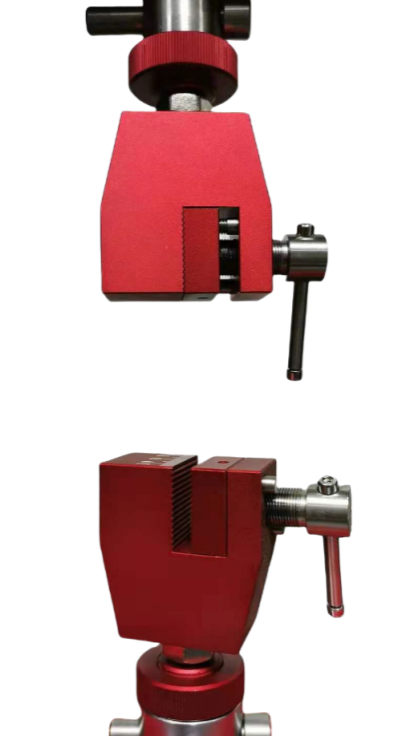

MS-6A

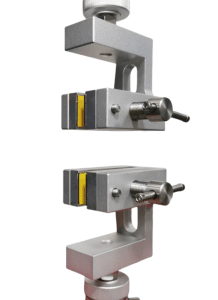

Aluminum material small fixture

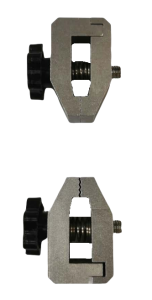

●Used for tensile tests of non-metallic materials such as plastic sheets, mask ear straps, and thin electronic wires. ●The range is ≤ 500N. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 6mm, and it has R1 arc teeth.

MS-6B

Aluminum material adhesive small fixture

●Used for tensile tests of materials such as plastic films and papers. ●The range is ≤ 200N. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 6mm, and the clamping piece is adhesive.

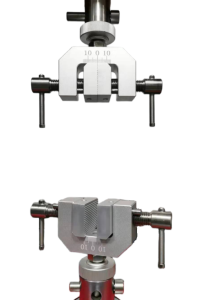

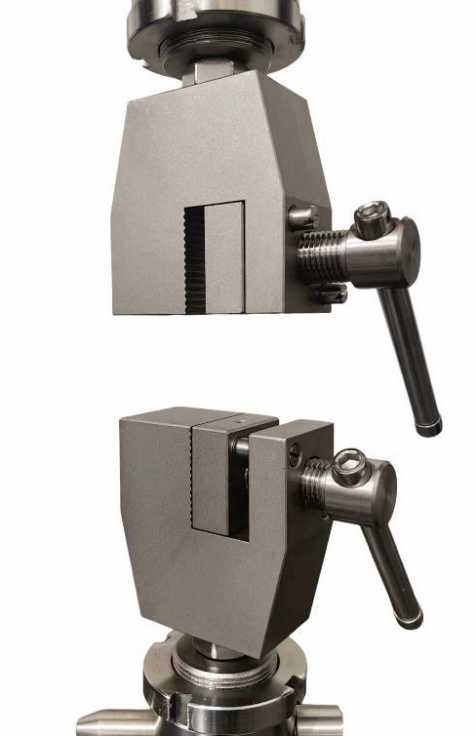

MS-6C

Steel material small fixture

●Used for tensile tests of materials such as plastic sheets and thin electronic wires. ●The range is ≤ 1KN. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 6mm, and it has R1 arc teeth.

MS-6D

New adhesive aluminum fixture

●Used for tensile tests of plastic films, papers, copper foils, aluminum foils, etc. ●The range is ≤ 500N. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 5mm, and it has adhesive flat jaws.

MS-6E

New adhesive aluminum fixture（widen type）

●Used for tensile tests of plastic films, papers, copper foils, aluminum foils, etc.

●The range is ≤ 500N.

●The clamping piece specifications are 65mm in width, 25mm in height, the clamping thickness is 5mm, and it has adhesive flat jaws.

MS-6F

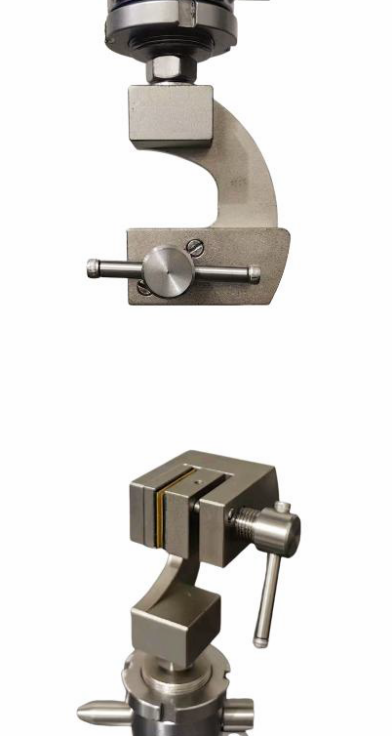

C-type adhesive steel fixture

●Used for tensile tests of plastic films, papers, copper foils, aluminum foils, etc. ●The range is ≤ 1KN. ●The clamping piece specifications are 32mm in width, 25mm in height, the clamping thickness is 5mm, and it has adhesive flat jaws.

MS-7A

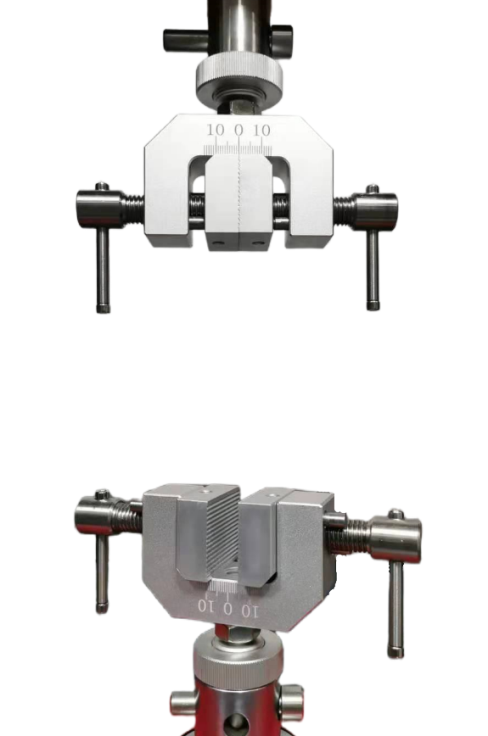

Bilateral adjustable aluminum fixture

(Adhesive tape peeled off at 180 °)

●Used for tensile tests of papers, films, soft plastics, etc., and 180° peeling tests of adhesive tapes. ●The range is ≤ 1KN. ●The clamping piece specifications are 30×40mm, the clamping thickness is 13mm, and it has R1 arc teeth.

MS-7B

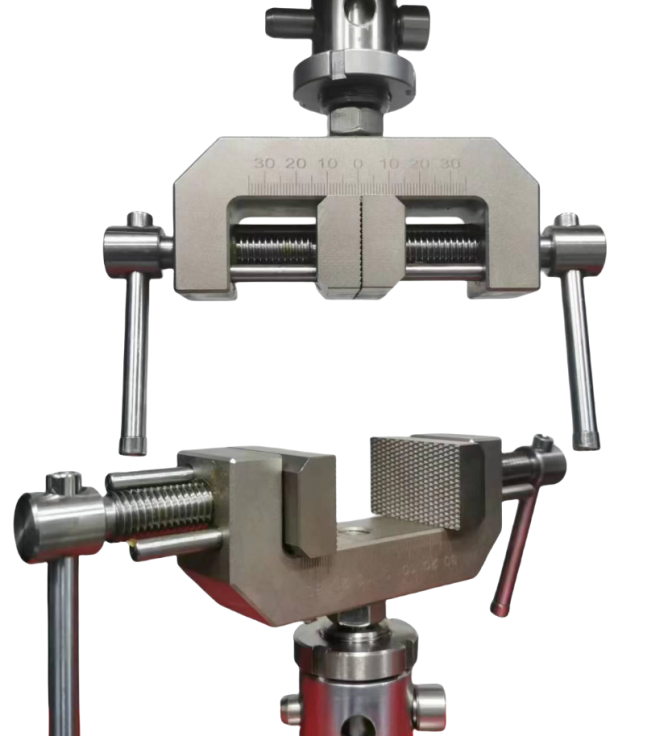

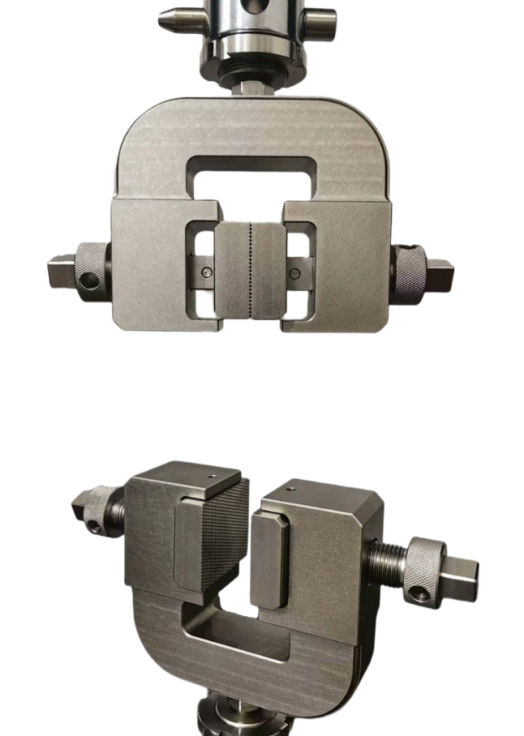

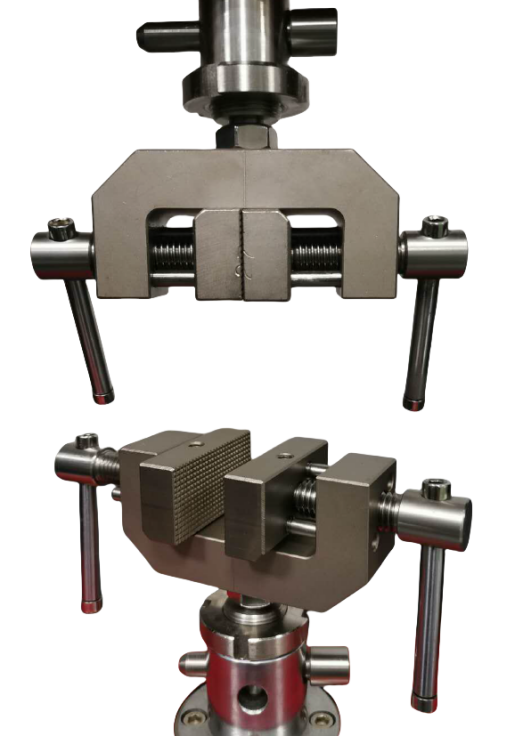

Bilateral adjustable steel fixture

●Used for tensile shear tests of adhesives and tensile tests of other materials. ●The range is ≤ 5KN. ●The clamping piece is 55mm wide and 30mm high. ●It can hold specimens with a thickness of 30mm. ●The tooth shape is diamond pattern.

MS-7C

Bilateral adjustable steel fixture（lengthening type）

●Used for tensile shear tests of adhesives, tensile tests of composite boards, and tensile tests of other materials. ●The range is ≤ 5KN. ●The clamping piece is 55mm wide and 30mm high. ●It can hold specimens with a thickness of 50mm. ●The tooth shape is reverse serrated with reticulated pattern.

MS-7D

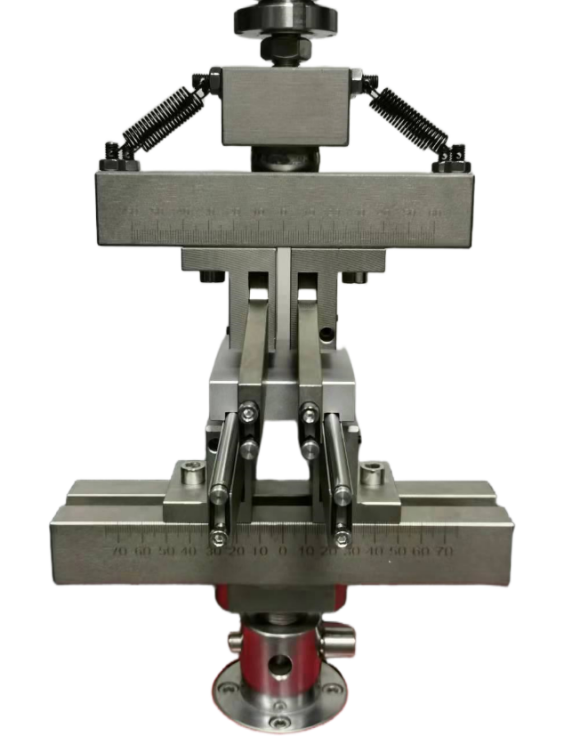

Stretching and shearing fixture

●Used for tensile shear tests of adhesives, tensile tests of composite boards, and tensile tests of other materials. ●The range is ≤ 10KN. ●The clamping piece is 52mm wide and 45mm high. ●It can hold specimens with a thickness of 30mm. ●The tooth shape is reverse serrated with reticulated pattern.

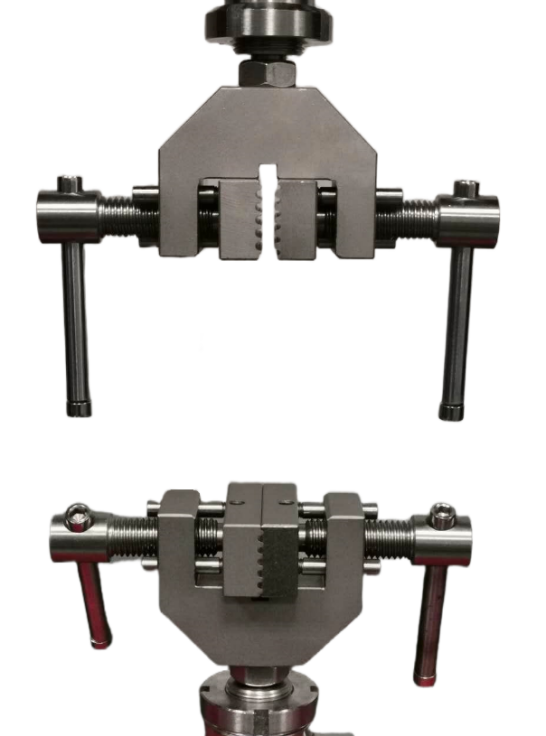

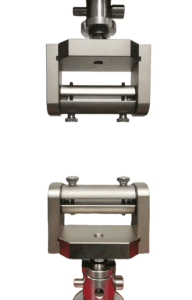

MS-8A

Fabric and leather tensile fixture

●Used for tensile tests of fabrics, melt - blown fabrics, leathers, etc. ●The clamping piece specifications are 55mm in width and 25mm in height. ●It can hold specimens with a thickness of 18mm. ●The tooth shape is R2 arc.

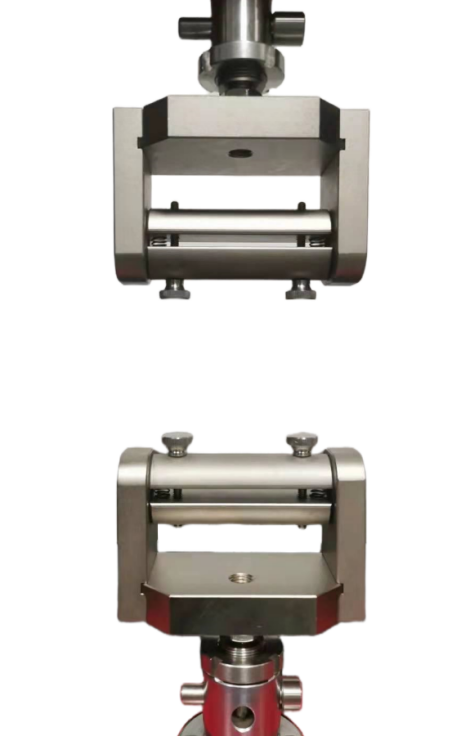

MS-8B

Non metallic large ripple fixture

●Used for tensile tests of soft plastics, PVC, wire sheaths, woven bags, fabrics, etc. ●It can hold specimens with a thickness of 10mm and has R3 arc teeth. ●The clamping piece is 55mm wide and 30mm high.

MS-8C

Non metallic large ripple fixture（widen type）

●Used for tensile tests of soft plastics, PVC, woven bags, fabrics, etc. ●It can hold specimens with a thickness of 10mm and has R3 arc teeth. ●The clamping piece is 105mm wide and 30mm high.

HT-9A

MS-9A

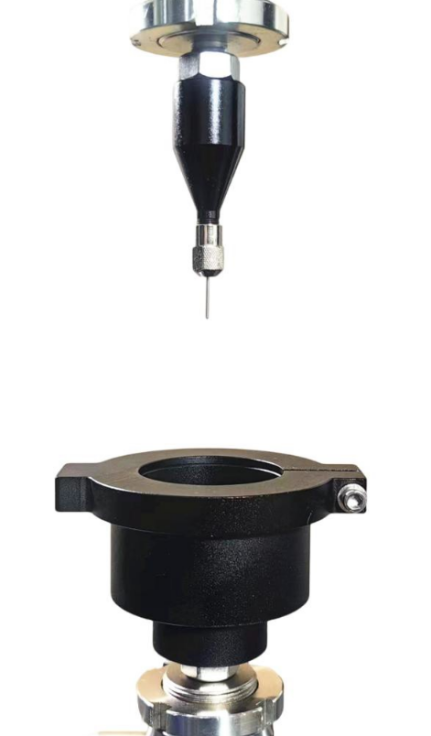

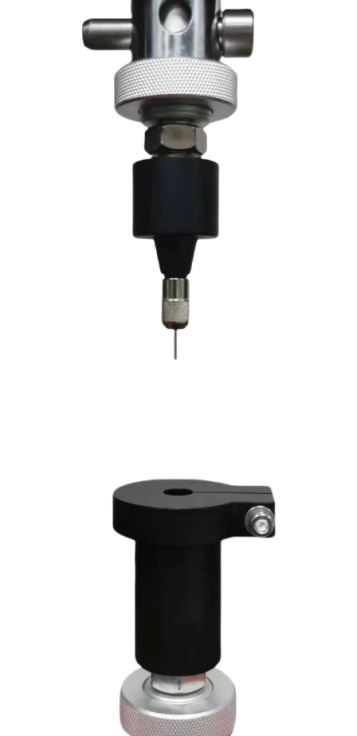

薄膜穿刺夹具（大孔）Thin film puncture fixture (large hole)

●Used for puncture resistance tests of films, papers, etc. ●The needle diameter is 1.0mm. ●The inner hole of the lower fixture is 50mm.

MS-9B

Thin film puncture fixture (small hole)

●Used for puncture resistance tests of films, papers, etc. ●The needle diameter is 1.0mm. ●The inner hole of the lower fixture is 10mm. ●Suitable for samples with a small area.

MS-9C

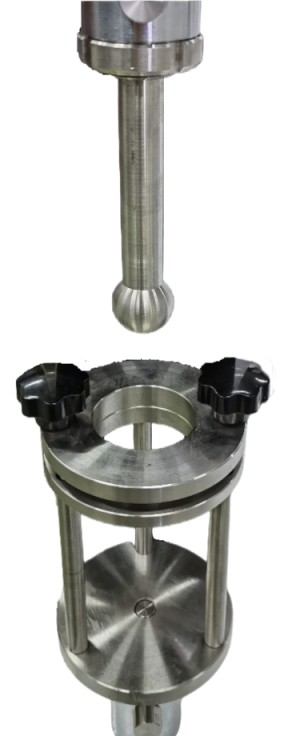

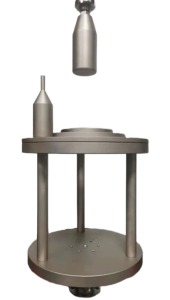

Cloth steel ball breaking fixture

●Used for steel ball bursting strength tests of textiles. ●The diameter of the steel ball of the upper fixture can be selected as 25mm or 38mm. ●The inner hole of the lower fixture is 45mm.

MS-9D

Geotextile top piercing fixture

●Used for top bursting and piercing tests of geotextiles. ●The diameter of the upper fixture for top bursting is 50mm, and the inner hole diameter of the lower fixture for top bursting is 150mm. ●The diameter of the upper fixture for piercing is 8mm, and the inner hole diameter of the lower fixture for piercing is 45mm. ●The height of the support rod of the lower fixture is 150mm.

MS-10A

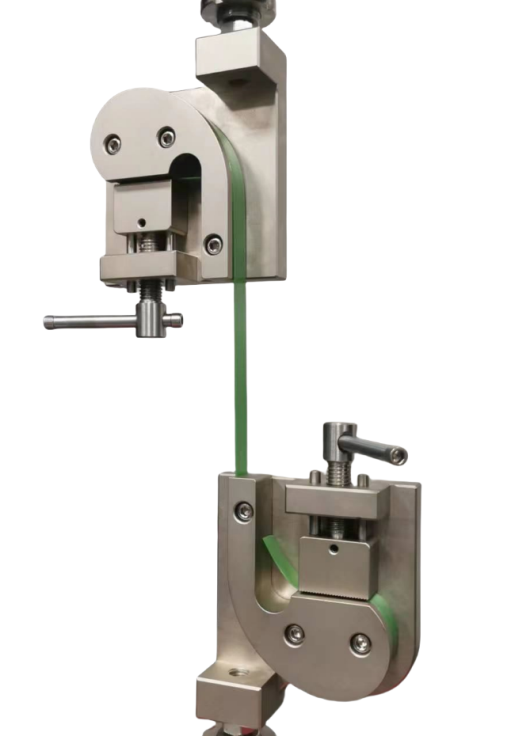

20KN flat belt tensile fixture

●Used for tensile tests of soft braided belts, packing belts, etc. ●The range is ≤ 20KN. ●It can hold belts with a width of 50mm and a thickness of 8mm.

MS-10B

50KN flat belt tensile fixture

●Used for tensile tests of soft braided belts, packing belts, etc. ●The range is ≤ 50KN. ●It can hold belts with a width of 100mm and a thickness of 8mm.

MS-10C

Package tape tensile fixture

●Used for tensile tests of plastic - steel tapes and plastic packing tapes. ●The range is ≤ 5KN. ●It can hold tapes with a width of 22mm and a thickness of 2mm.

MS-11A

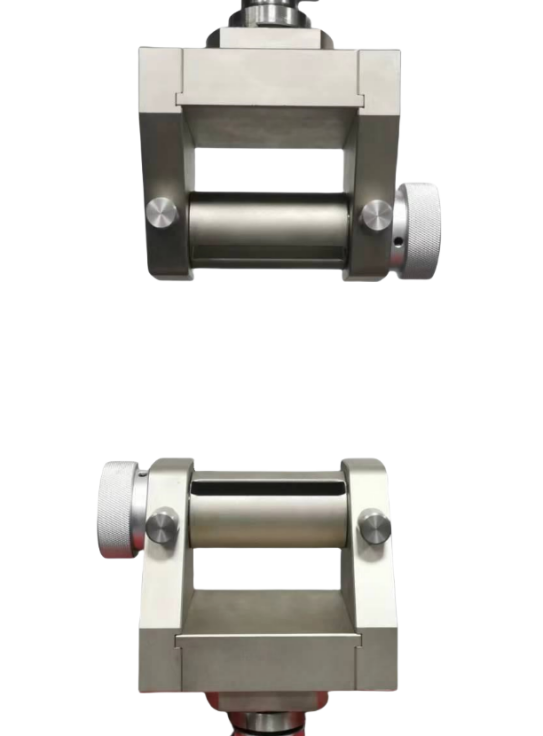

Coiling tensile fixture

●Used for tensile tests of non - metallic thin wires such as fishing lines and badminton racket strings. ●It can hold wires with a diameter of 3mm, and the diameter of the winding wheel is 30mm.

MS-11B

Non metallic wire tensile fixture

●Used for tensile tests of non-metallic thin wires. ●The range is ≤ 1KN. ●It can hold wires with a diameter of 3mm, and the diameter of the winding wheel is 30mm.

MS-11C

Metal thin wire tensile

fixture

●Used for tensile tests of thin metal wires. ●The range is ≤ 5KN. ●It can hold wires with a diameter of 4mm.

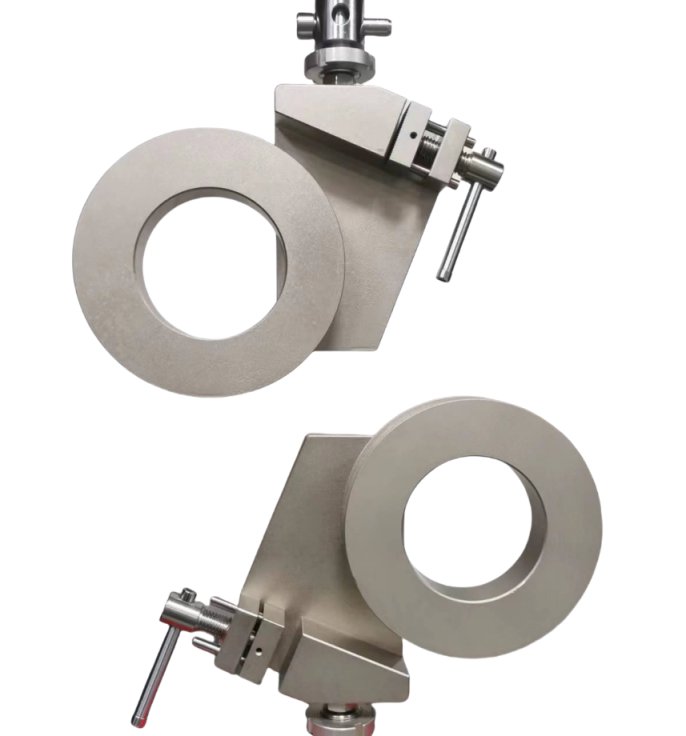

MS-11D

braided rope tensile fixture

●Used for tensile tests of braided ropes. ●The range is ≤ 20KN. ●The diameter of the winding wheel is 80mm, and the tooth shape of the clamping piece is R3 arc teeth.

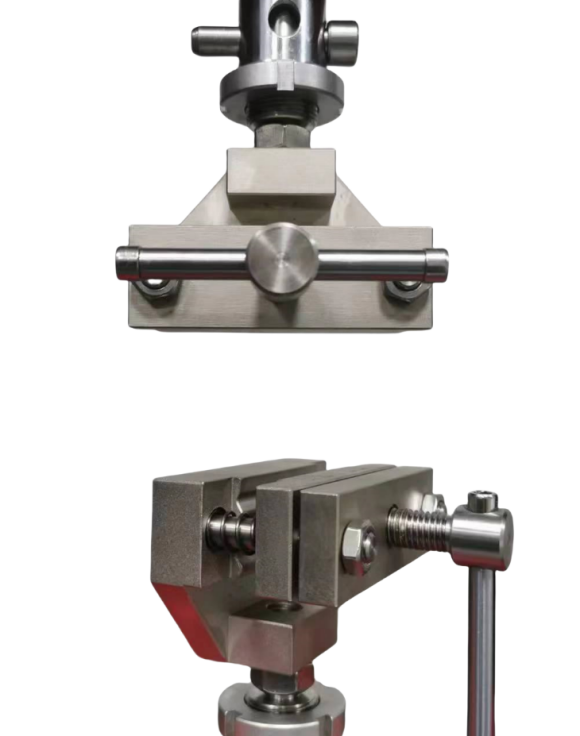

MS-12A

90 degree peeling fixture

●Used for 90-degree peeling tests of adhesive tapes and adhesive papers. ●The steel plate is 50mm wide and 150mm long, and the quantity can be selected. ●The surface of the steel plate is mirror-finished.

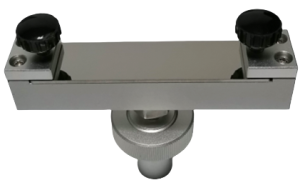

MS-12B

Circular initial adhesion fixture

●Used to test the ring initial adhesion of adhesive papers, adhesive tapes, and self-adhesive products. ●The width is 24mm. ●It is equipped with one mirror-finished steel plate. ●It needs to be used in conjunction with the upper fixture.

MS-12C

Floating roller stripping fixture

●Used for testing the peeling strength of high-strength adhesives. ●The diameter of the upper fixture roller is 25mm, and the width of the clamped specimen is 30mm. ●Refer to GB/T 7122.

MS-12D

Roller peeling fixture

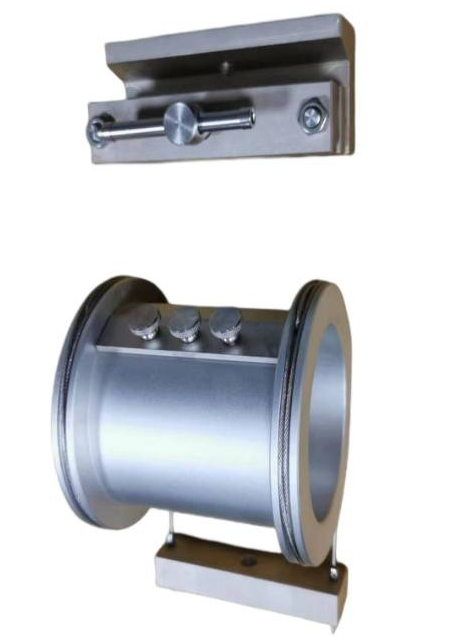

●Used for peeling tests of the adhesion force of composite boards. ●The diameter of the drum is 100mm, the width is 100mm, and the diameter of the convex circle is 125mm.

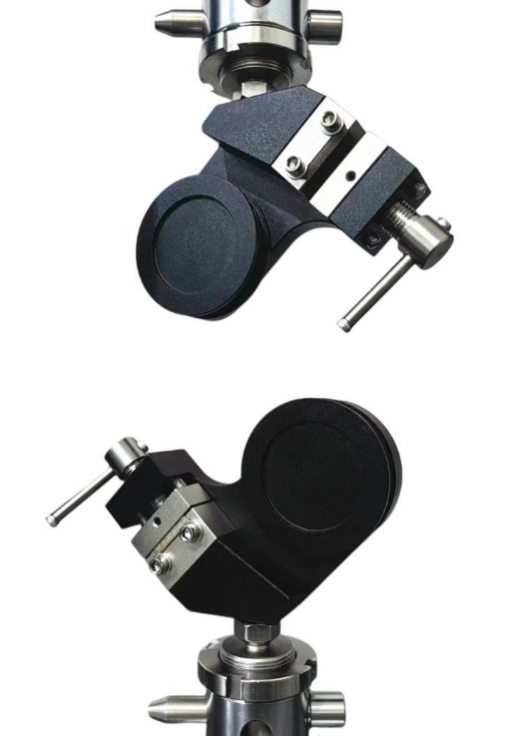

MS-13A

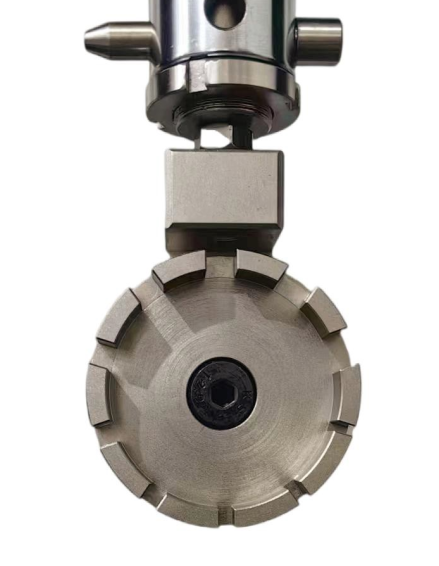

Terminal tensile

turntable fixture

●Used for testing the pulling force of terminals that are easier to hold and larger than the wires. ●Suitable for wire diameters of 3 - 12mm. ●The outer diameter of the turntable is 95mm and it can rotate. ●It needs to be used in conjunction with the lower fixture.

MS-13B

Large cable terminal tensile fixture

●Used for testing the pulling force of terminals. ●The maximum wire diameter is 32mm, and the fixture is adjustable.

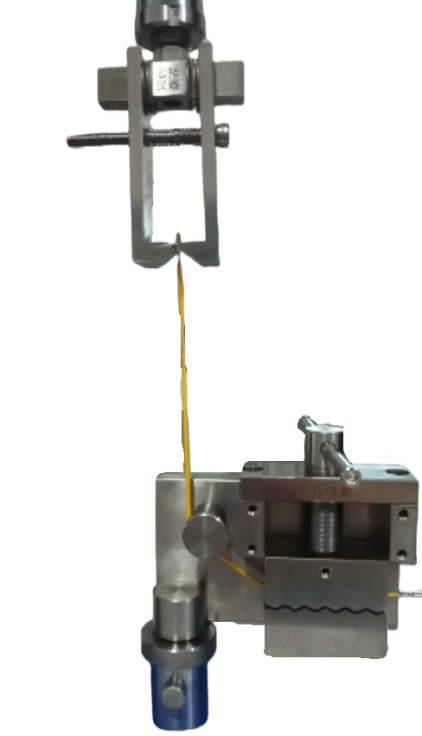

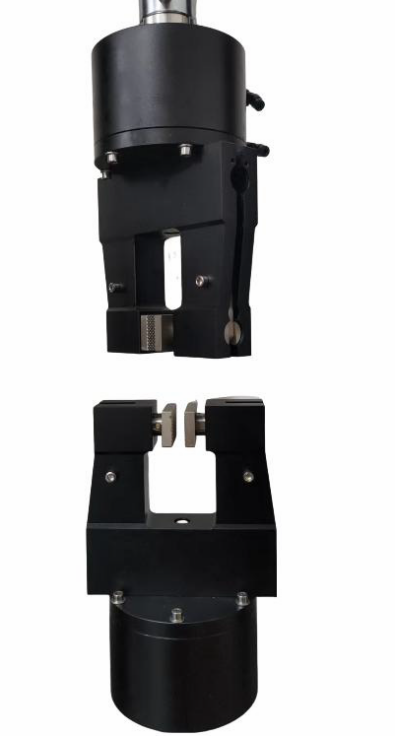

MS-13C

Micro sharp beak tensile fixture

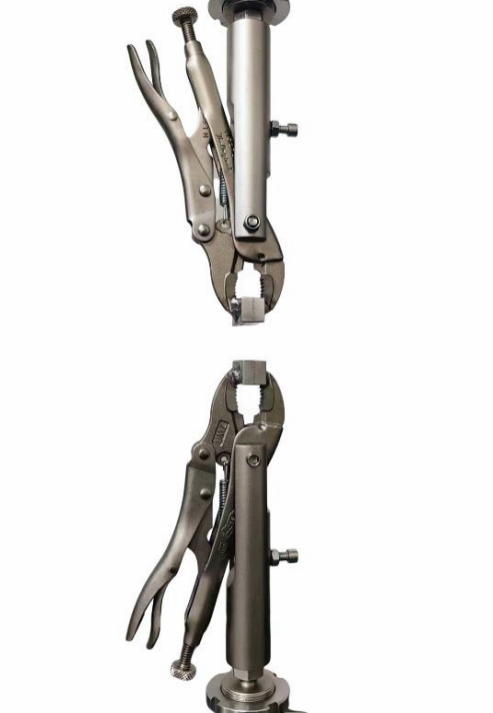

●Used for testing the pulling force of thin wires, terminals, and solder joints. ●The width of the jaw is 20MM, and the thickness of the fixture is 3mm.

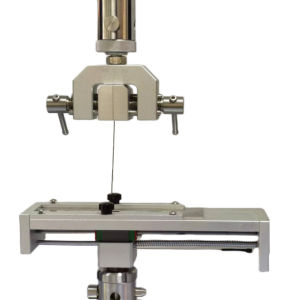

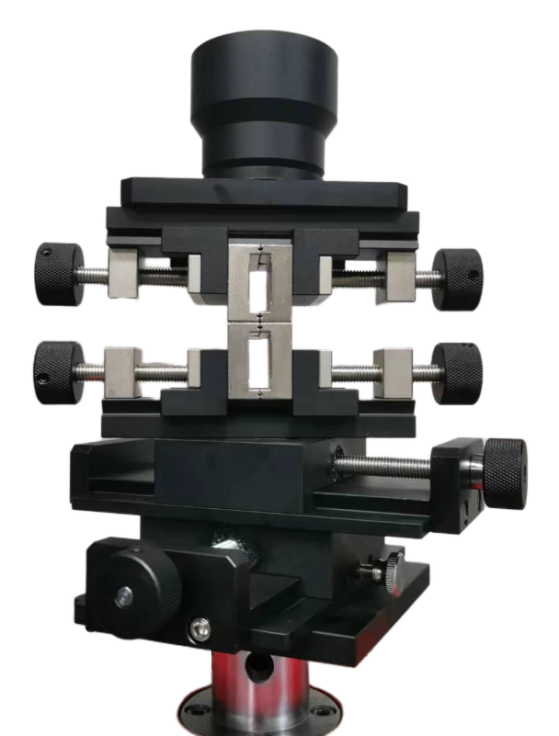

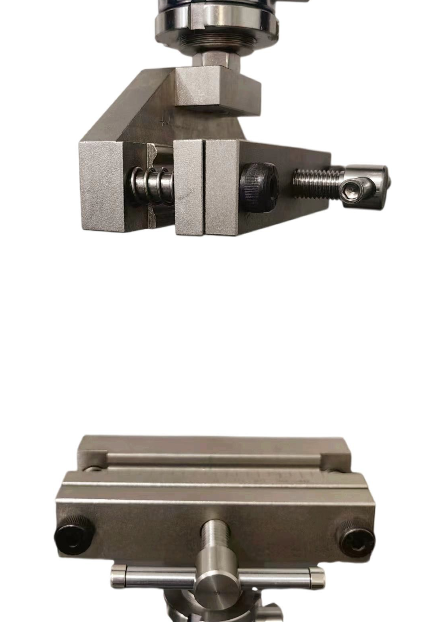

MS-13D

Insertion and extraction force fixture

●Used for testing the insertion and extraction forces of terminals, connectors, USB plugs, etc. ●The clamping piece is 50mm wide and 30mm high, and it can hold specimens with a thickness of 45mm. ●The lower fixture is equipped with a cross table.

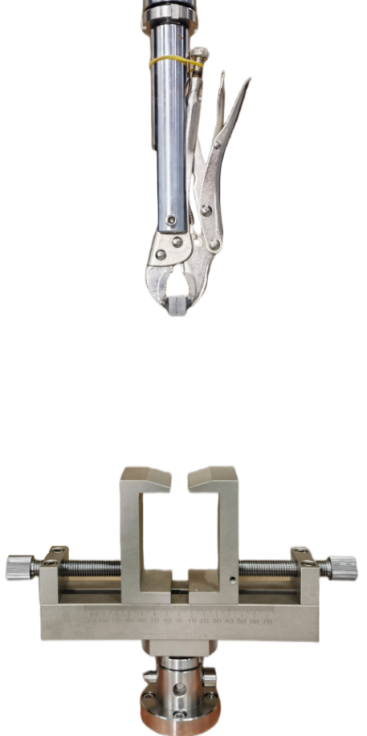

MS-13E

Connector tension fixture

●Used for testing the pulling force between wires and connectors. ●The width of the clamping piece of the lower fixture is 50mm, the inner height is 80mm, and the maximum opening is 80mm.

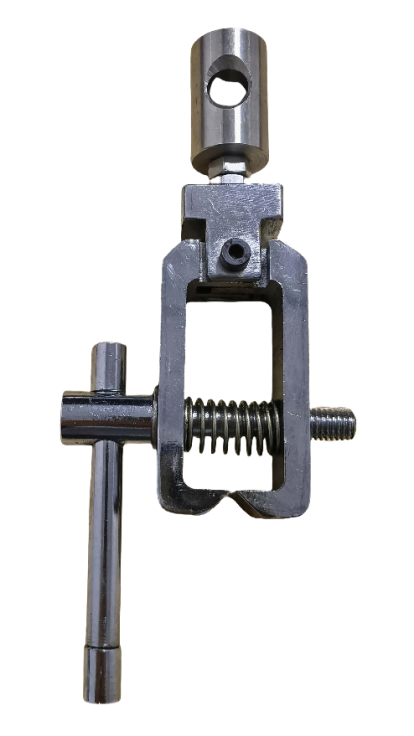

MS-13F

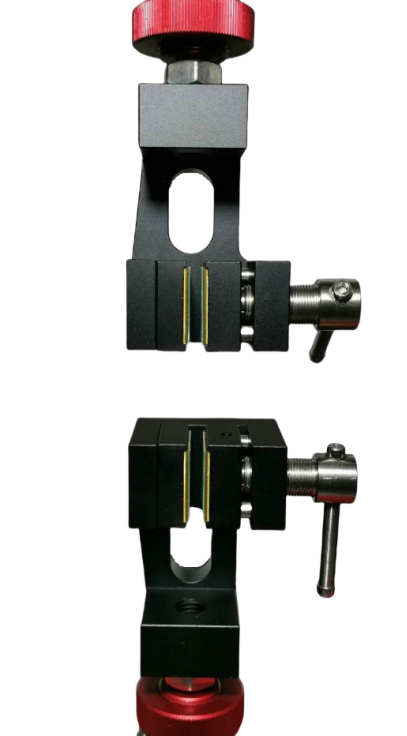

Adjustable small terminal tensile fixture

●Used for testing the pulling force of small terminals. ●The opening is adjustable, and the maximum opening is 8mm. ●It needs to be used in conjunction with the lower fixture.

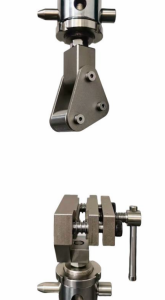

MS-14A

Leather double-sided tearing fixture

●Used for double-sided tearing tests of leather specimens. ●The width of the hanging buckle is 10mm.

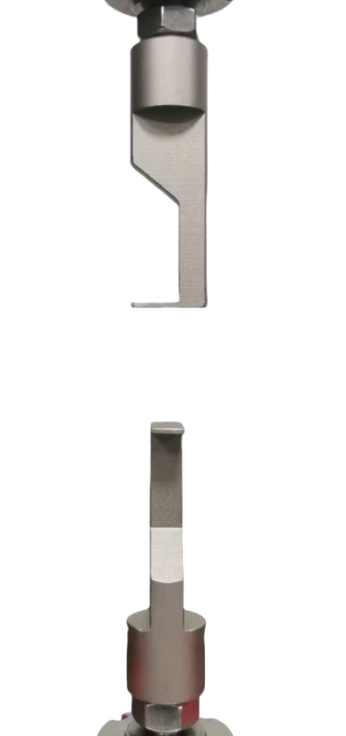

MS-15A

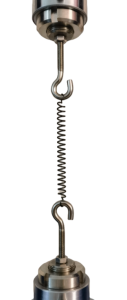

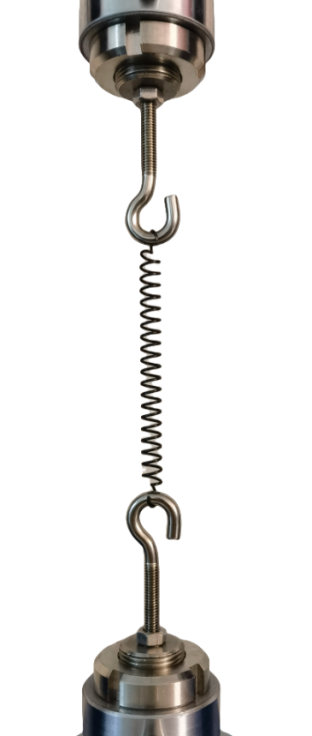

Bending hook tensile fixture

●Used for testing the pulling force of products such as tension springs. ●The hook diameter can be selected as 6mm or 8mm.
