Cut-off Wheel

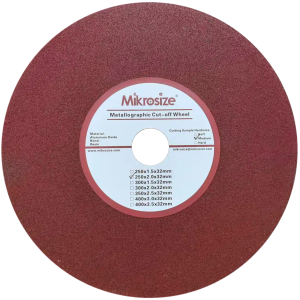

Application: For cutting extremely hard ferrous metals(HRC>50), like special ductile cast iron, bearing steel, alloy structural steel, high-speed steel, high vanadium high-speed steel, stainless steel, alloy steel, carbon steel, and high hardness easy sintering workpiece.

Package: 10PCS

Application: For cutting Medium hard ferrous metals(HRC 38~50), like ductile cast iron, malleable cast iron, high phosphorus cast iron, alloy cast iron, bronze and unhardened steel, etc.

Package: 10PCS

Application: For cutting soft ferrous metals(HRC<38), like soft metal parts copper, aluminum and alloy.

Package: 10PCS

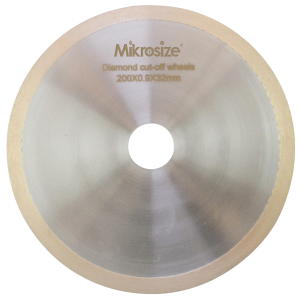

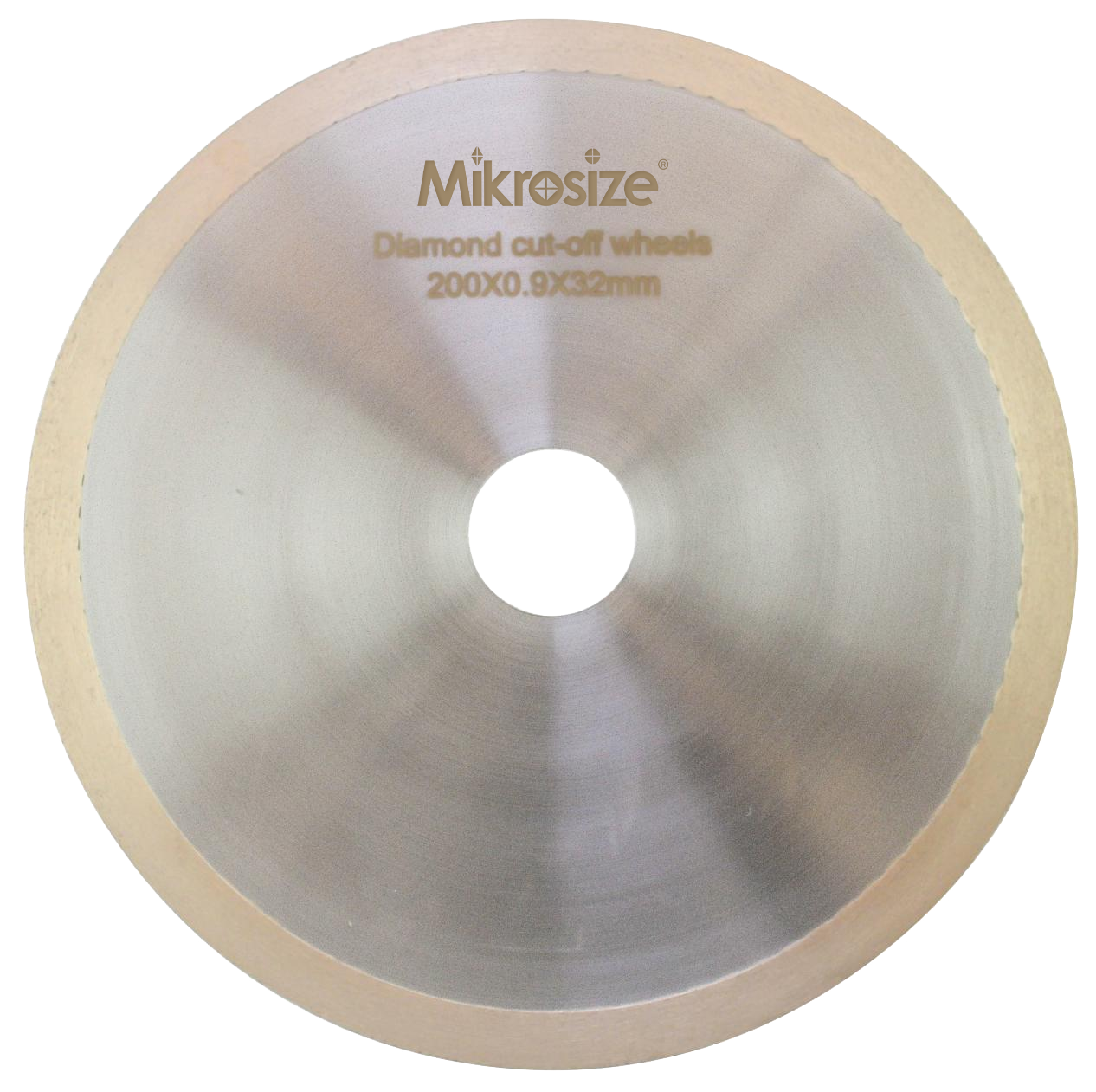

Application: For very hard or brittle materials, glass ceramics, stone. This series of cutting precision is relatively high, diamond cutting blades can cut ultra-hard materials such as cemented carbide, ceramics and so on.

Features: The saw blade is made of edge sintering technology, with high accuracy and long blade life.

Package: 10PCS

Package: 10PCS

Non-Ferrous Metals

AO30 Cut Off Wheels

Stainless Steel

AO50 Cut Off Wheels

Soft Ferrous metals

AO60 Cut Off Wheels

Ductile Cast Iron

DM Diamond Wafering

Malleable Cast Iron

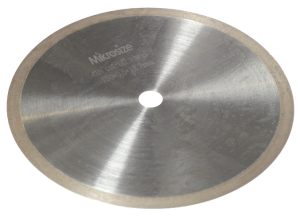

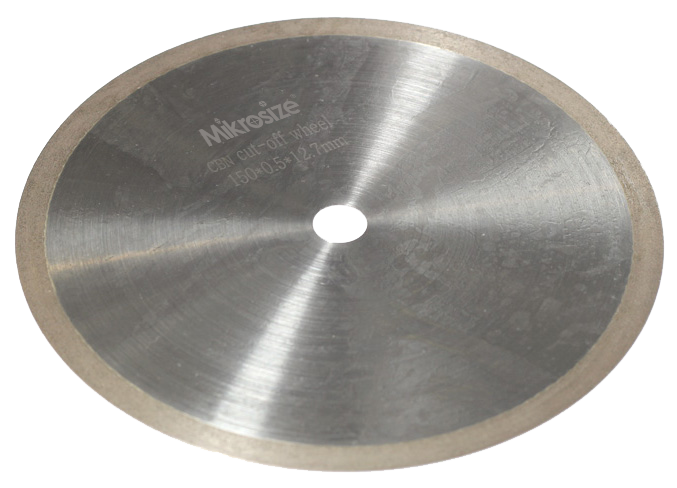

CBN Wafering Blades

Alloy Cast Iron

Bronze

Tungsten Carbide Steels

Hardened steel

Carburised steel

Hard Ferrous metals

High hardness steel

Ceramics

Silicon carbide glass

Brittle materials

Non-metallic Minerals

Sintered materials

15

25

35

45

55

HRC

Most wafer cutting is done at speeds between 50 rpm and 5000 rpm with loads varying from 10-1000 grams.Generally, harder specimens are cut at higher loads and speeds (e.g, ceramics and minerals) and more brittle specimens are cut at lower loads and speeds (e.g, electronic silicon substrates). It is interesting to note that the cutting efficiency for sectioning hard/tough ceramics improves at higher speeds and higher loads.
