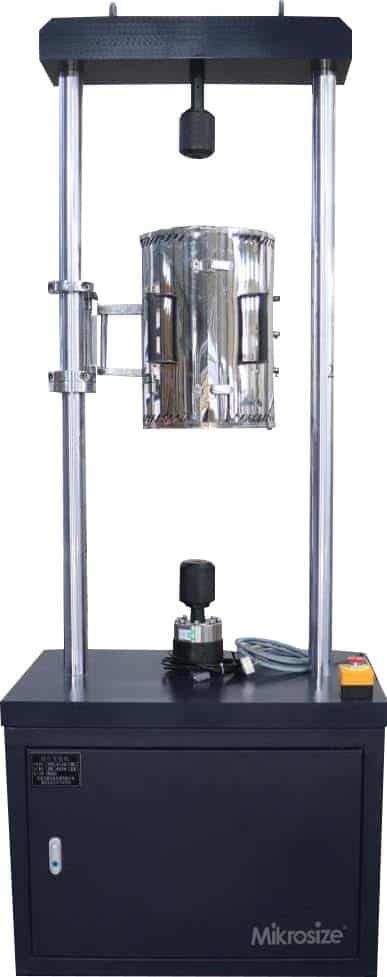

CTM-200 Electronic Creep Tesing Machine

Product Feature：

The Electronic Creep and Rupture Testing Machine is a test instrument managed and controlled by computer. The testing machine is equipped with a high-stability, high-precision servo loading system.
It can perform standard high-temperature creep tests, standard stress rupture tests, high-temperature tensile tests, stress relaxation tests, and cyclic loading tests on bar and plate specimens of high-temperature alloys, titanium alloys, other ferrous metals, and non-ferrous metals at temperatures ranging from 200°C to 1100°C.
It features comprehensive functions, intuitive display, convenient maintenance, and elegant appearance. The complete machine consists of the host frame, electrical cabinet, and distributed control system.

Product Application：

The design, manufacture, inspection, and use of the testing machine comply with national standards and relevant industry standards:
Compliant with GB 2611-2007 “General Technical Requirements for Testing Machines”
Compliant with GB/T 2039-2012 “Metallic Materials—Uniaxial Creep Testing Method in Tension”
GB/T 11546.1-2008

Technical Specifications

Maximum Loading Capacity	200 kN
Test Force Accuracy	Indicated error ≤ ±0.5%
Test Force Measurement Range	2–200 kN
Test Force Resolution	1/500,000 of maximum test force (constant resolution throughout full range)
Test Force Control Fluctuation	≤ ±0.5%
Maximum Stroke of Lower Pull Rod	≥ 200 mm
Lower Pull Rod Moving Speed Range	0.001–100 mm/min (stepless variable speed, arbitrarily settable)
Loading Accuracy	Indicated error ≤ ±0.5%
Creep Displacement Accuracy	0.001 mm
Eccentricity of Upper and Lower Grips	≤ 8%
Deformation Measurement Mode	Deformation measurement range 0–12 mm
Deformation Measurement Resolution	0.001 mm
Electric Loading Mode	Test load applied steplessly, loading rate controllable
Servo Motor Power	1.0 kW
Overall Dimensions of Host Frame	1100 × 600 × 2200 mm
Specimen Center Height from Ground	1450 mm; compliant with ergonomic principles
Ambient Temperature	Room temperature
Ambient Relative Humidity	50%
Altitude	Less than 200 m
Coaxiality	Less than or equal to 8.0%

Item	Quantity
Host Frame	1 unit
Servo Motor	1 unit
Driver	1 set
Ball Screw Pair (Taiwan)	1 set
Screw Loading Mechanism	1 set
Computer	1 unit
Printer (HP A4)	1 unit
Control System and Cables	1 set
Chinese Dedicated Test Software under Windows Platform	1 set
High-Precision Load Cell	1 piece
Grating Deformation Sensor	2 pieces
Technical Documents (User Manual, Certificate of Conformity, Packing List)	1 set
