Bench Center With Straightness Measurement

The machine is a detection type instrument that integrates straightness, parallelism, and perpendicularity into three lines after improving the manufacturing process of mechanical sliding tables.
The top is made of tool steel, with long wear resistance, long service life, and high accuracy. There are two operation modes for the deflection inspection instrument: the first is to use a wrench to press the tip back and clamp the workpiece to be inspected, the second is to install a handwheel behind the tip, when the tip has lifted the workpiece, use a lock buckle to lock the tip and use a dial gauge or micrometer to check the accuracy of the workpiece.

This machine is mainly used to detect the radial, circular, and end face circular of shaft and disk parts. The product design is novel, beautiful, and has high precision, making it extremely convenient to operate.

Technical Specifications

Parallelism of two centers to the guide surface	4um
Accuracy	2um
Accuracy of straightness measurement	0.02um

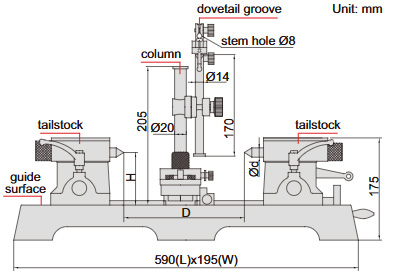

Center height (H)	90mm
Distance between two centers(D)	300mm
Diameter of center (Ød)	18mm
Taper of center	MT2
Weight	38kg
Load	25kg
